MOBILE CARPENTRY TRAILER

This is the trailer the day it came home. 6×12 single-axle enclosed cargo trailer, white aluminum skin, factory diamond-plate ramp door at the rear with a side man-door on the curb side, three LED roof clearance lights, one 12V dome bulb inside, factory rubber + diamond-plate floor mat. CA plate 4BM6108. Hitched behind a green Toyota Tacoma — the same truck that will pull it to every site for the next eight years.

It sat for three months before the first cut. That wait is the most important part of the build. A trailer is a box of opportunity that punishes hasty decisions — drill the wrong stud, mount the saw at the wrong height, run the wires in the wrong order, and you're paying for it for the next decade. So I spent the time. Three sets of sketches, two material lists, one rebuild of the plan, and then it was time.

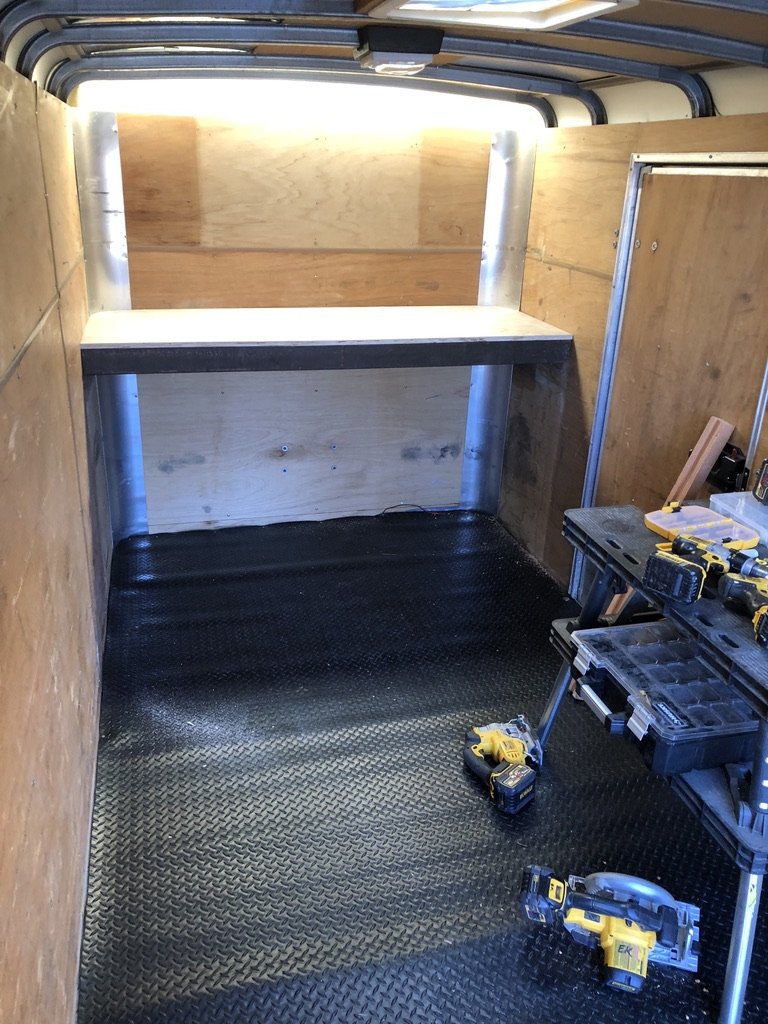

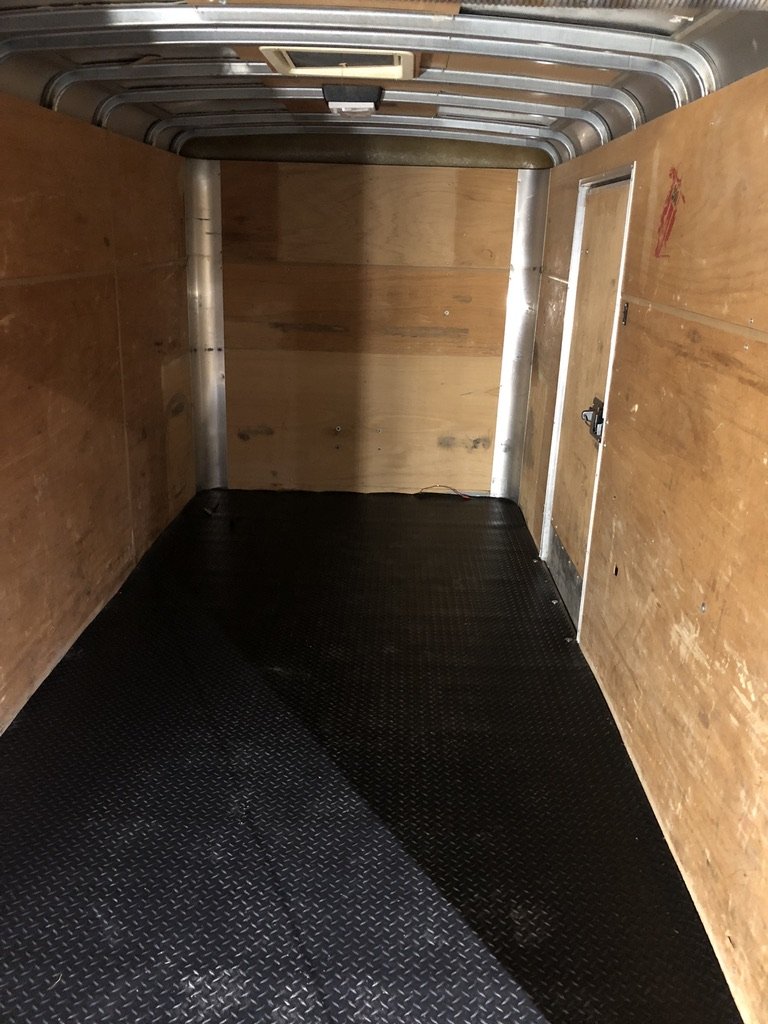

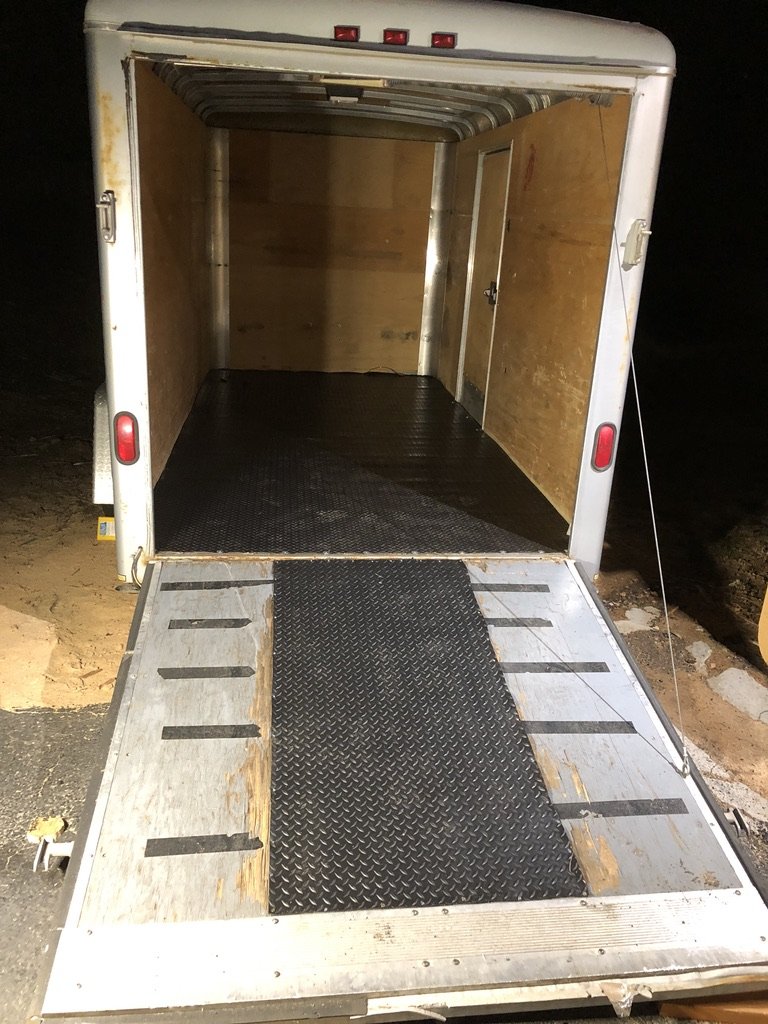

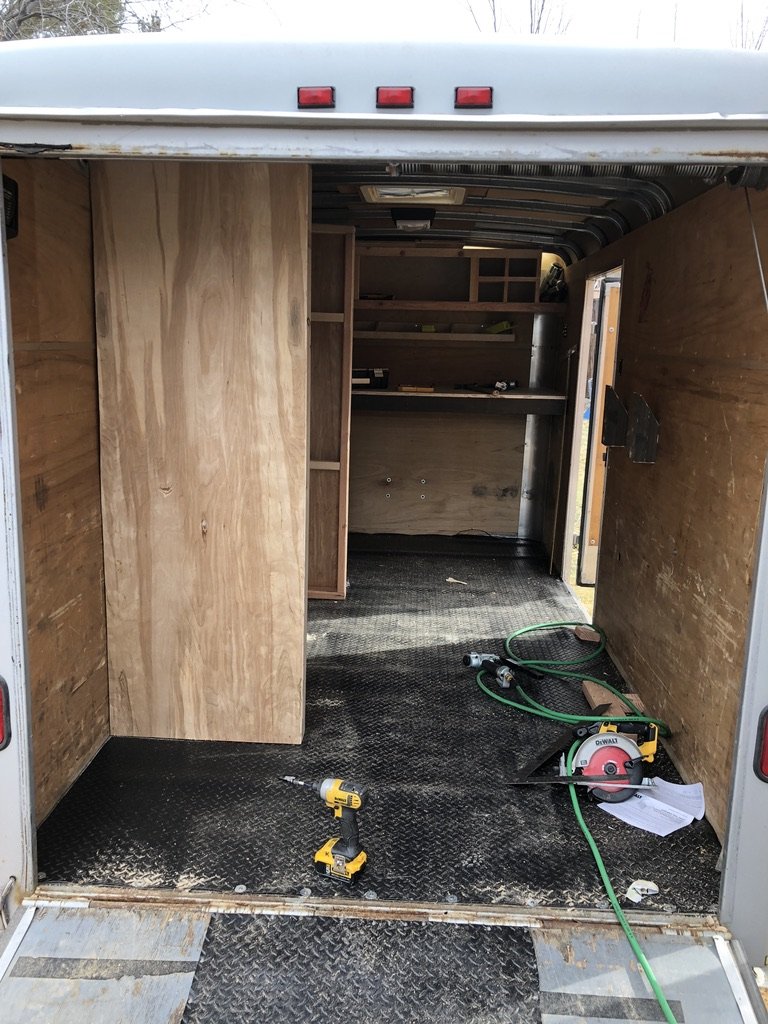

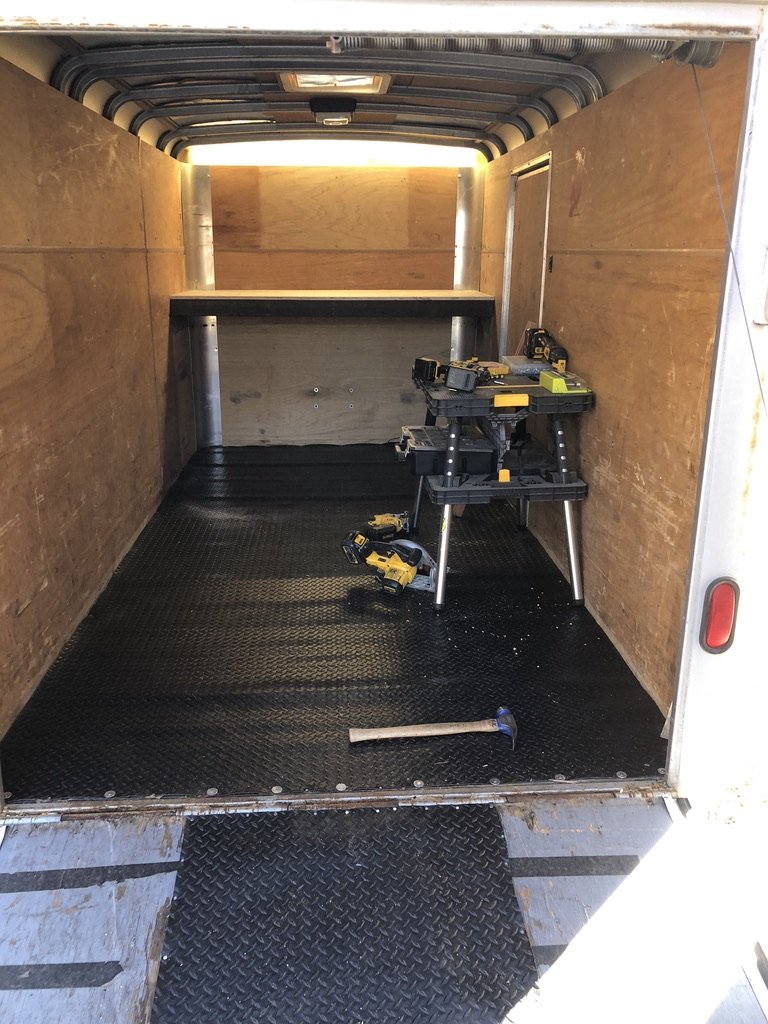

January 12, evening — the ramp drops and the build is real. Look at what you're starting with: thin plywood interior walls (they'll hold a screw but not a lag bolt, plan accordingly), diamond-plate rubber floor (keep it, don't swap it — it grips boots and shrugs off saw chips), three roof clearance lights wired into the factory 12V trailer-wiring harness (re-use the harness for accent lighting later), and a single dome bulb that's bright enough to see your hand in front of you and that's it.

The plan locks in. Driver side gets the heavy work — Kobalt 5-drawer stainless tool chest as the anchor weight, with cabinetry framed around it at exact workbench height. Passenger side gets the saws + lumber storage. Front bulkhead becomes the electrical service bay. Rear stays open as the workspace — saws aim out the open ramp door for cutting long stock.

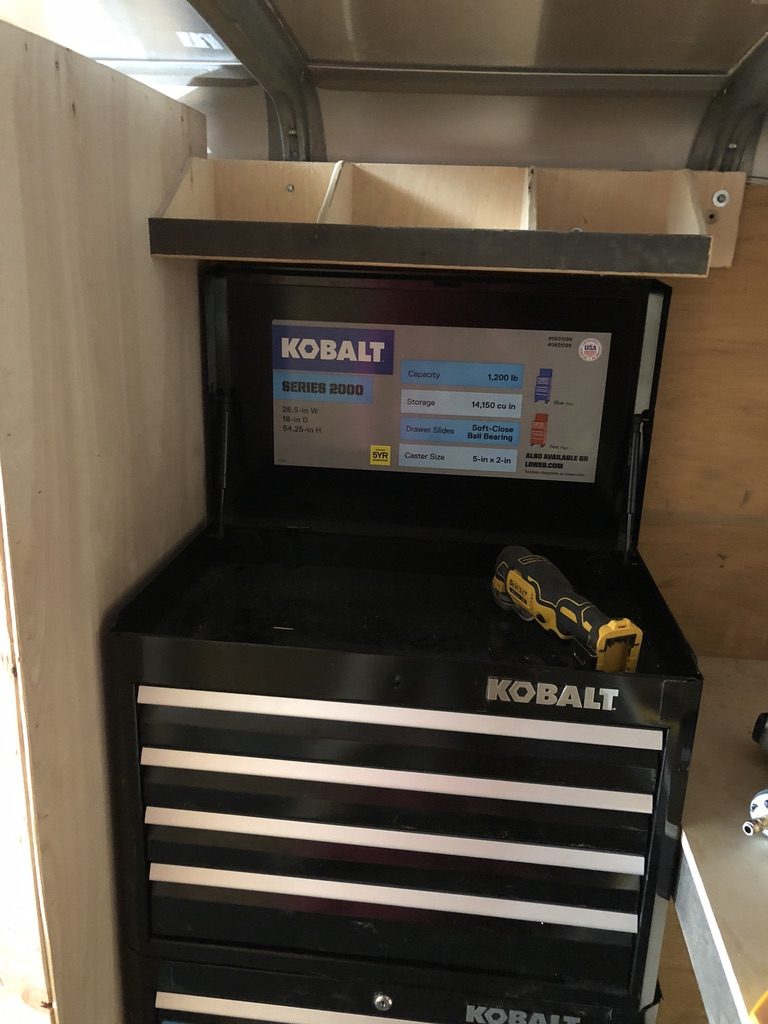

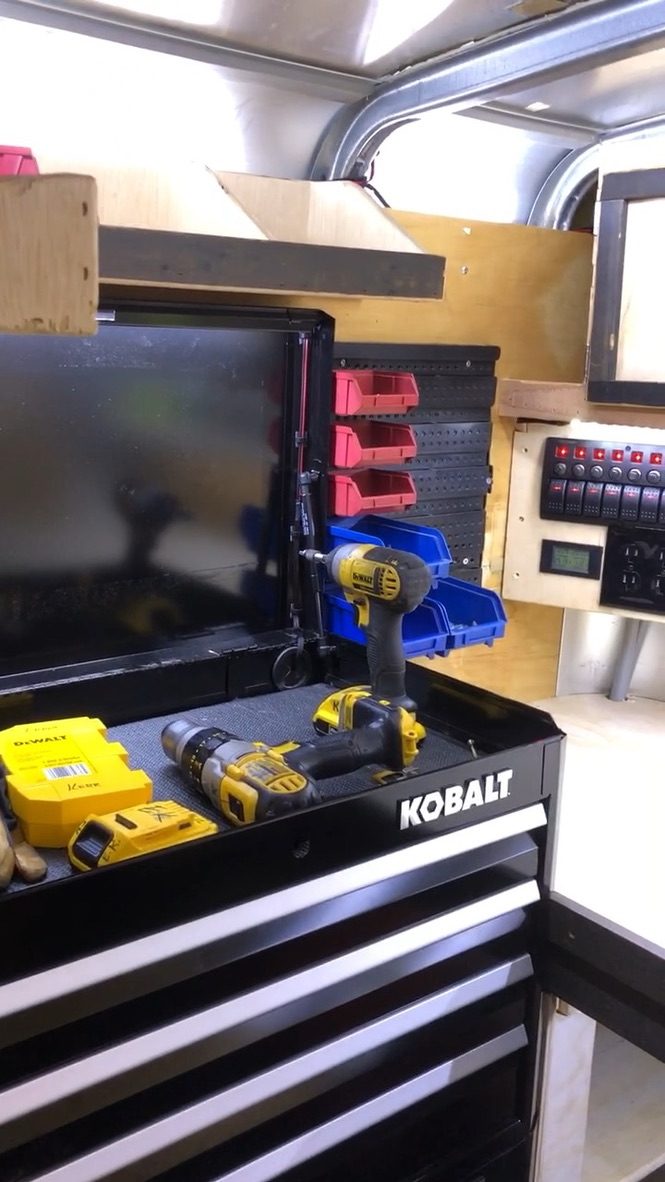

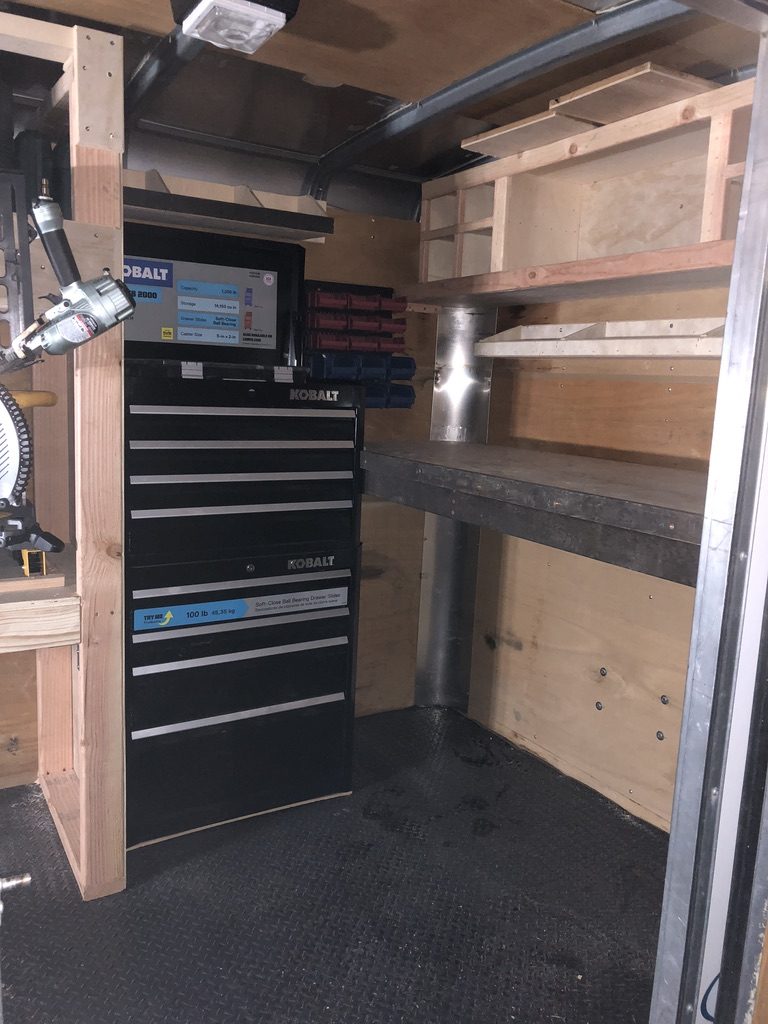

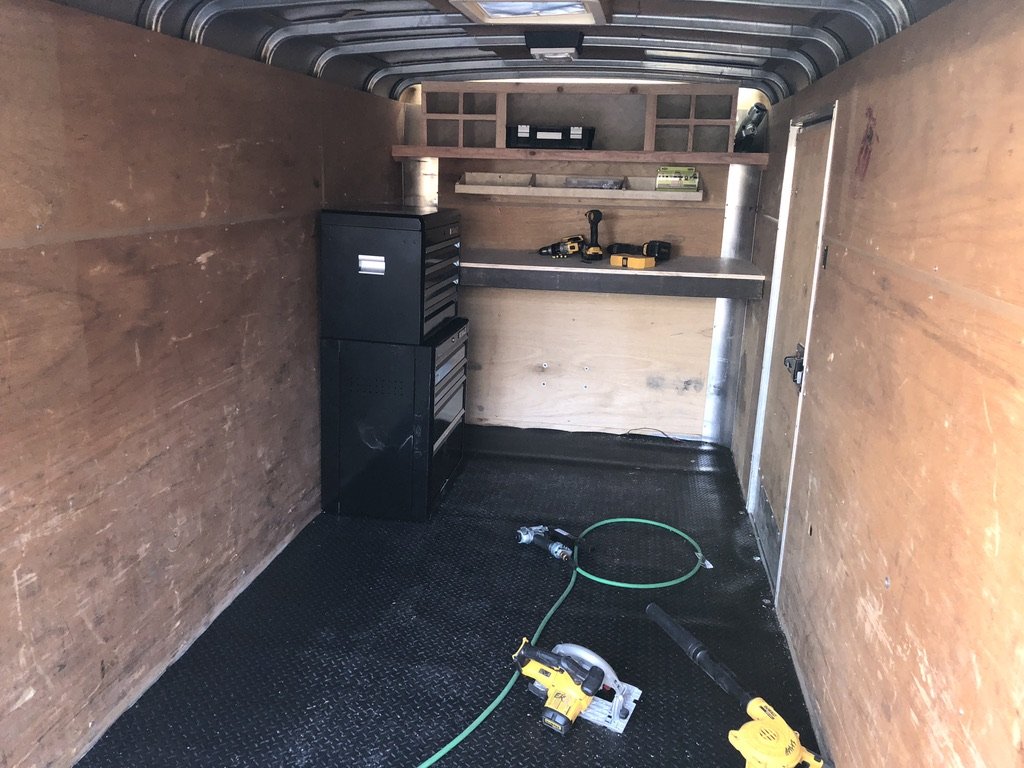

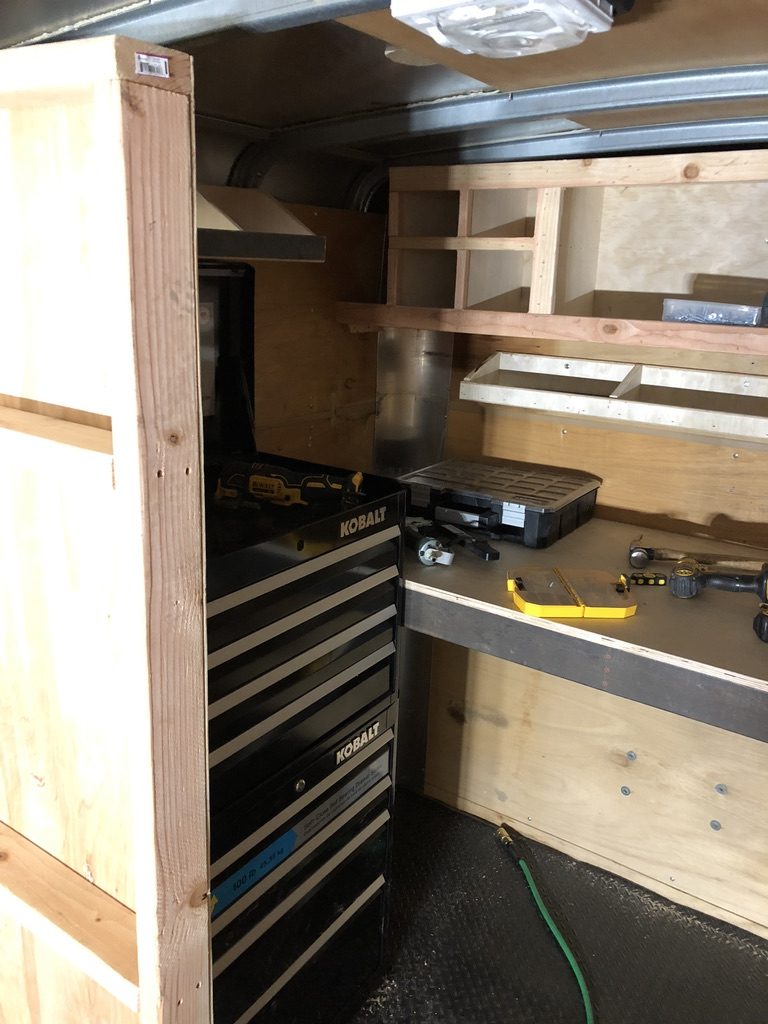

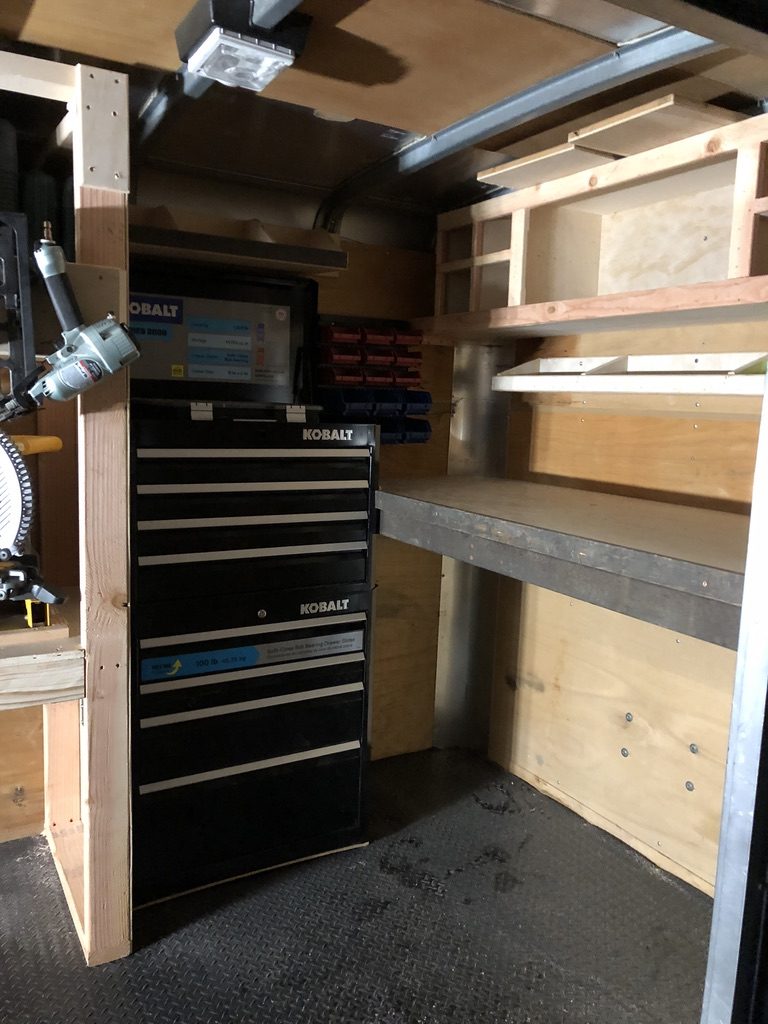

The Kobalt 5-drawer stainless tool chest gets dropped in first. It's heavy, it's the anchor weight that sets the deck height for the whole rest of the build, and once cabinetry is framed around it you can never replace it without tearing the cabinetry back down. Mount the heaviest, least-changeable thing first.

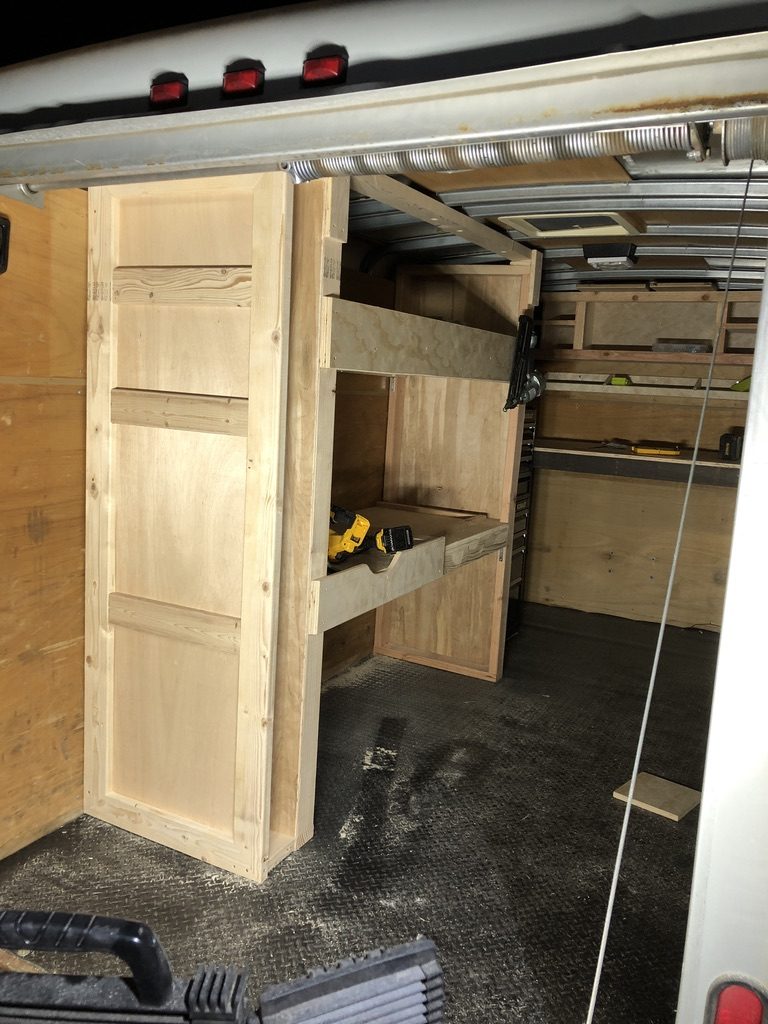

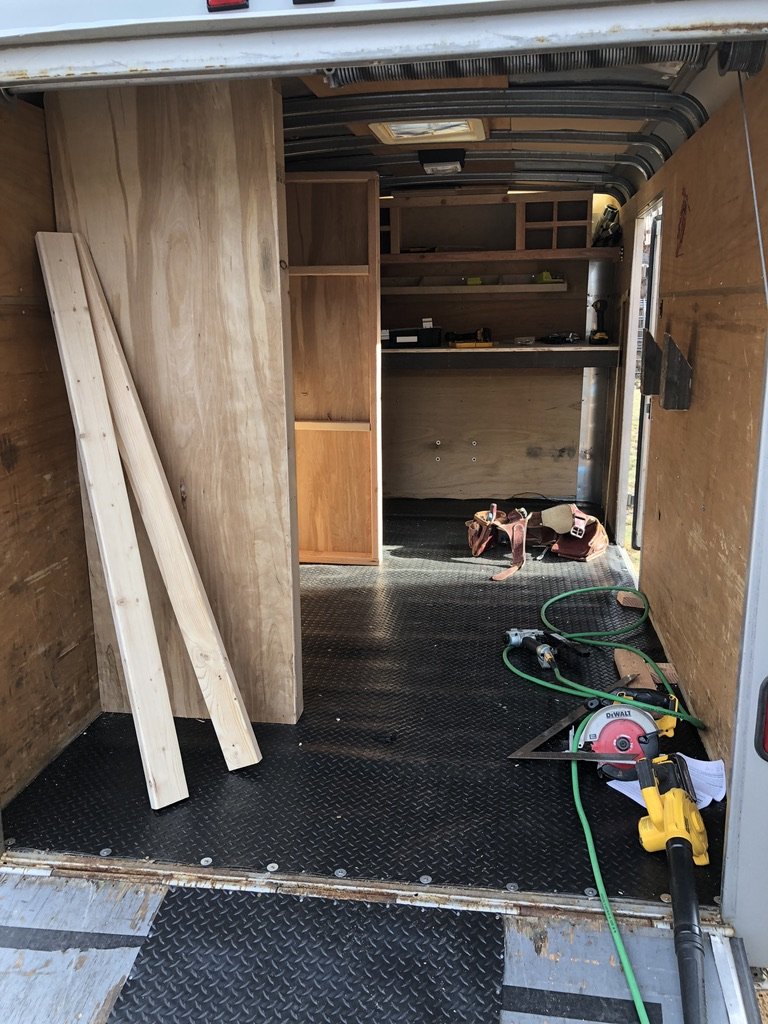

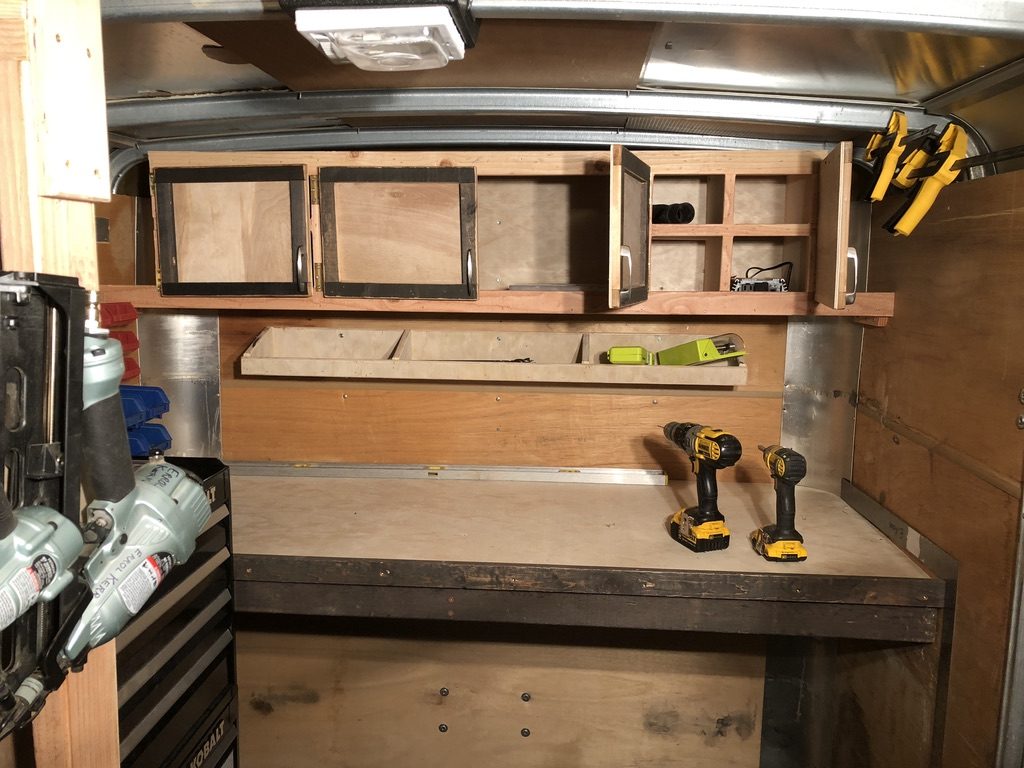

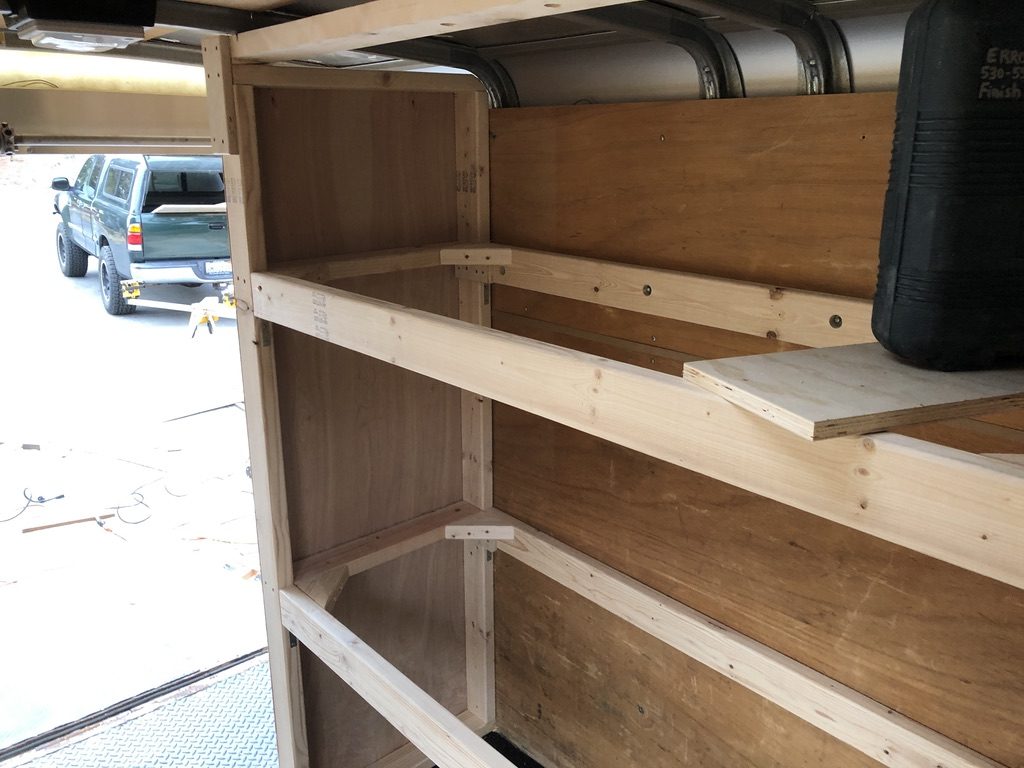

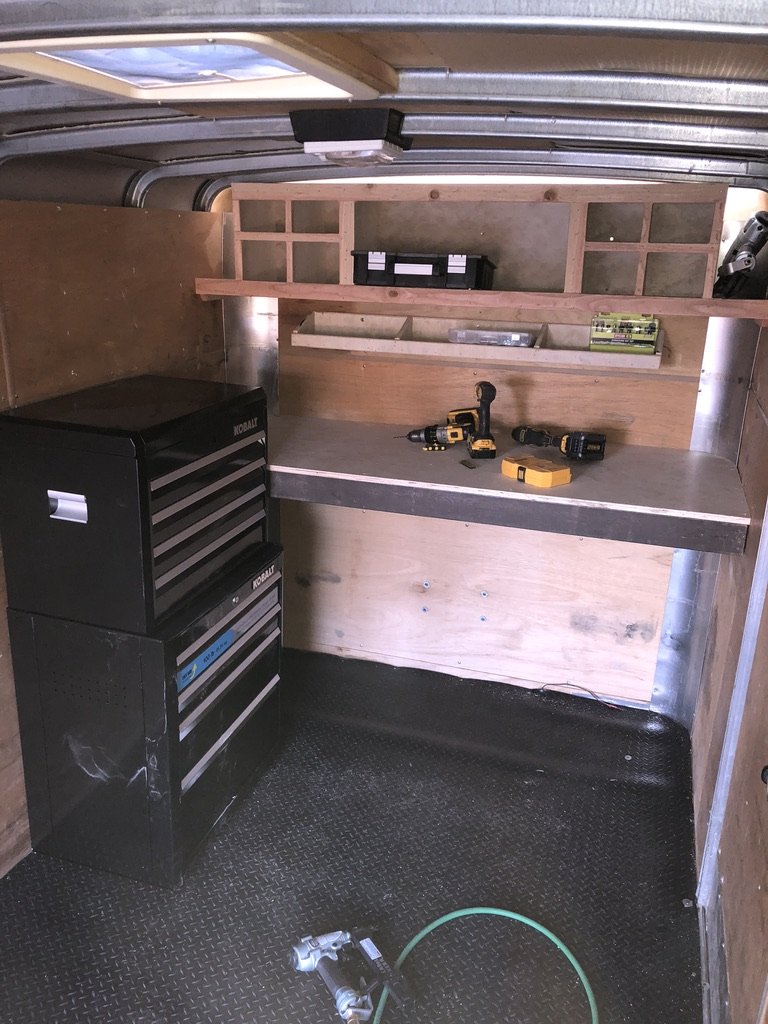

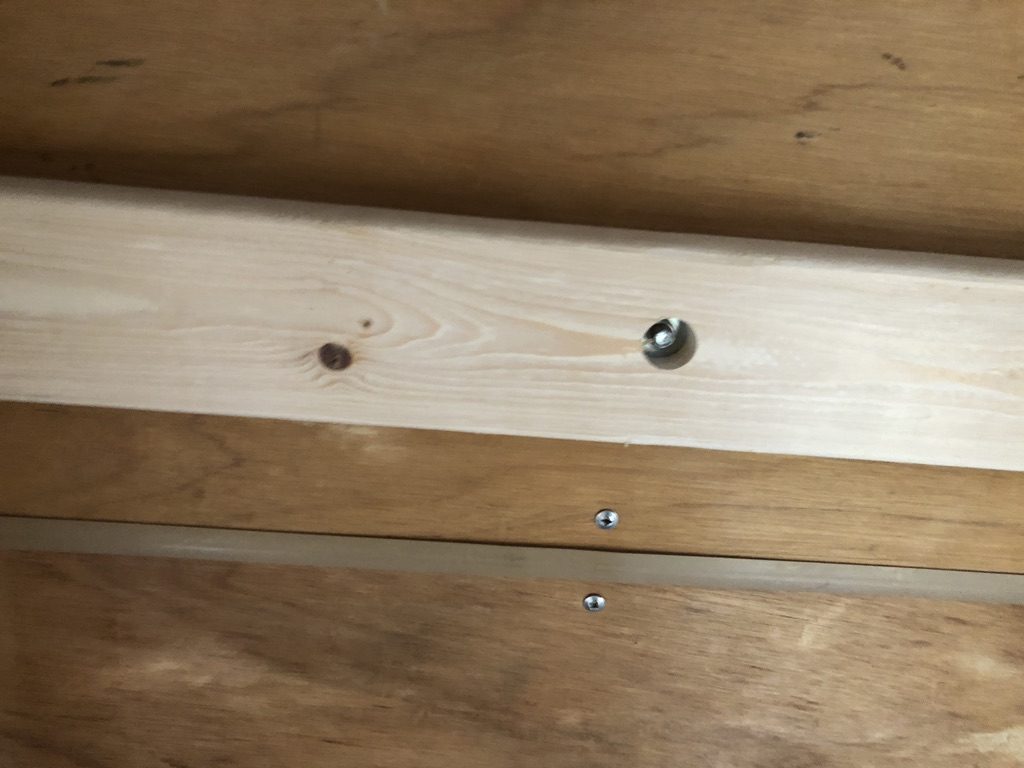

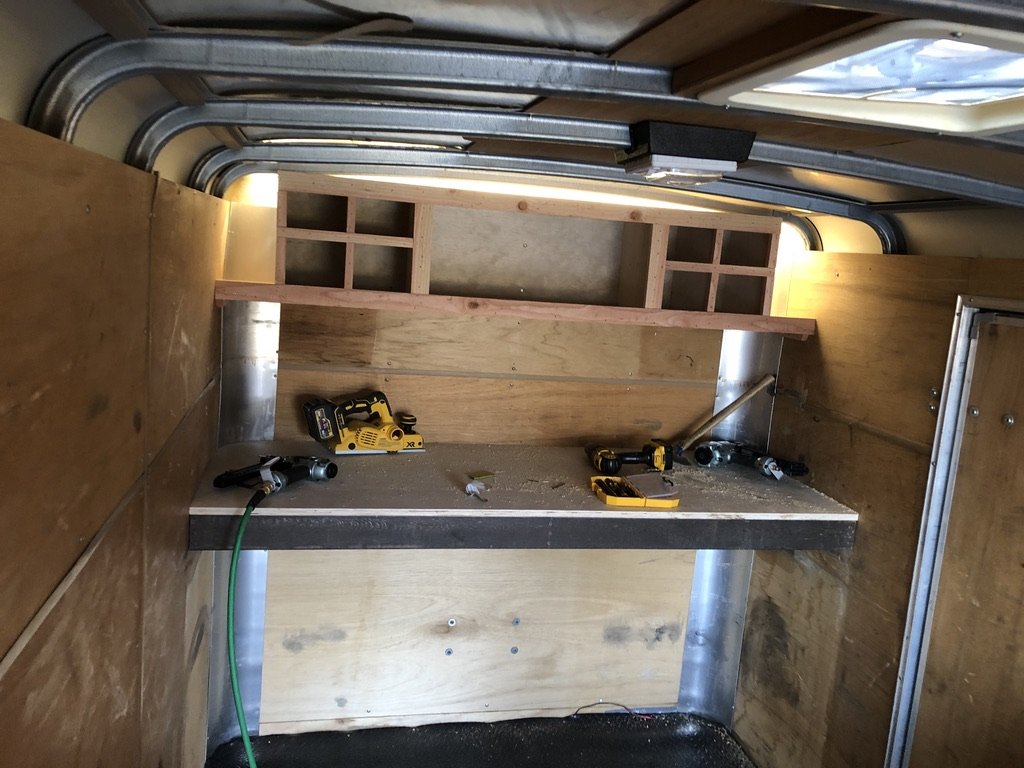

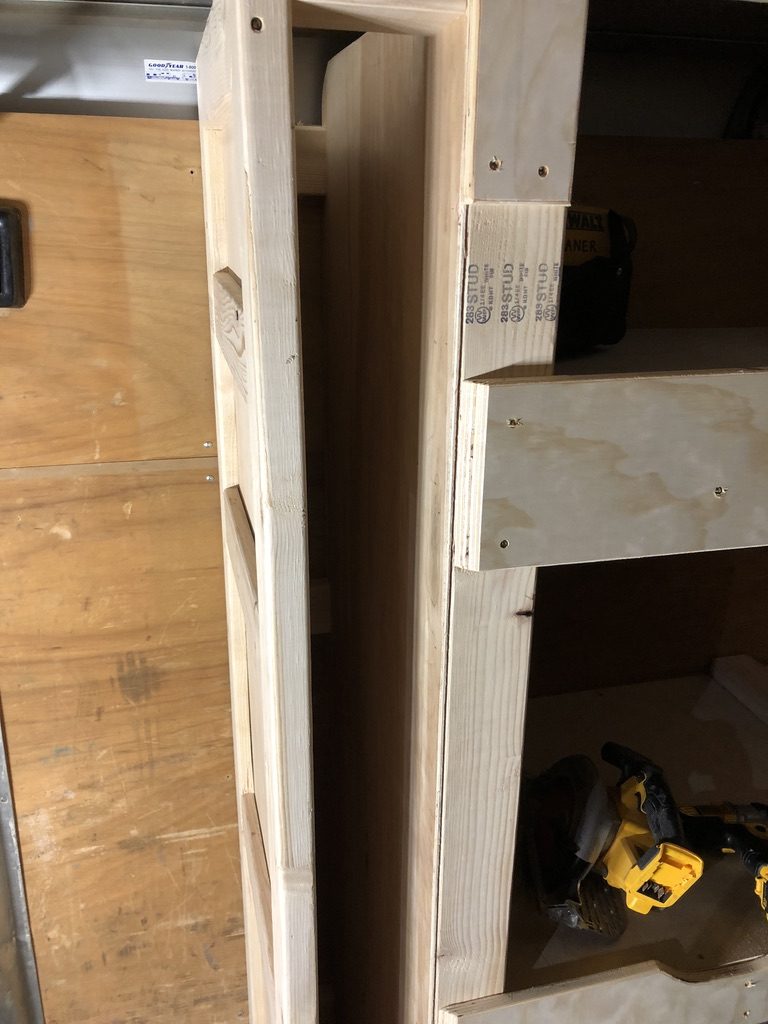

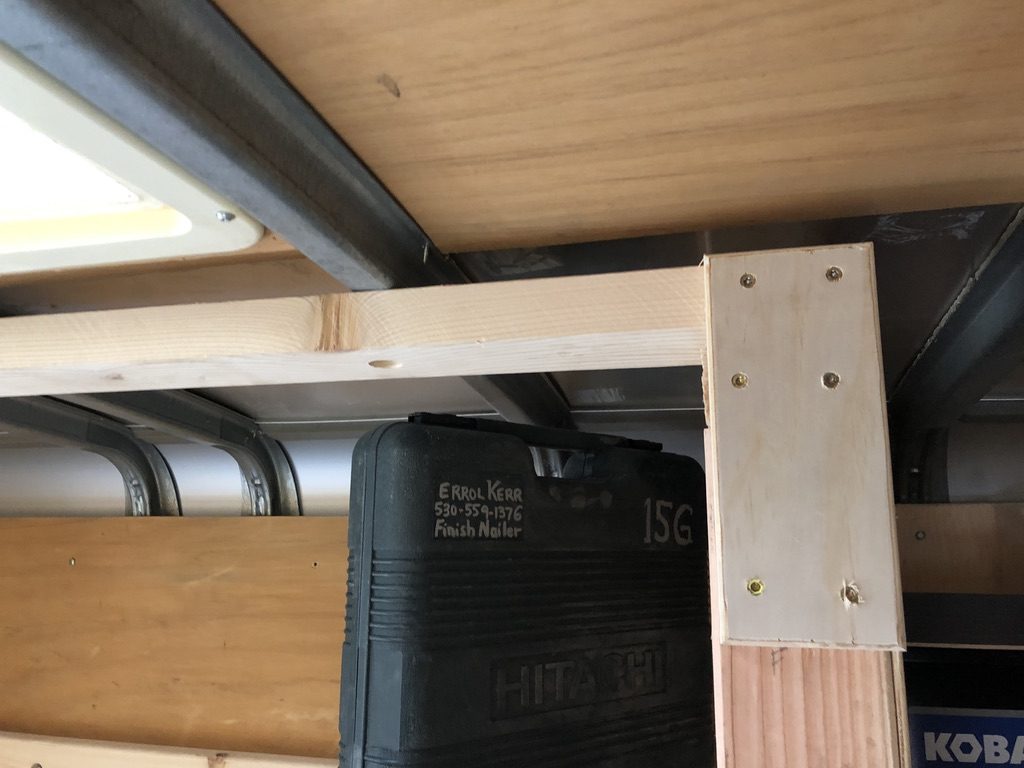

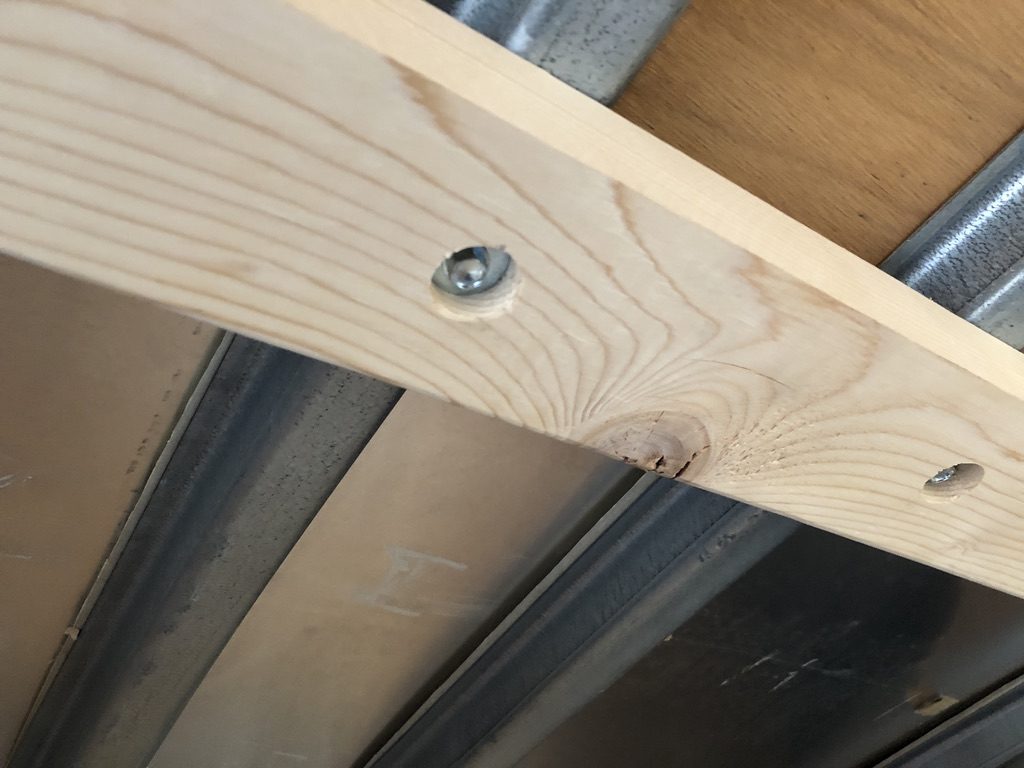

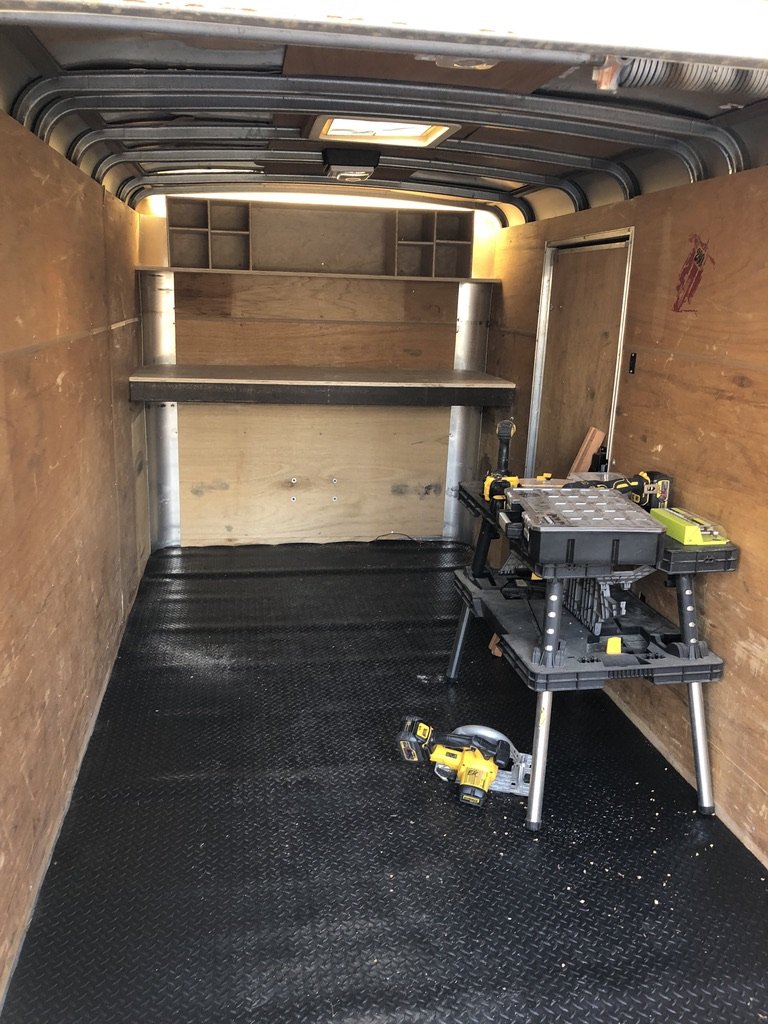

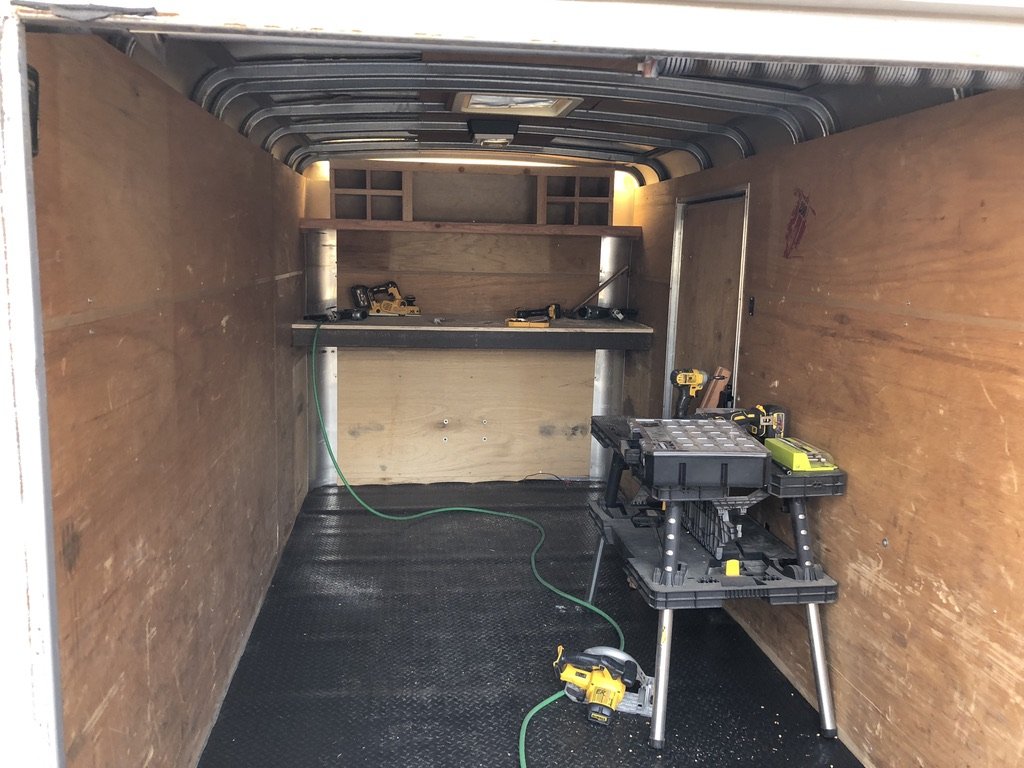

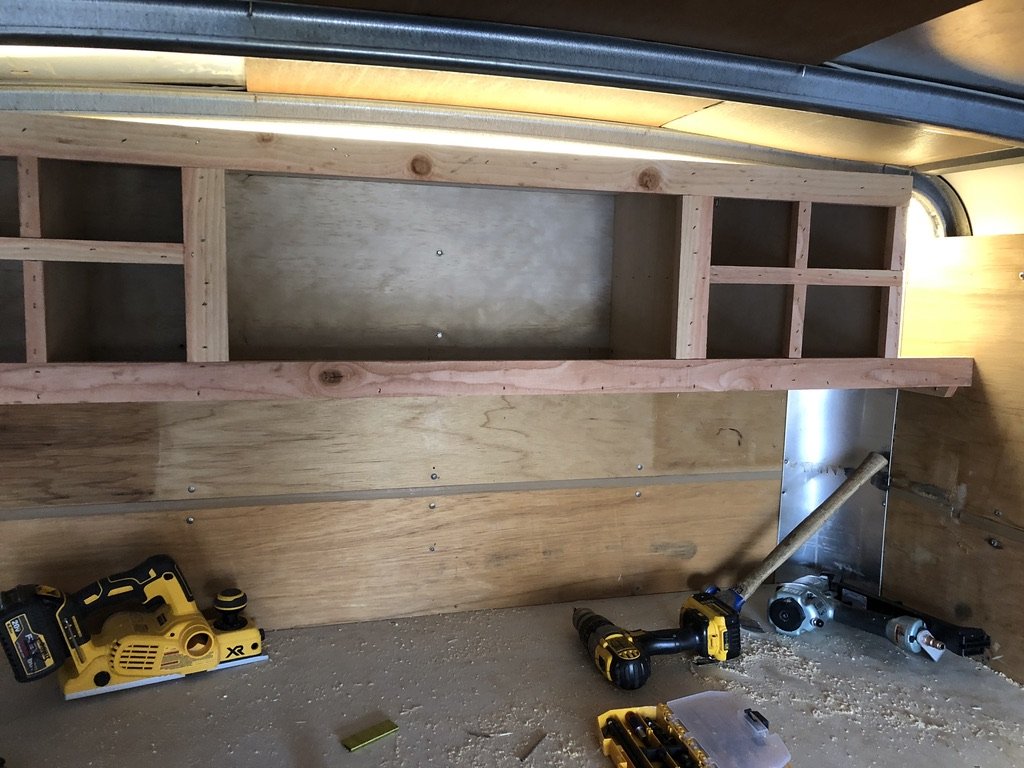

Once the chest is in, vertical 2×3s lag into the trailer's factory metal C-channels at floor + ceiling. Horizontal 2×3 ledgers span at workbench height (~36"), at upper-shelf height (~60"), and at top header (~78"). The verticals locate the cabinet faces — the horizontals locate the workbench top + shelves. Square everything to the chest height. The chest height is the reference for everything.

Wall paneling — 3/4" plywood, screwed to the 2×3 frame on the inside face — goes on after framing. The 3/4" is overkill for the wall but it lets you mount pegboard, brackets, anything, anywhere, into solid material.

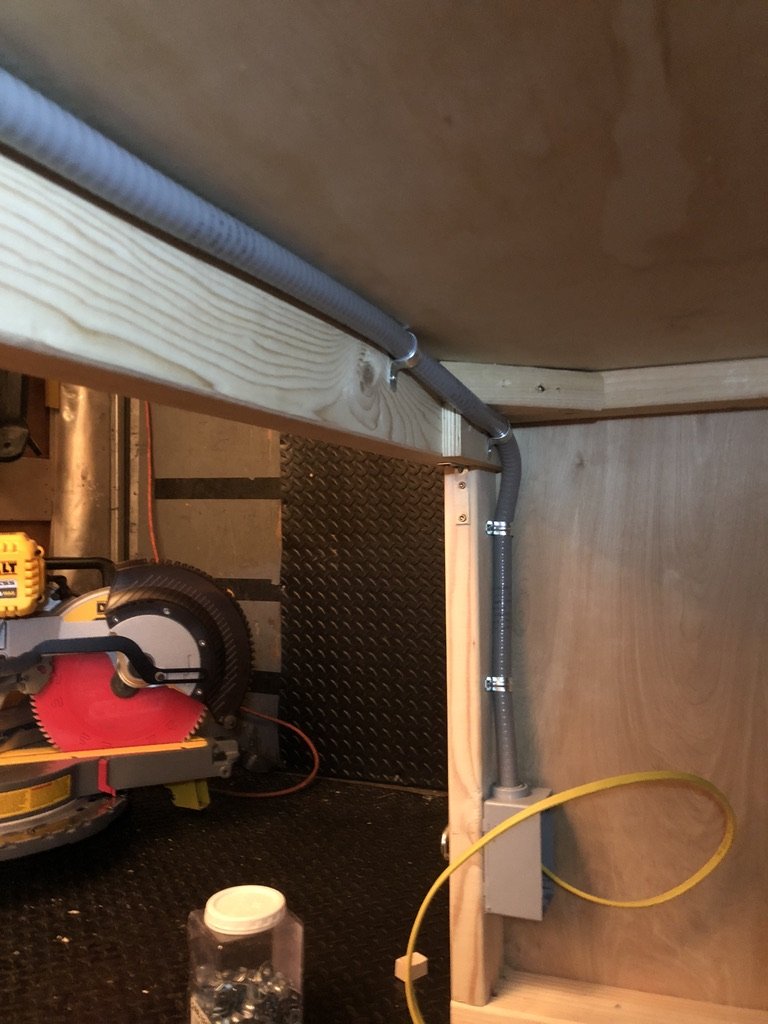

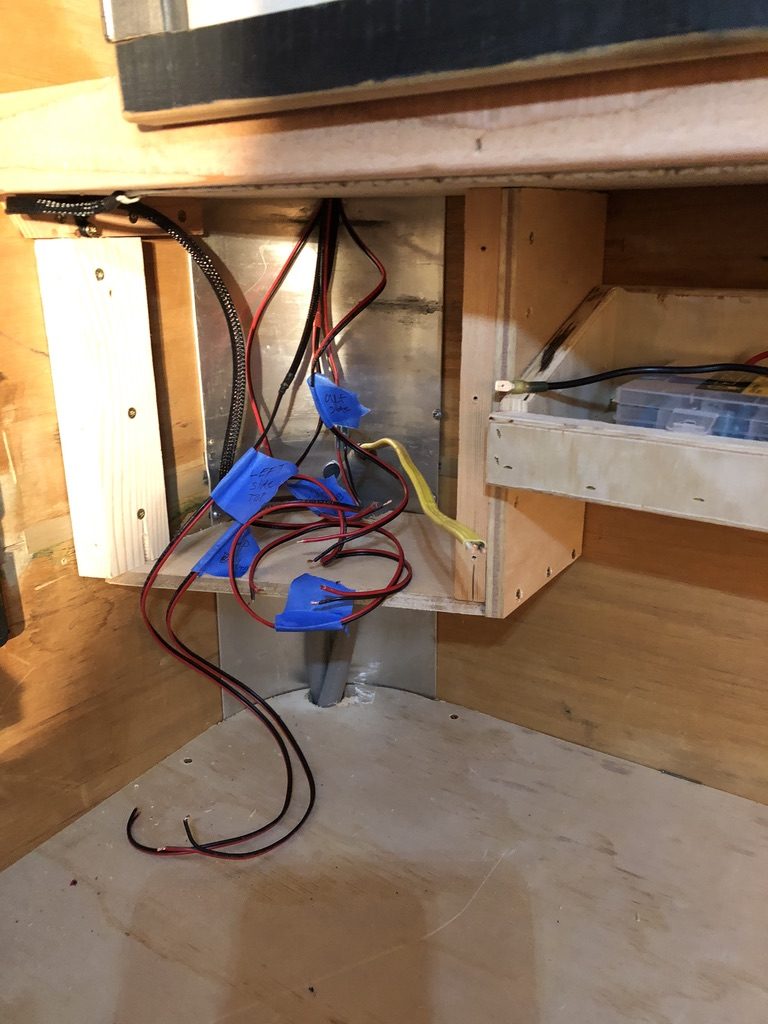

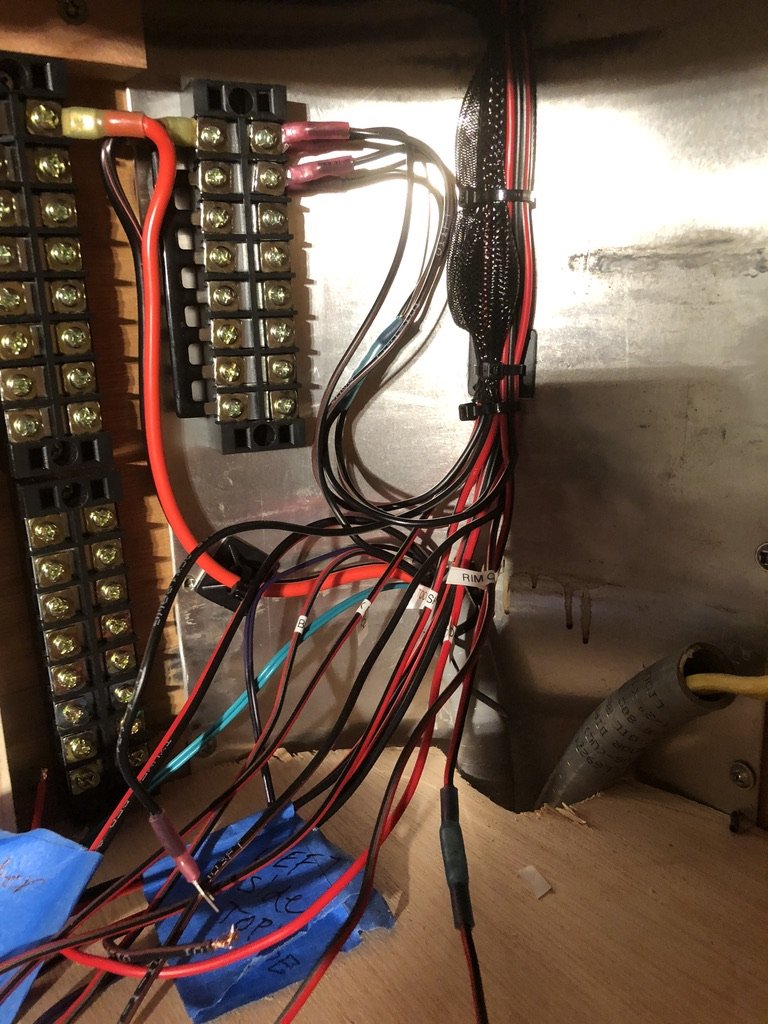

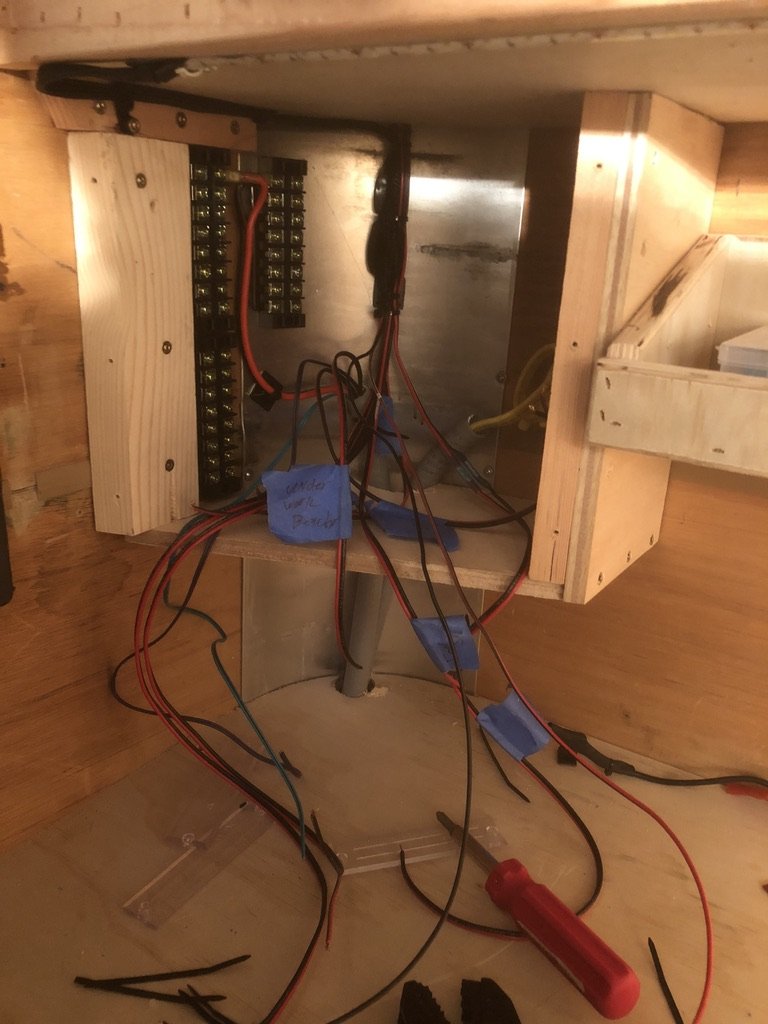

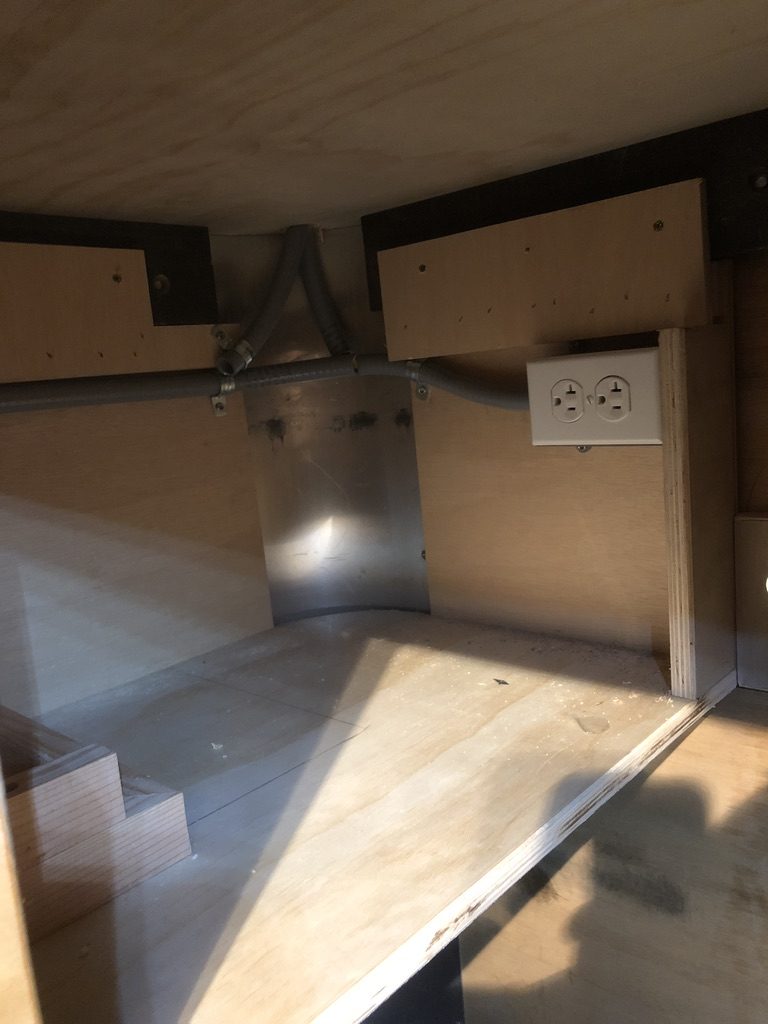

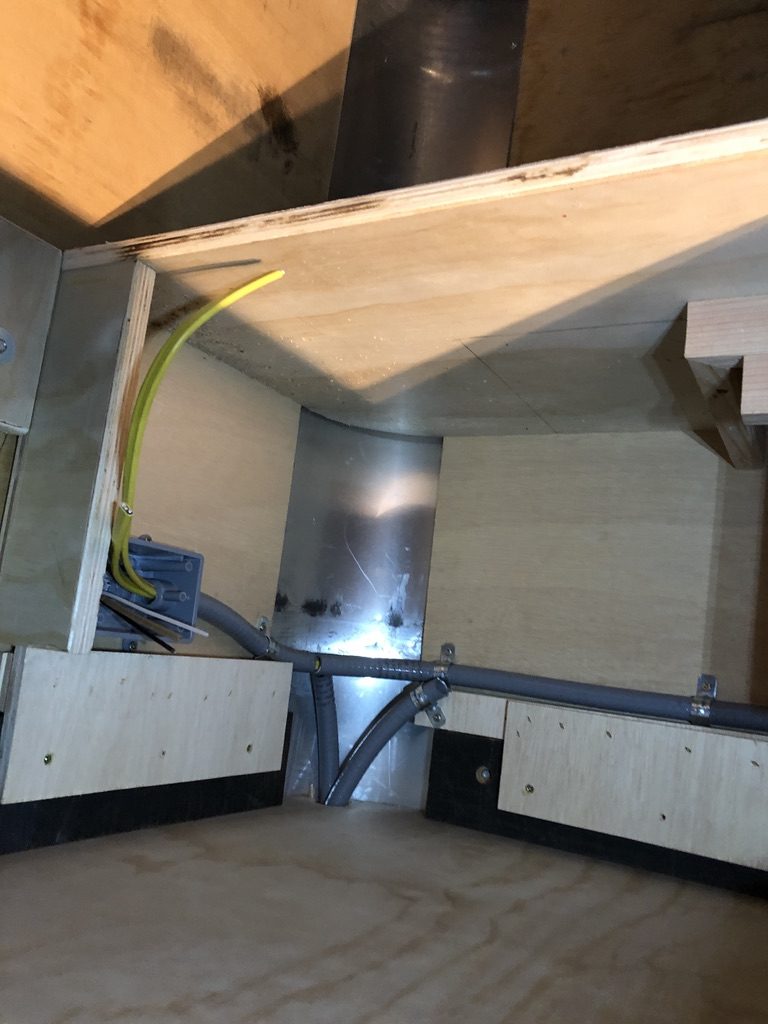

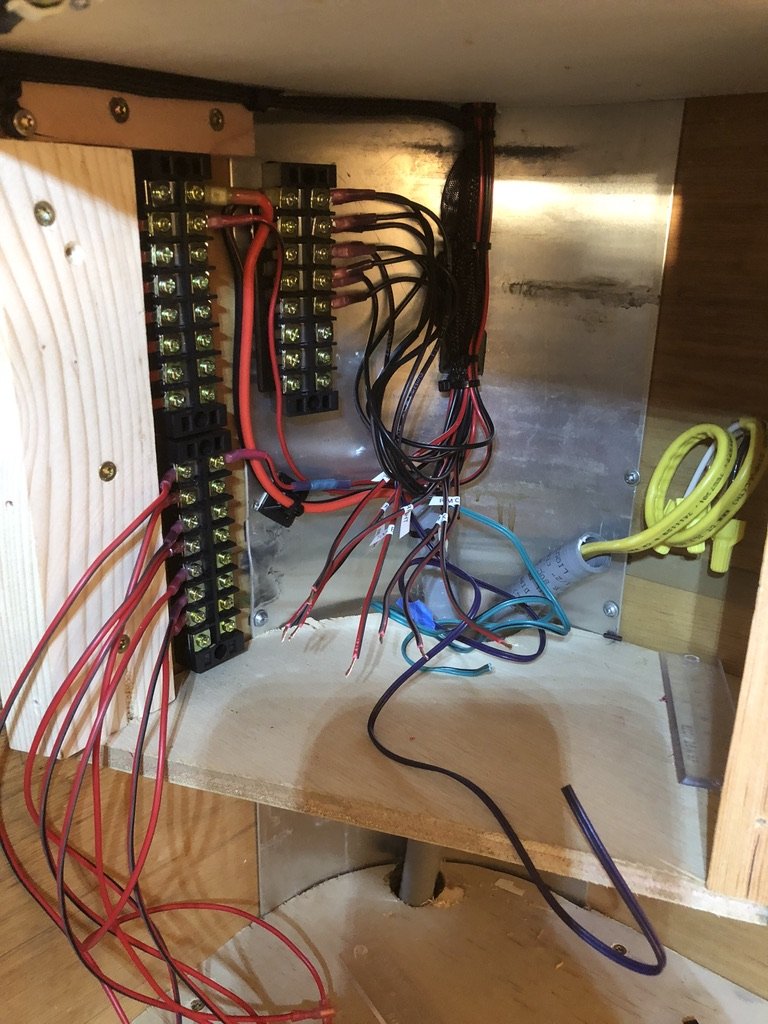

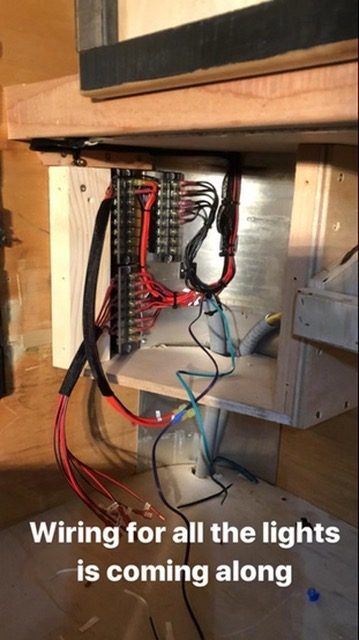

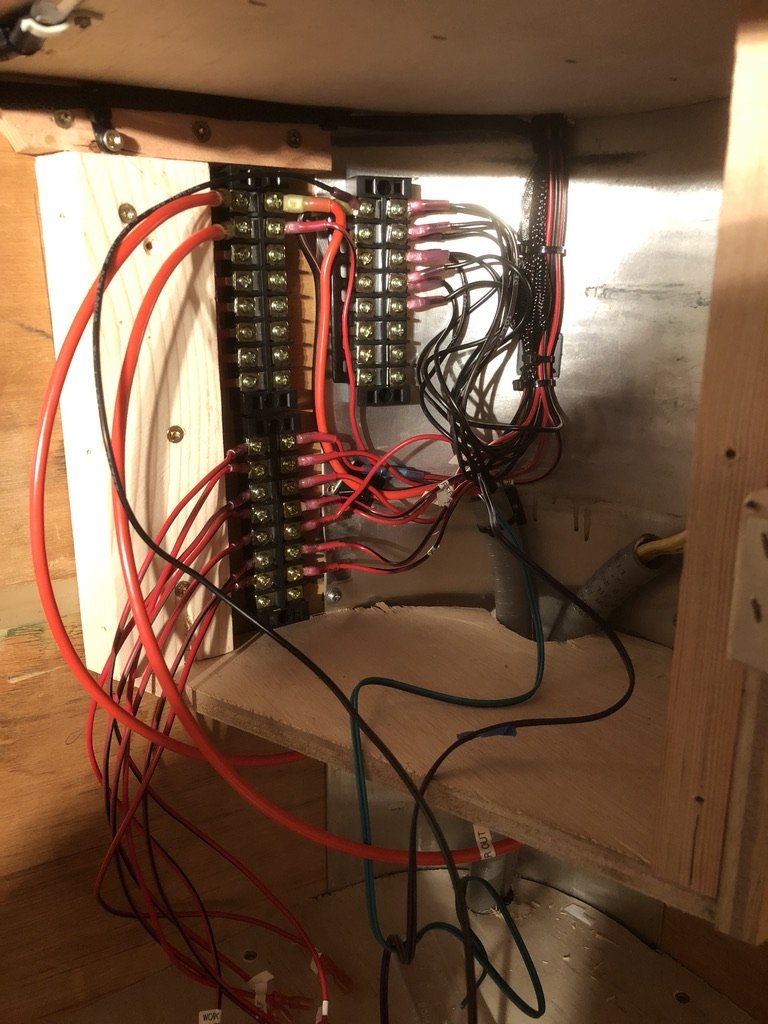

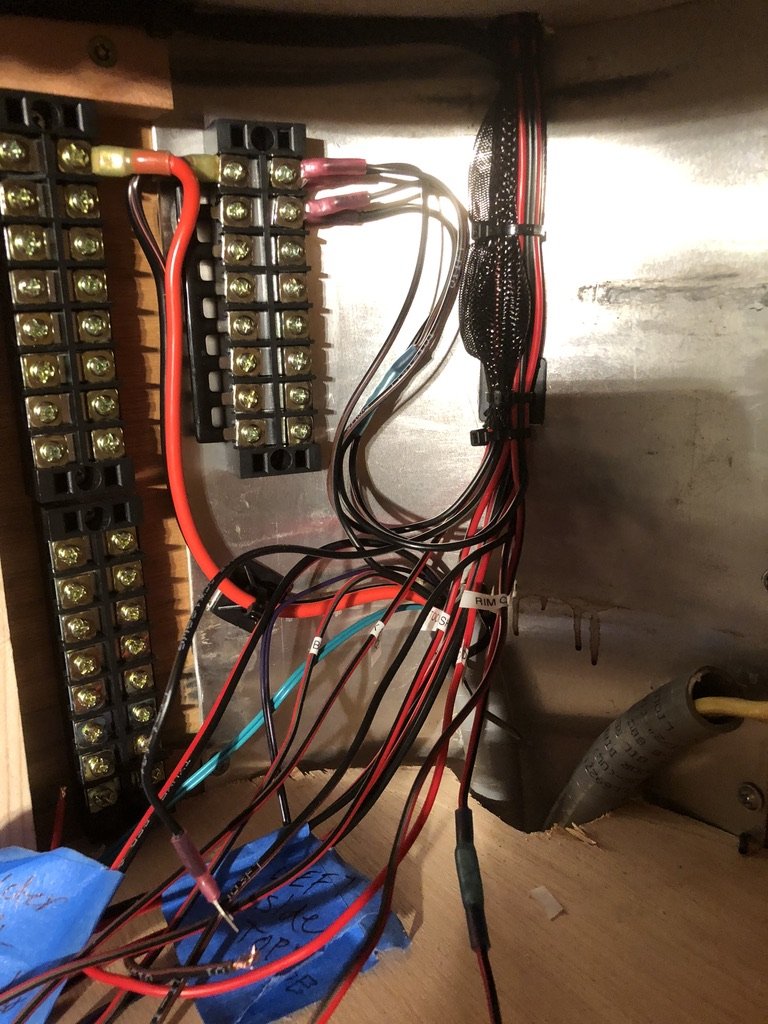

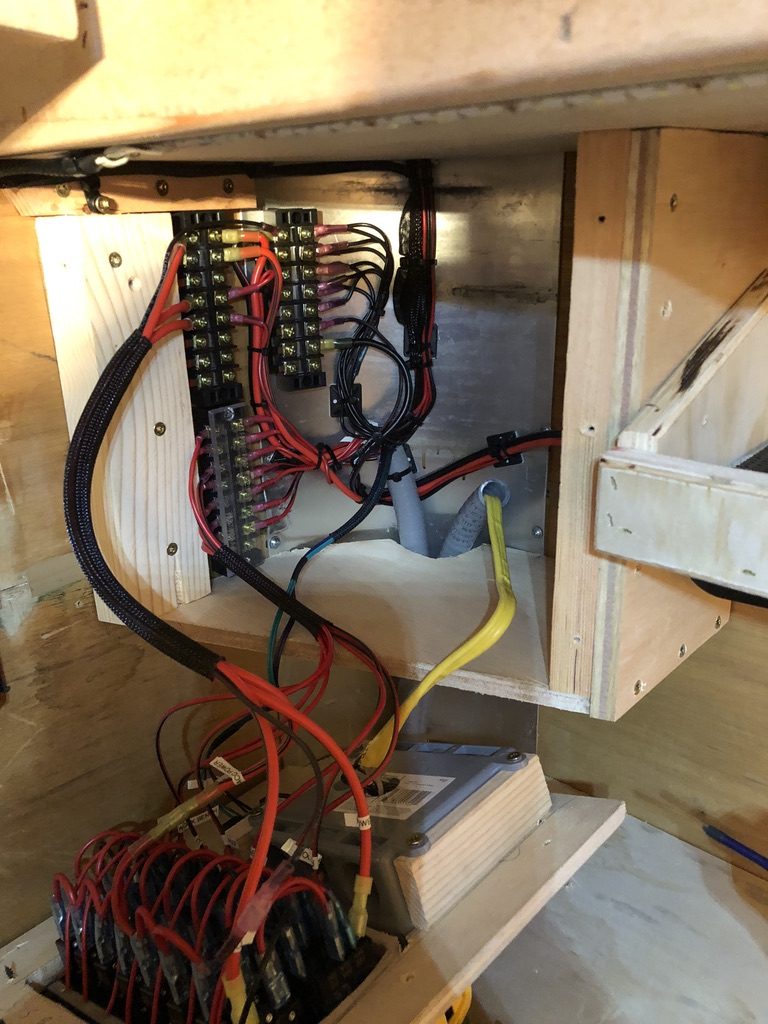

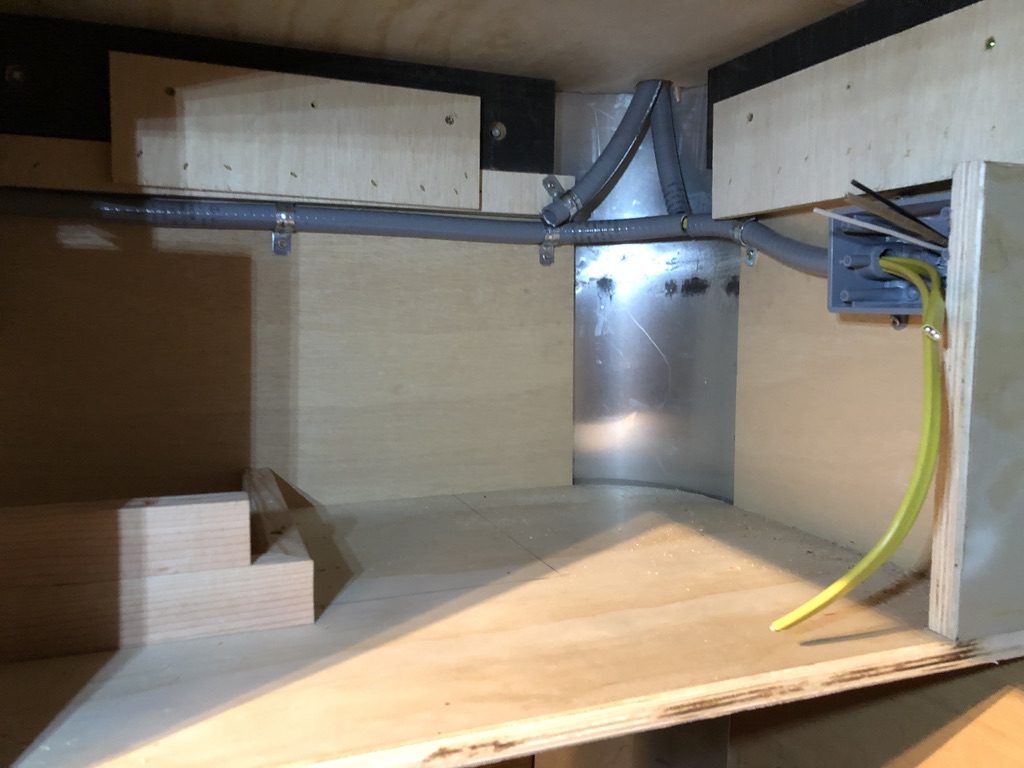

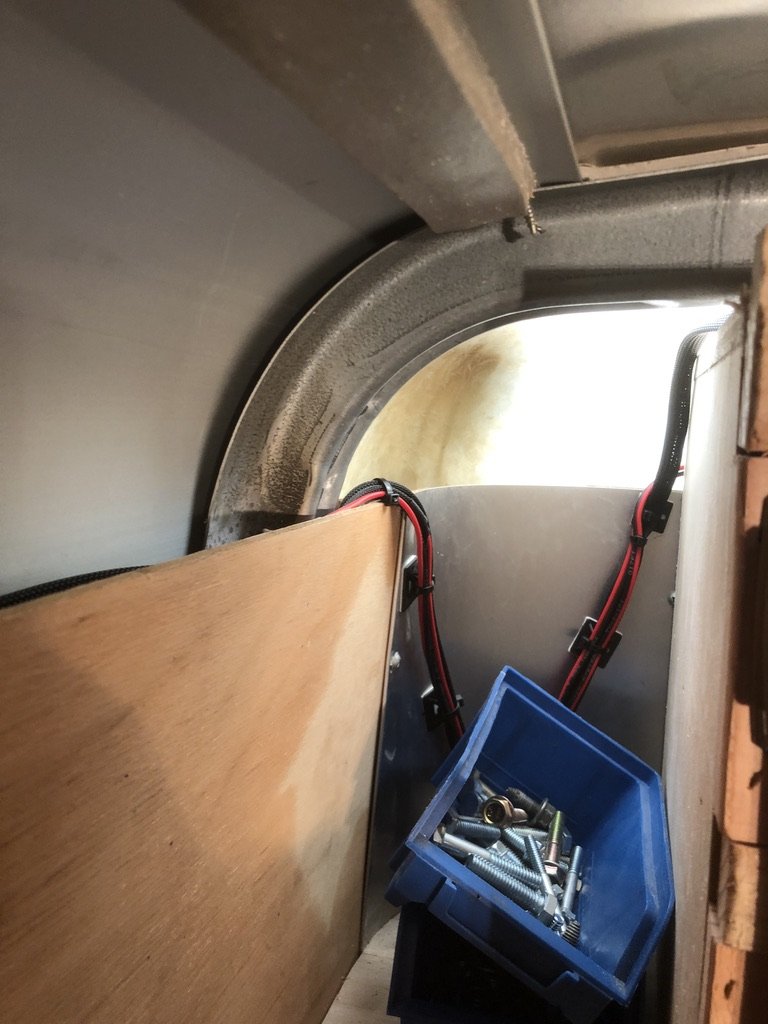

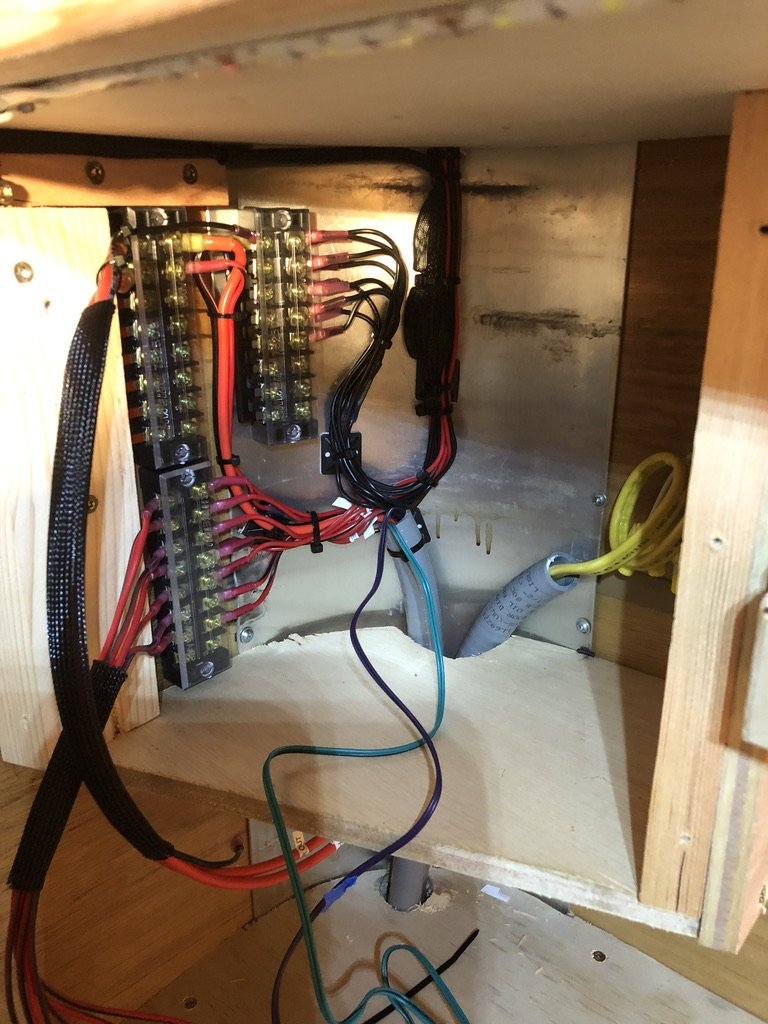

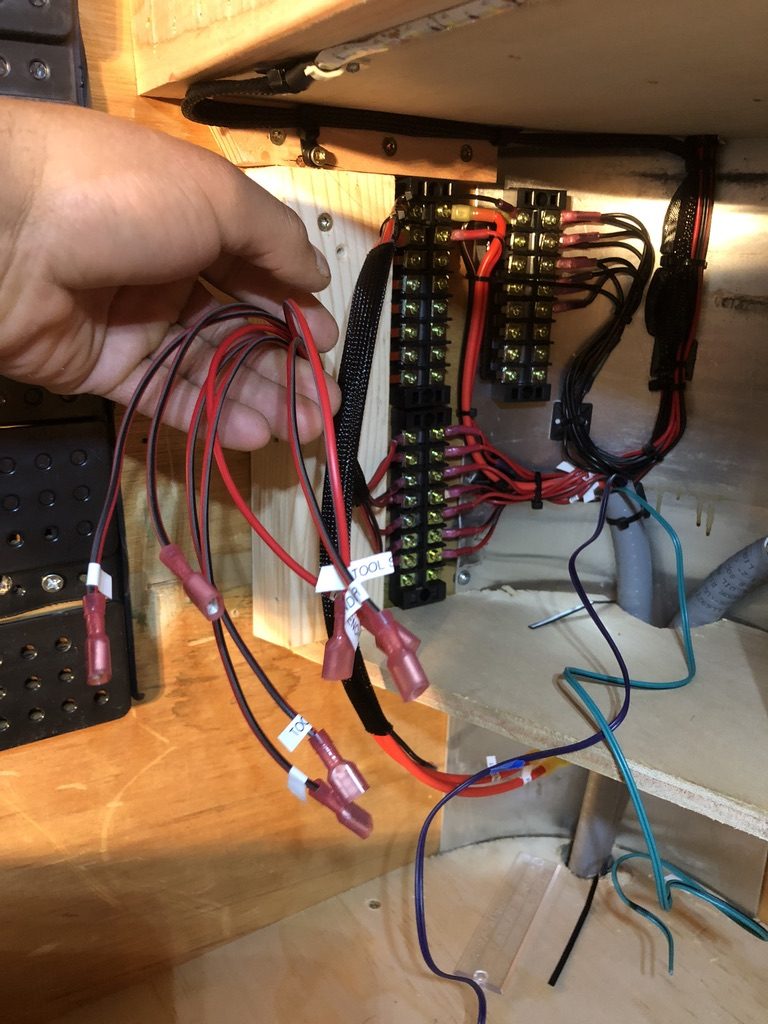

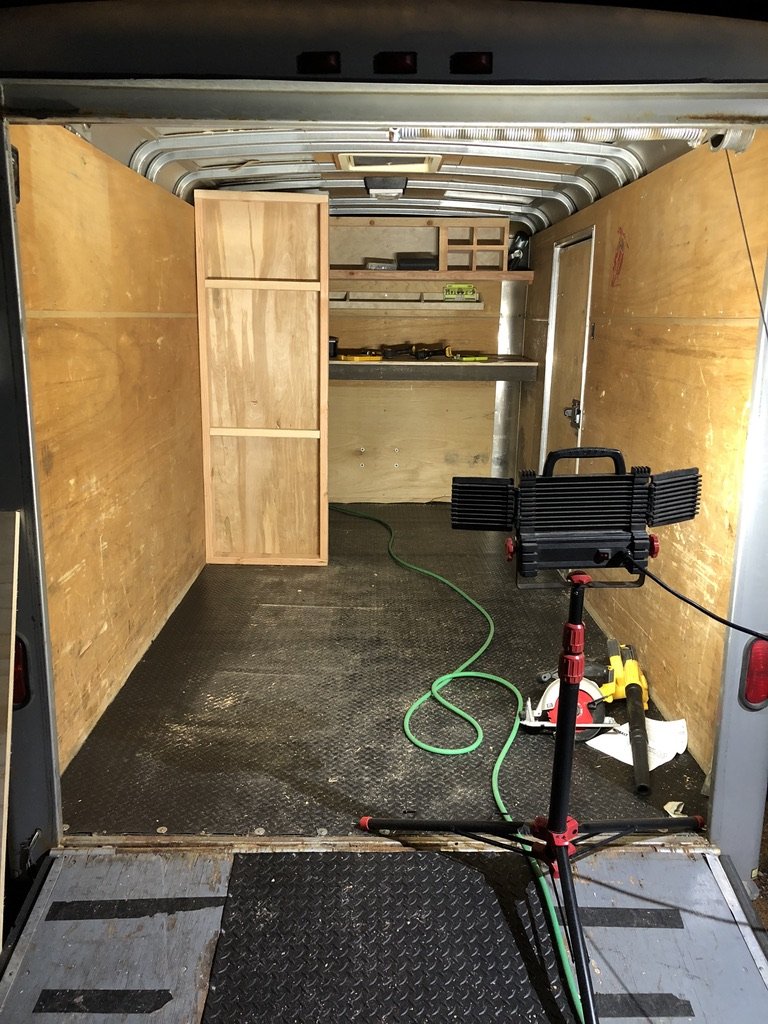

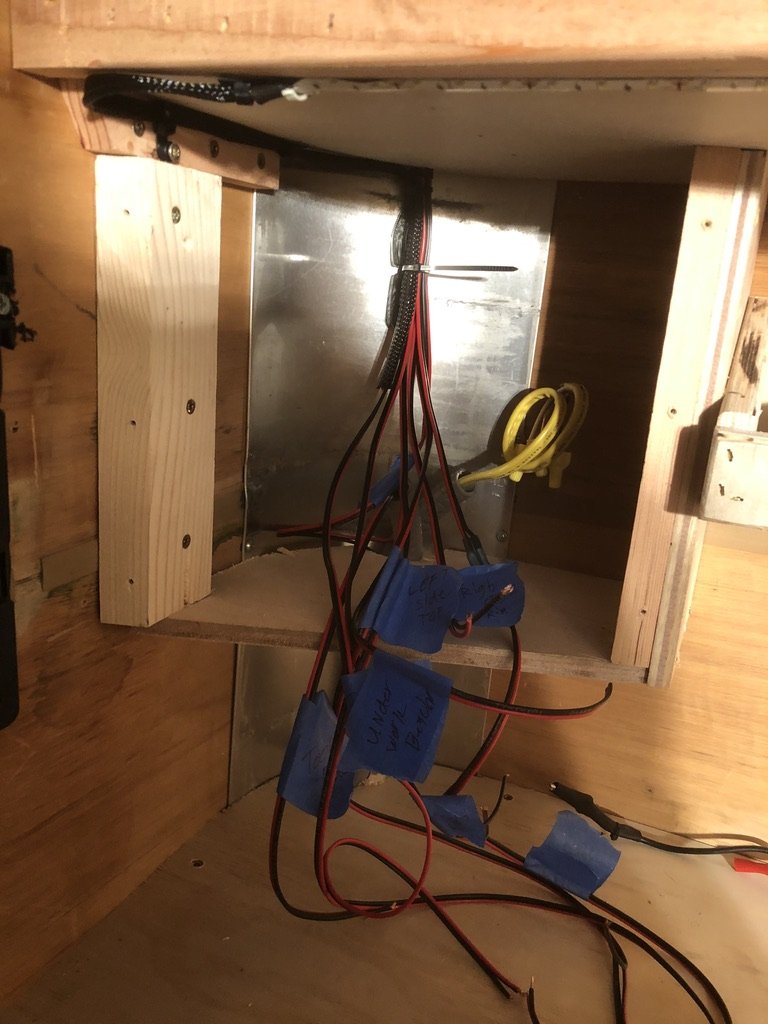

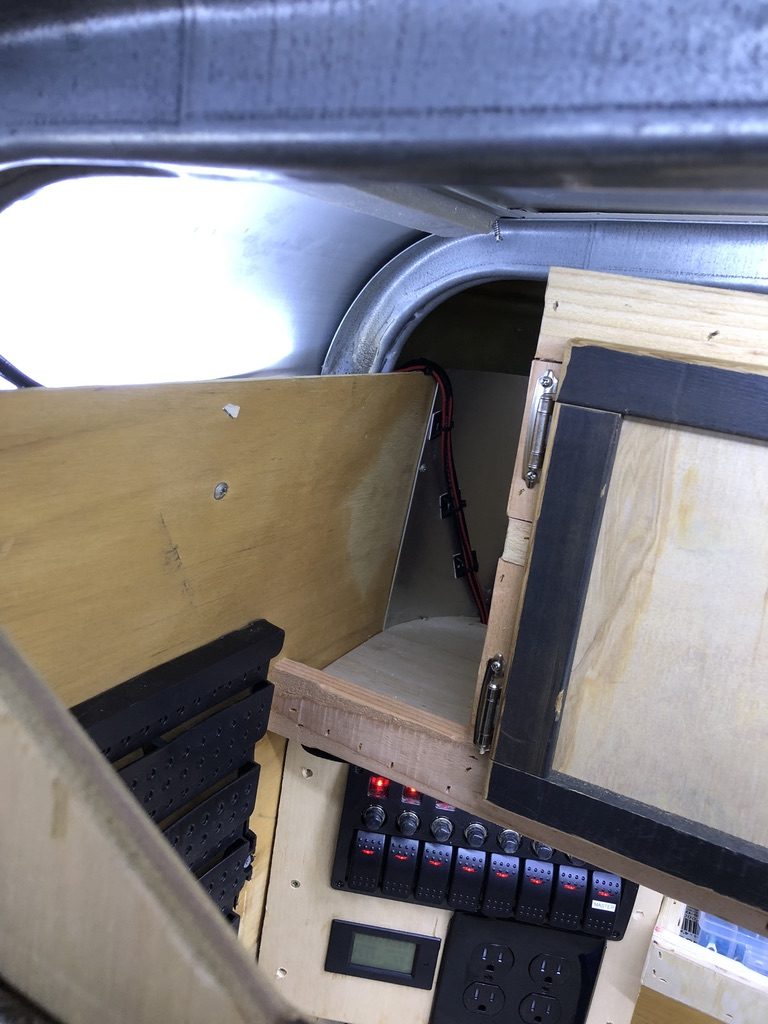

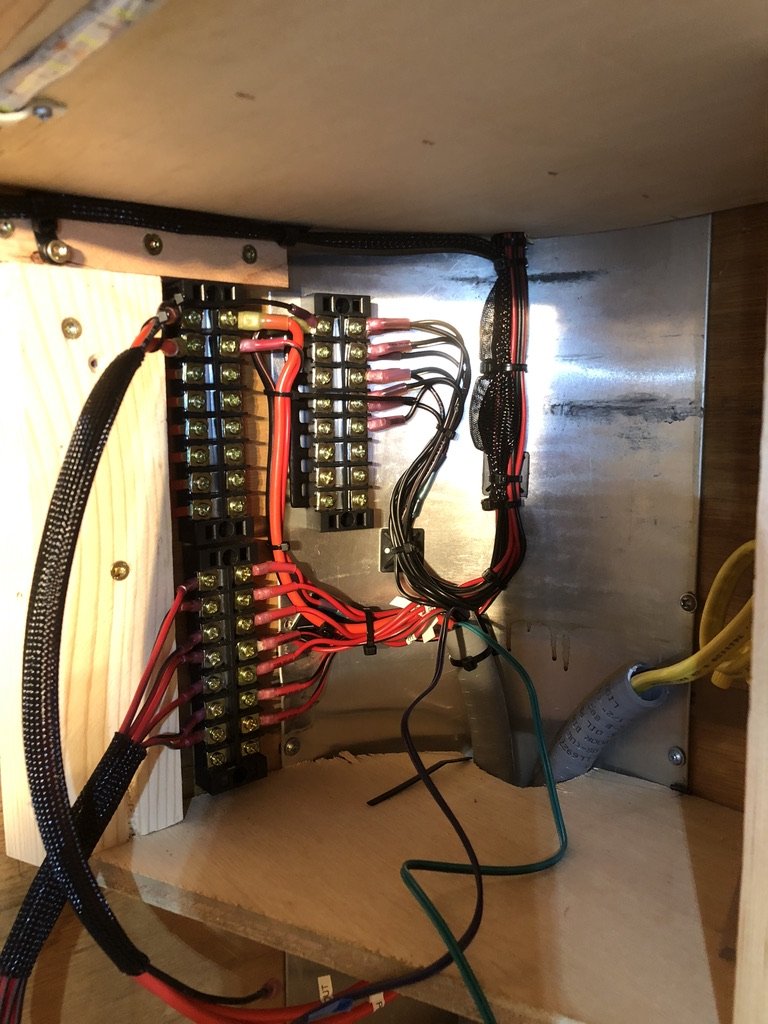

This is the phase that earns the page. Most cargo-trailer builds die here — somebody runs wires straight off the battery with no fuses, no terminal blocks, no labels, and then spends the next ten years wondering why something doesn't work. We did this right. Color-coded marine-grade tinned copper. Every wire lands at a labeled terminal block. Every circuit on its own breaker + its own switch. No twist-nuts inside the bay.

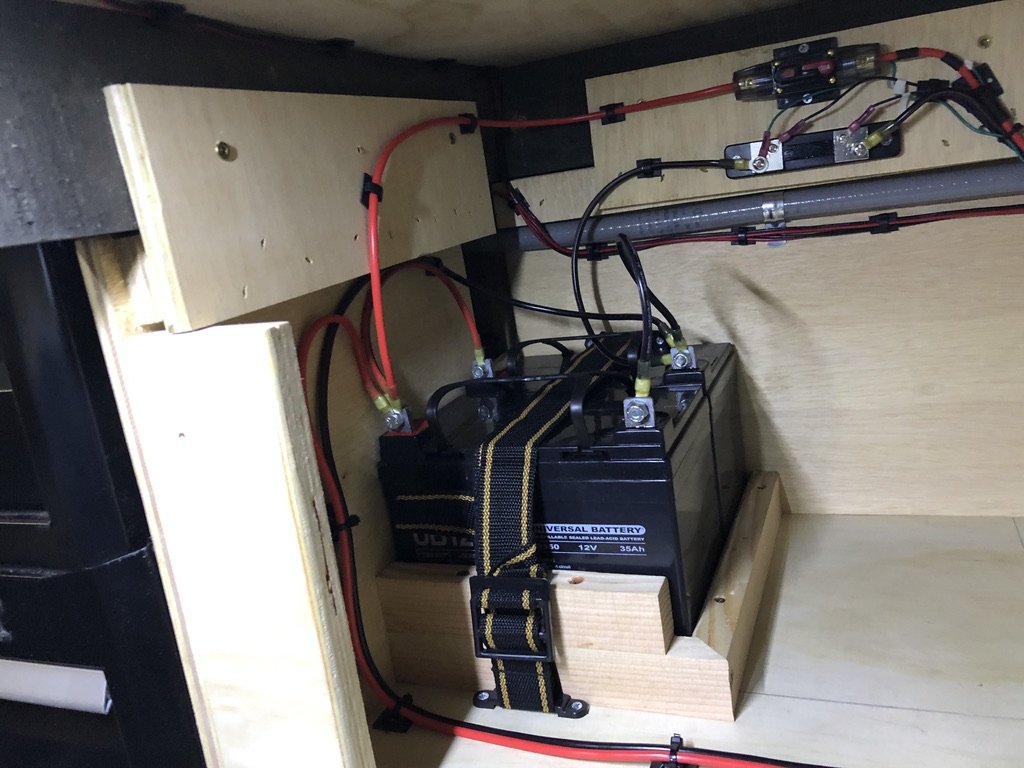

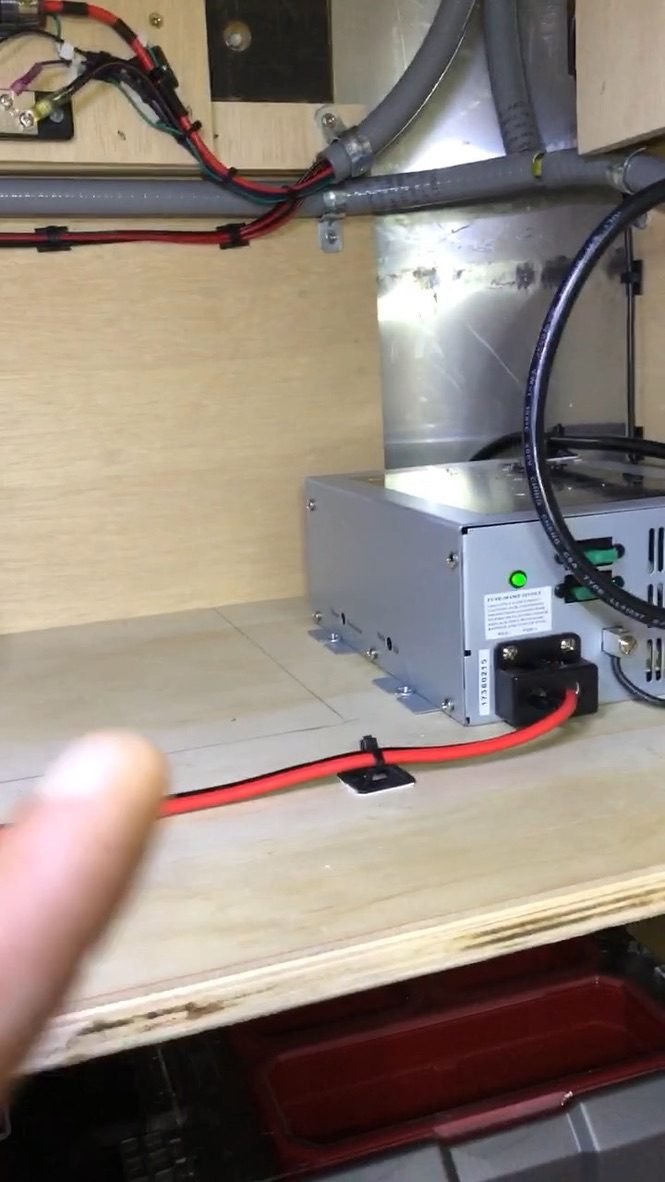

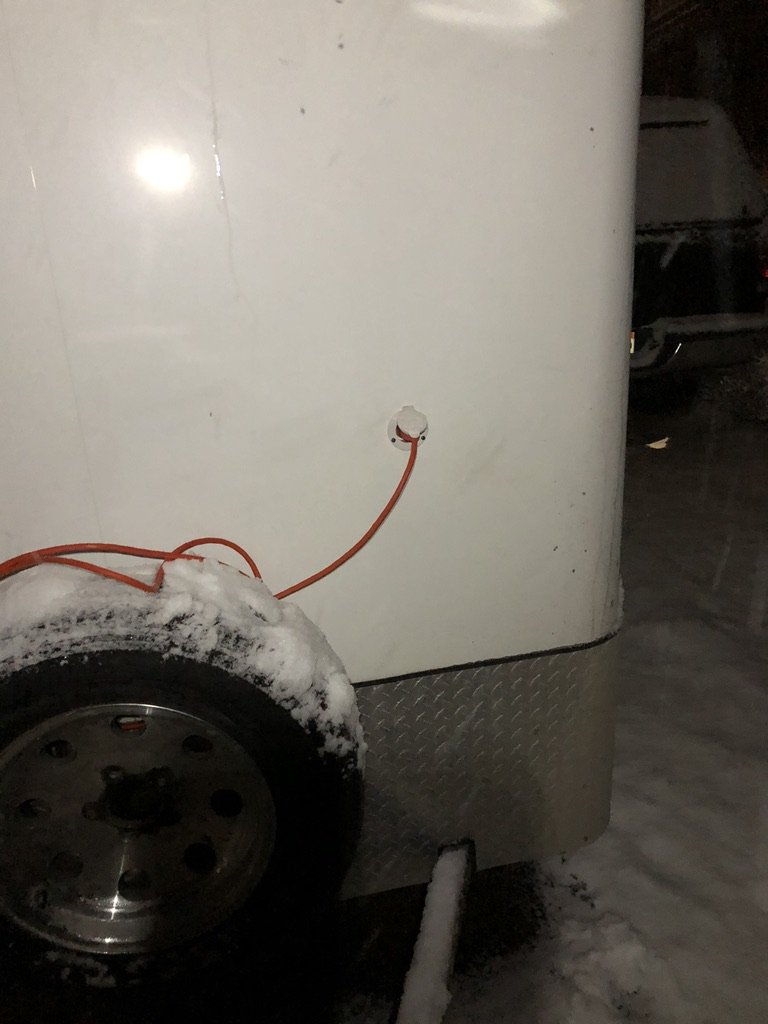

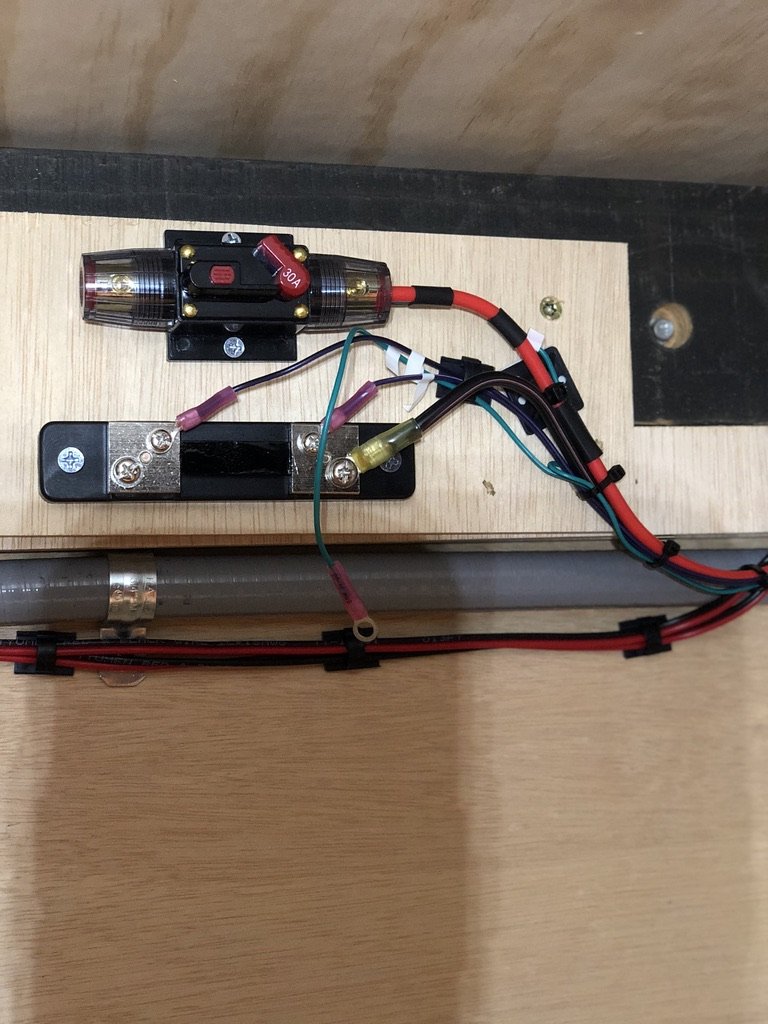

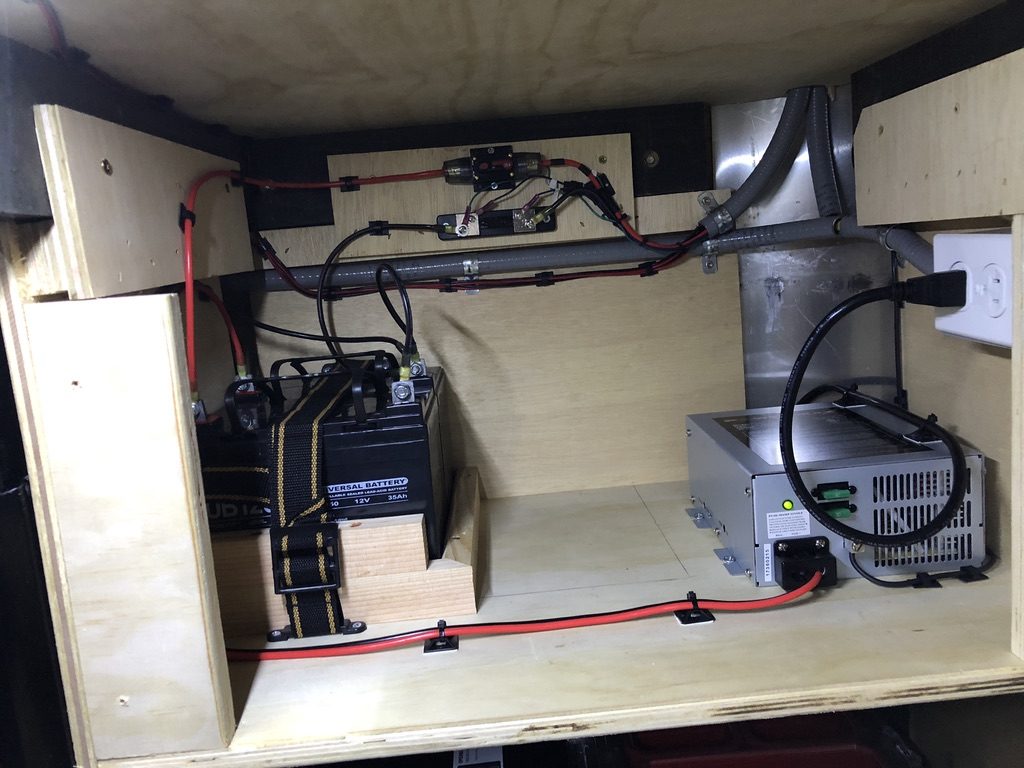

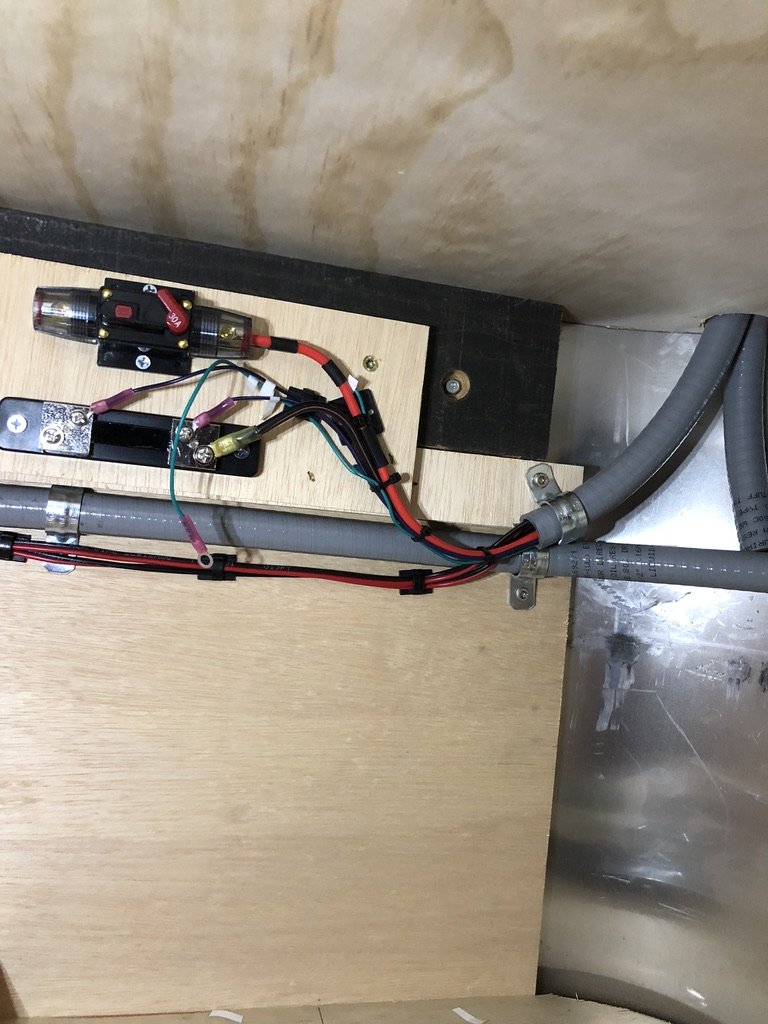

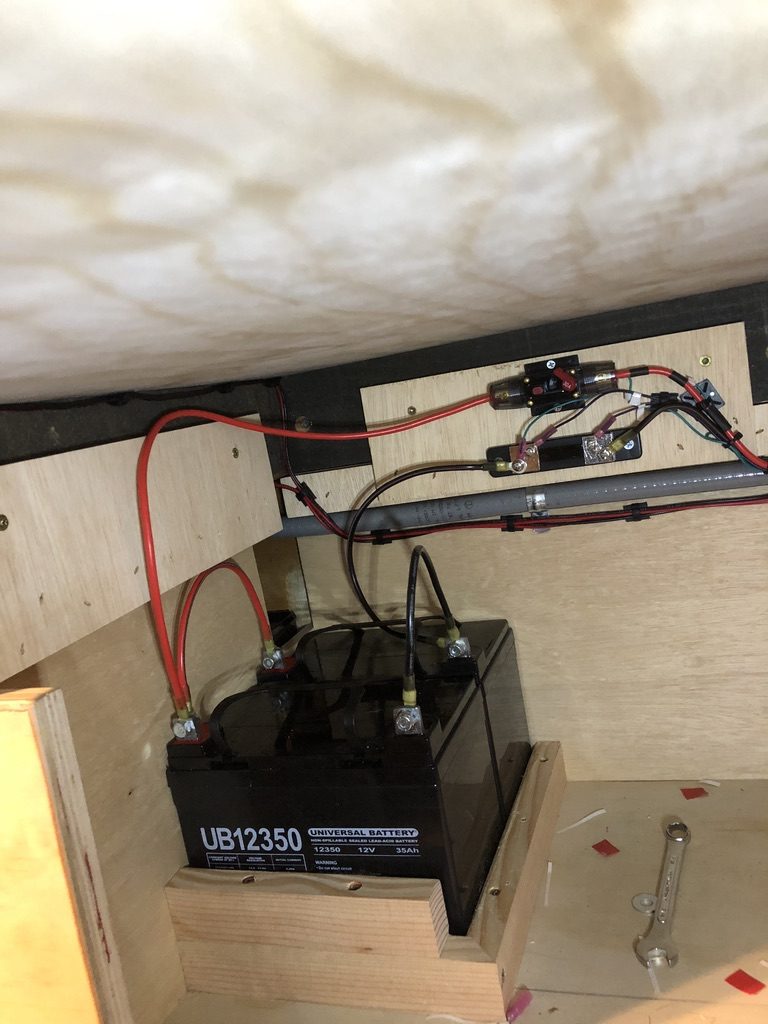

Two independent power sources, one converter that bridges them:

The wire choice matters more than the gauge. Use marine-grade tinned copper, not standard automotive THHN. The copper strands are coated in tin so they don't corrode when they get damp. Cargo trailers get damp. Tinned copper costs about twice what THHN does and lasts about ten times as long.

Color code:

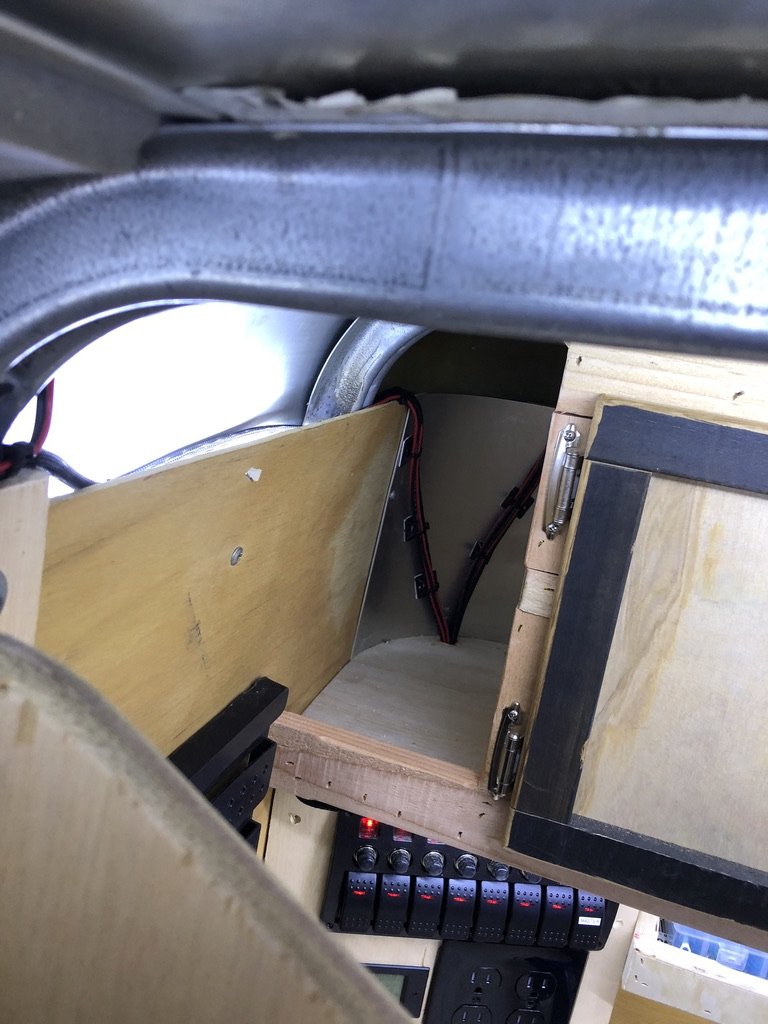

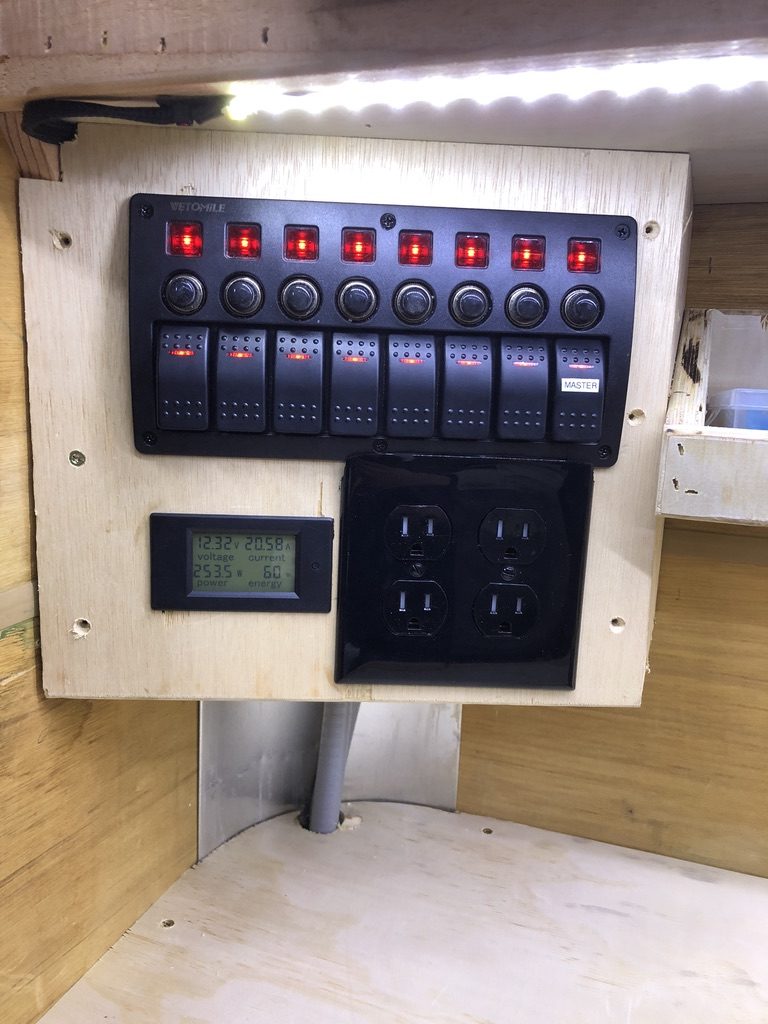

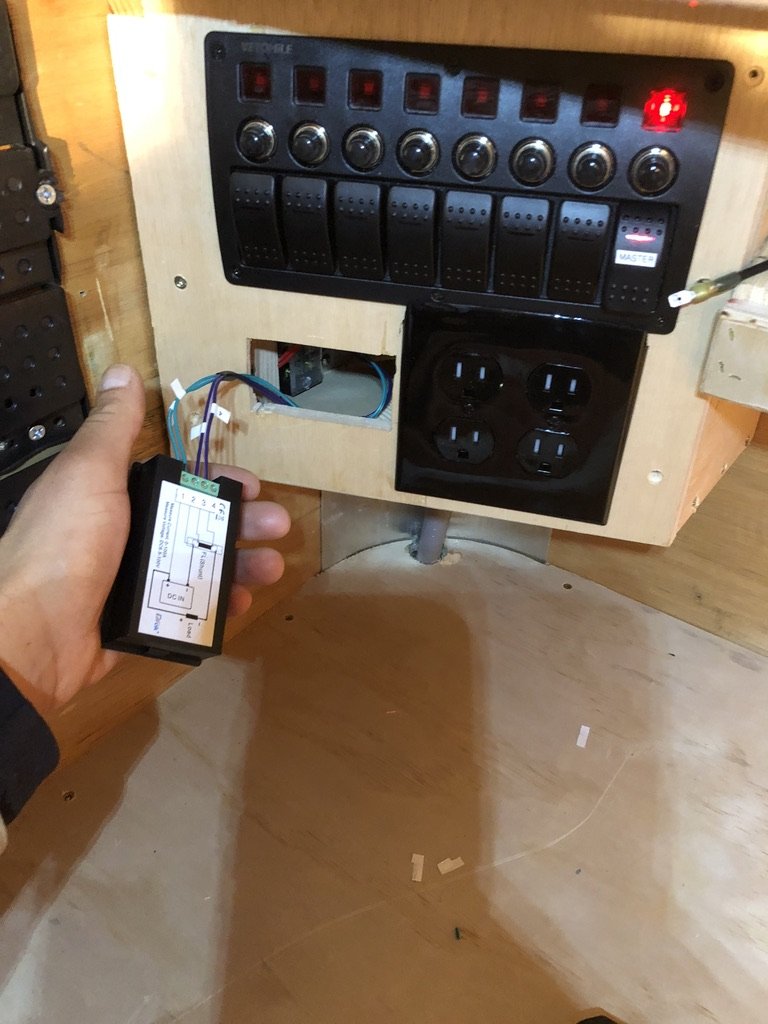

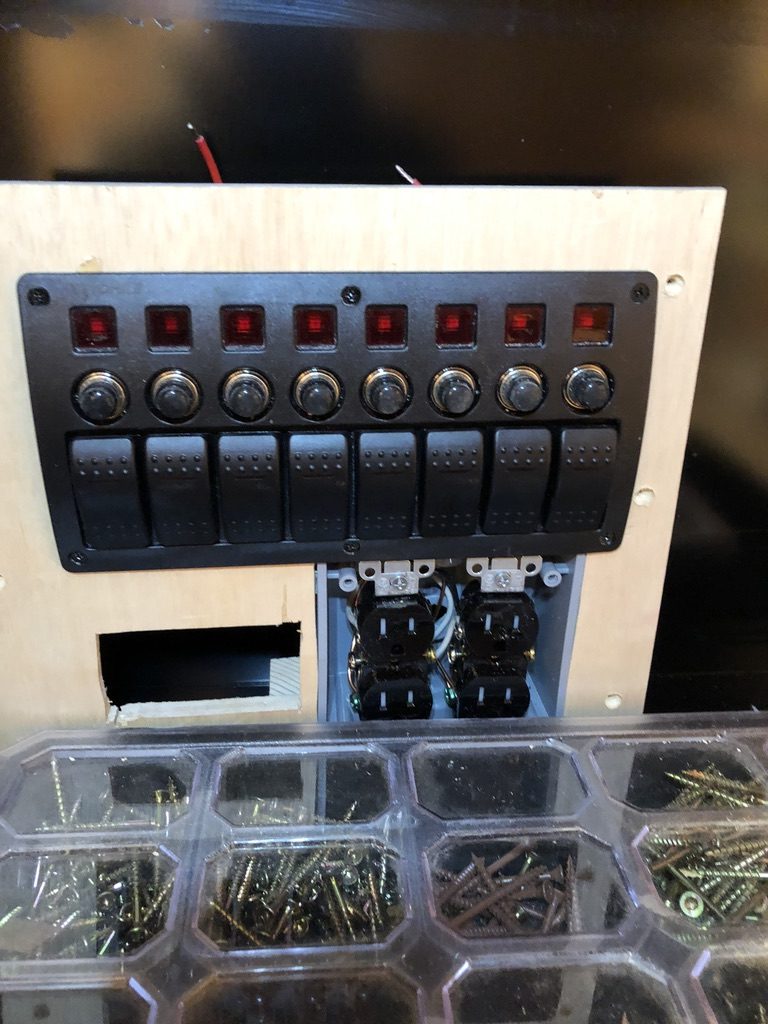

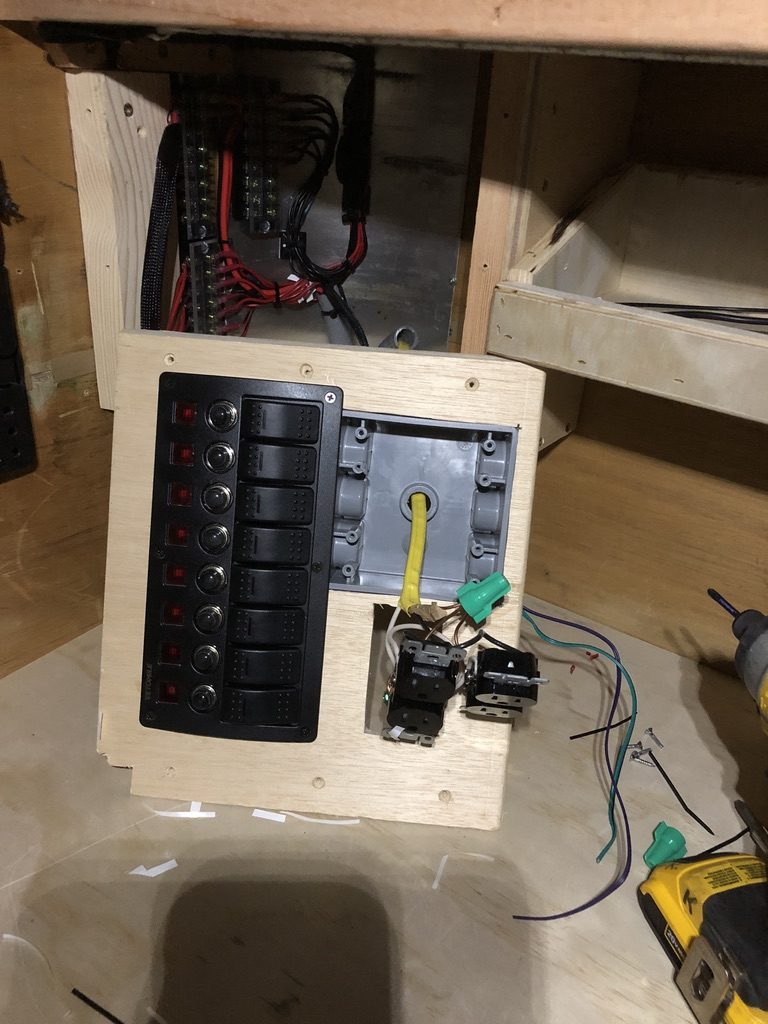

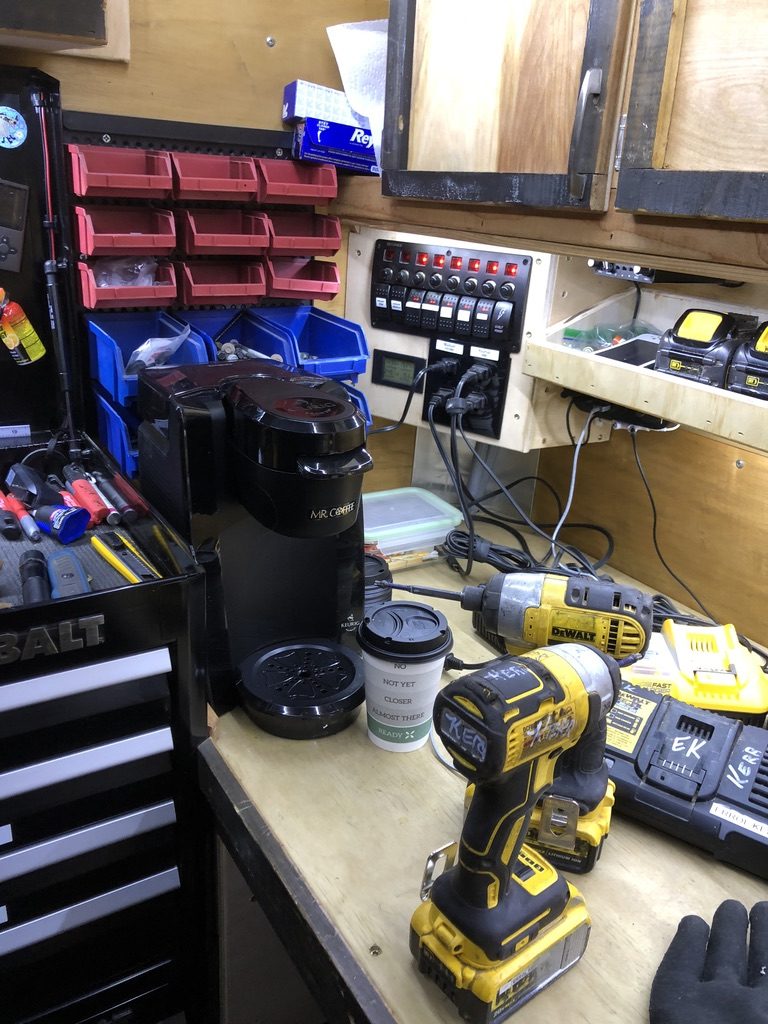

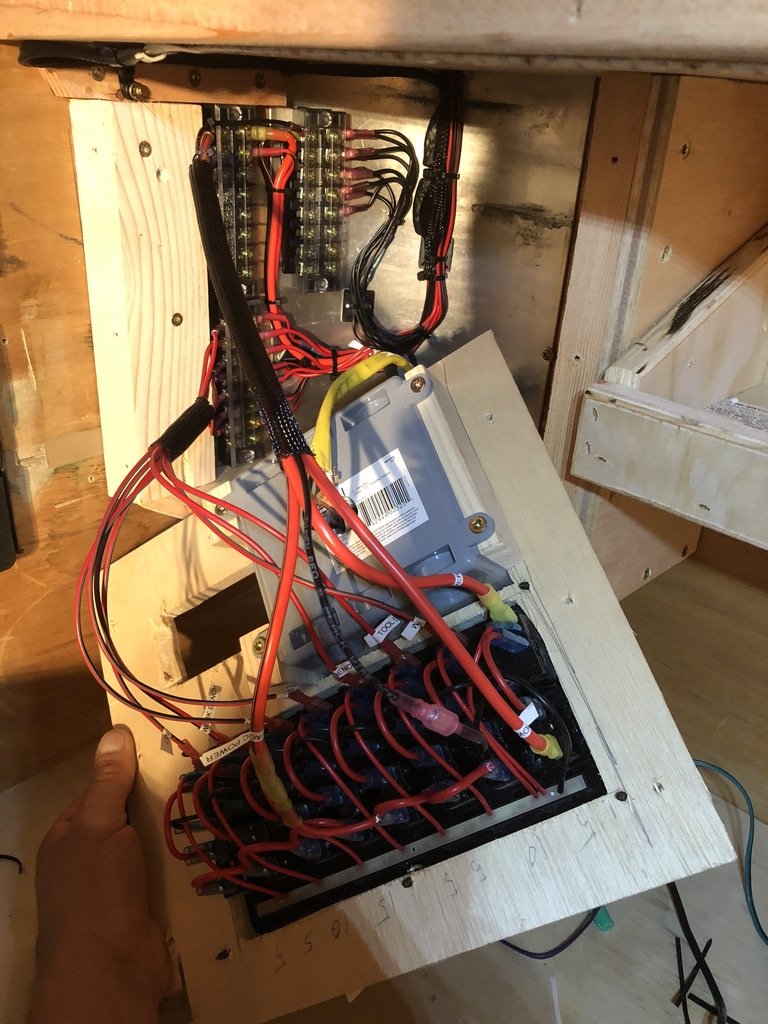

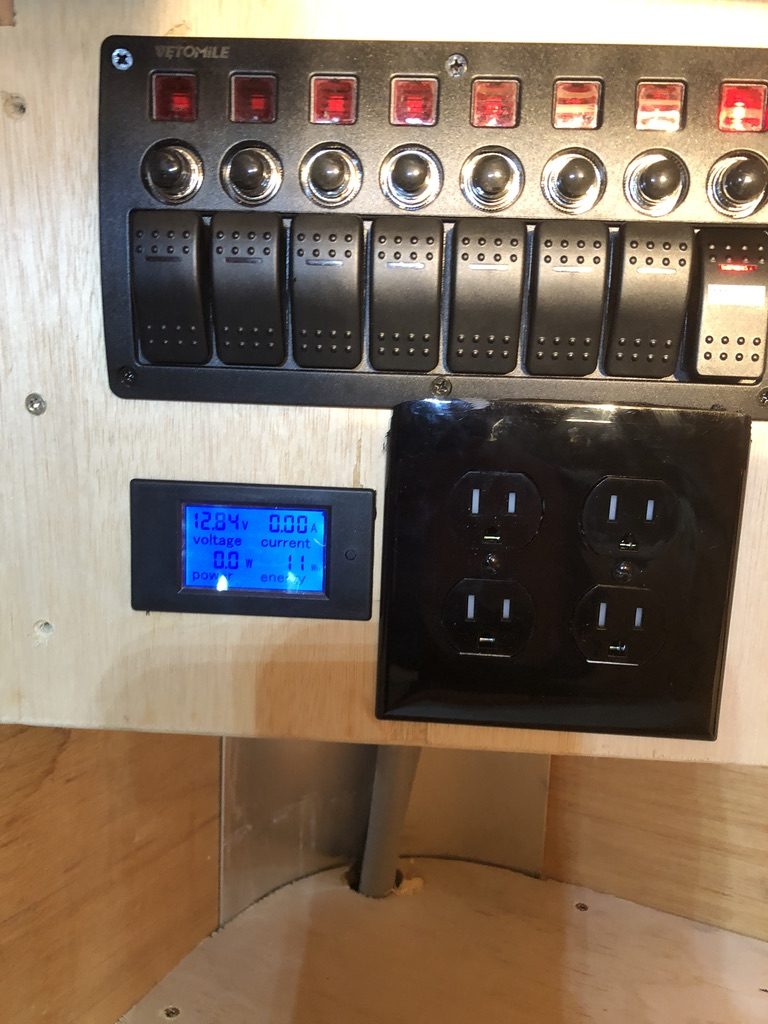

The hero of the build. An 8-position lit marine rocker switch panel — the kind that lives on boats — mounted dead-center in the cabinet face above the workbench. Each rocker is illuminated by its own LED that comes on when the circuit is hot, so you can confirm at a glance: did I leave the work lights on? Yes — that one's glowing.

Each rocker is back-labeled with a label-maker for the next person who picks it up (or for me, three years later, when I've forgotten which switch is which). Each switch ties to its own automotive 10A blade fuse + its own bay on the terminal block. Reach up, click. The right thing lights up, every time.

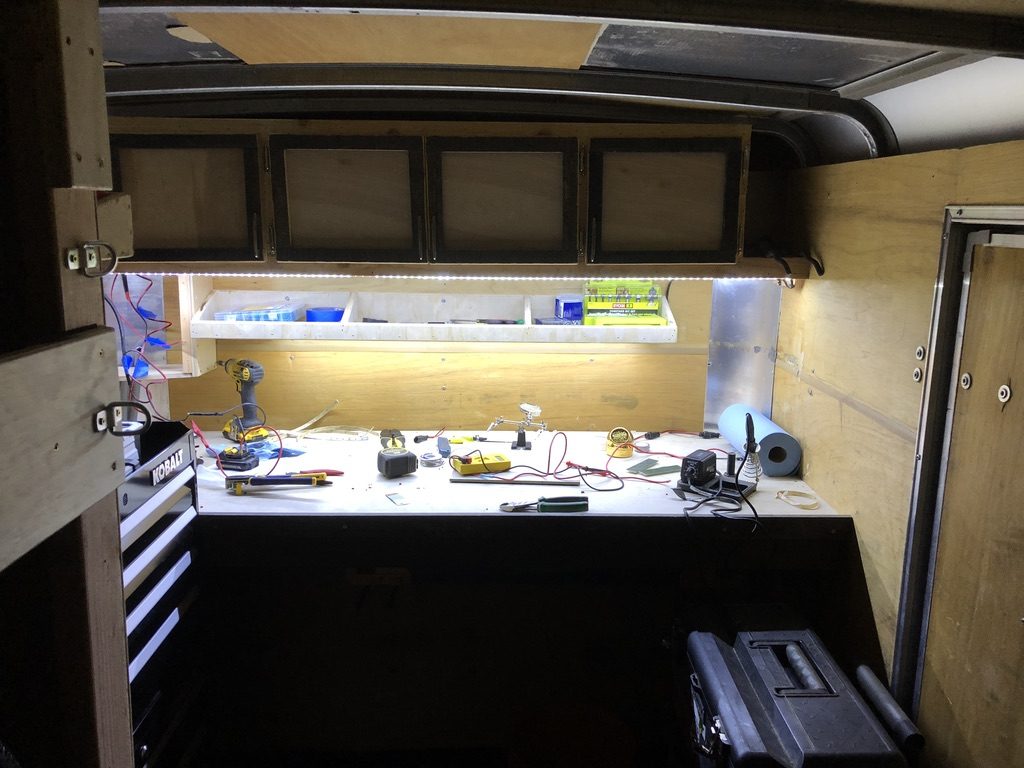

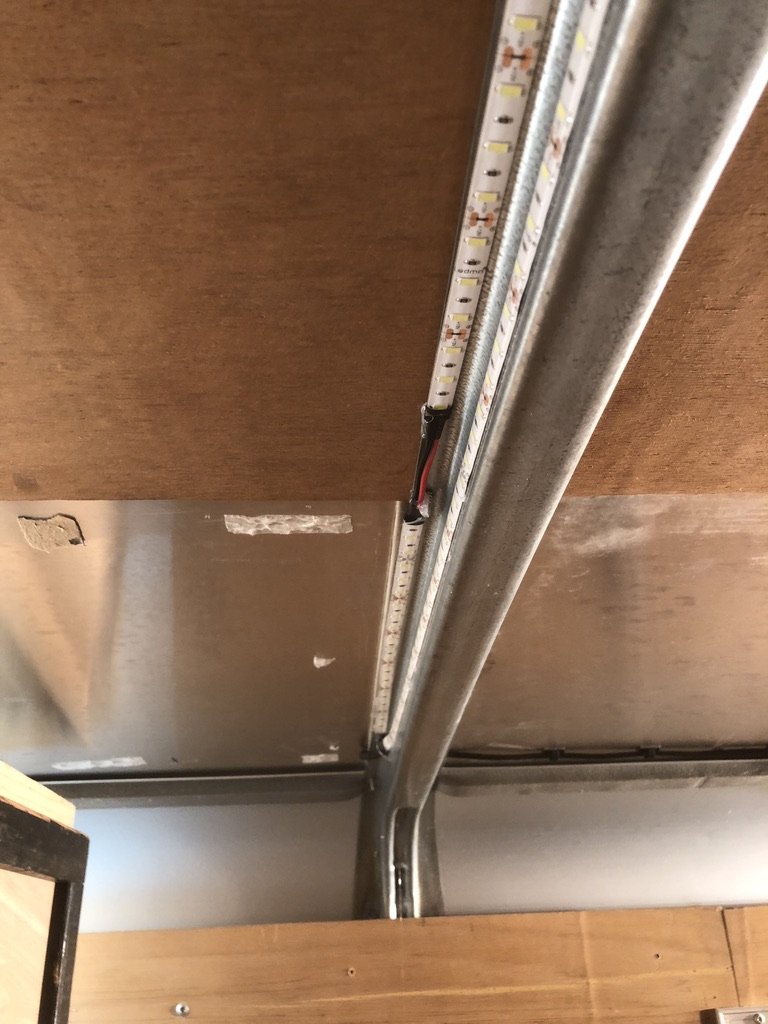

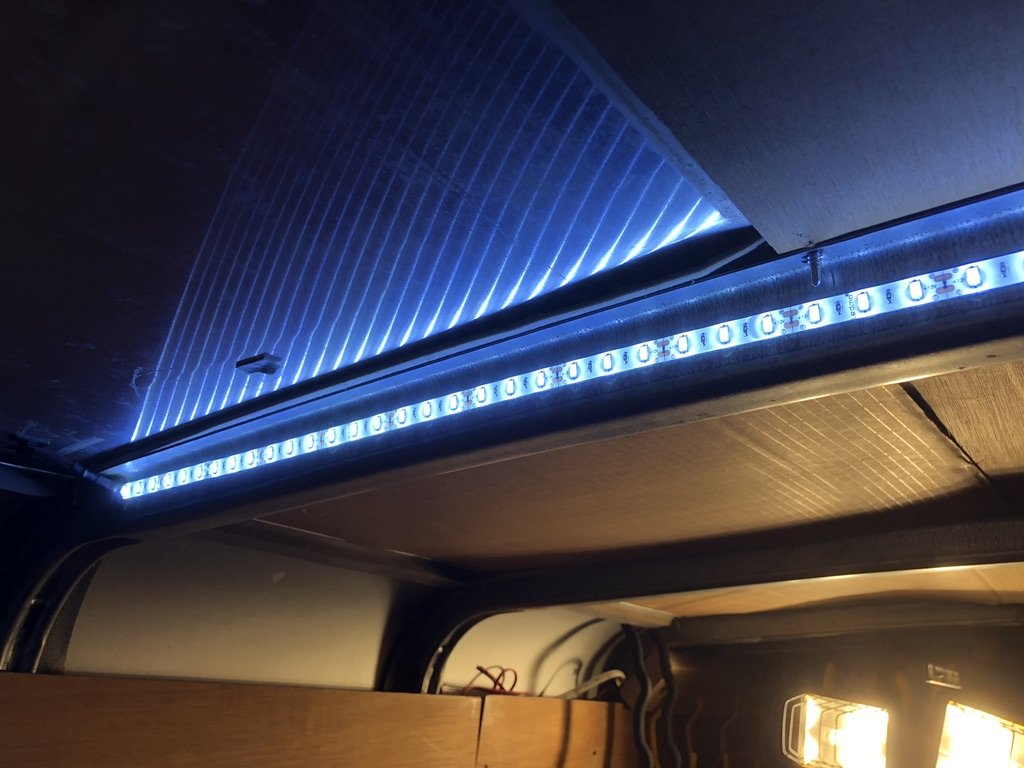

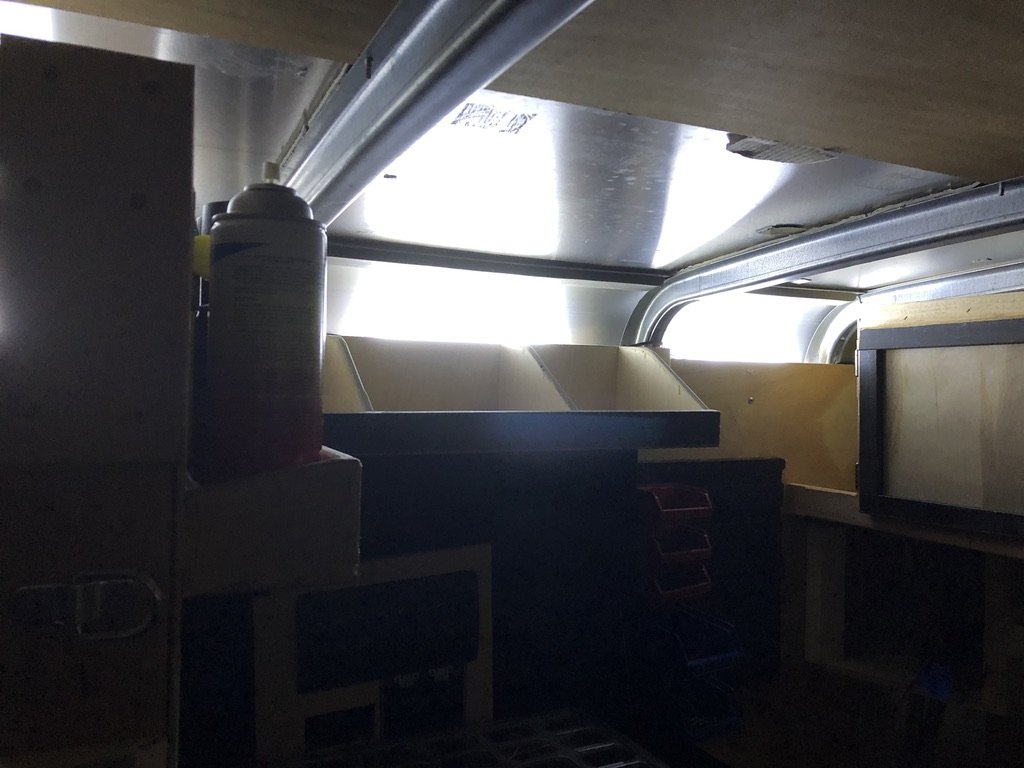

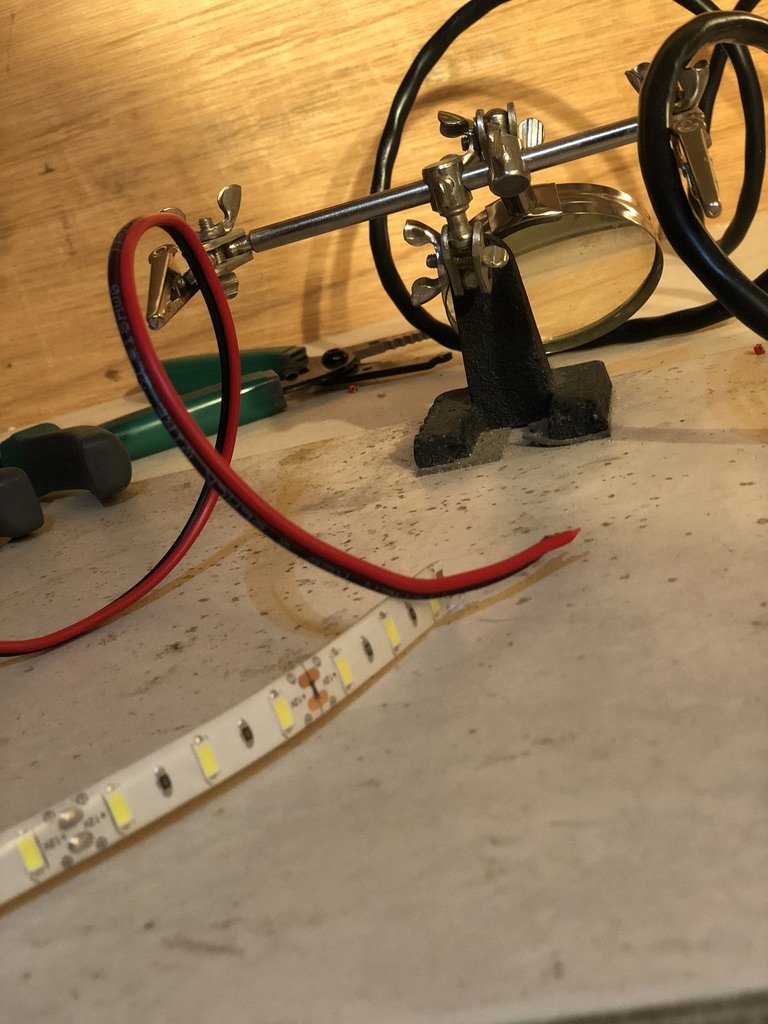

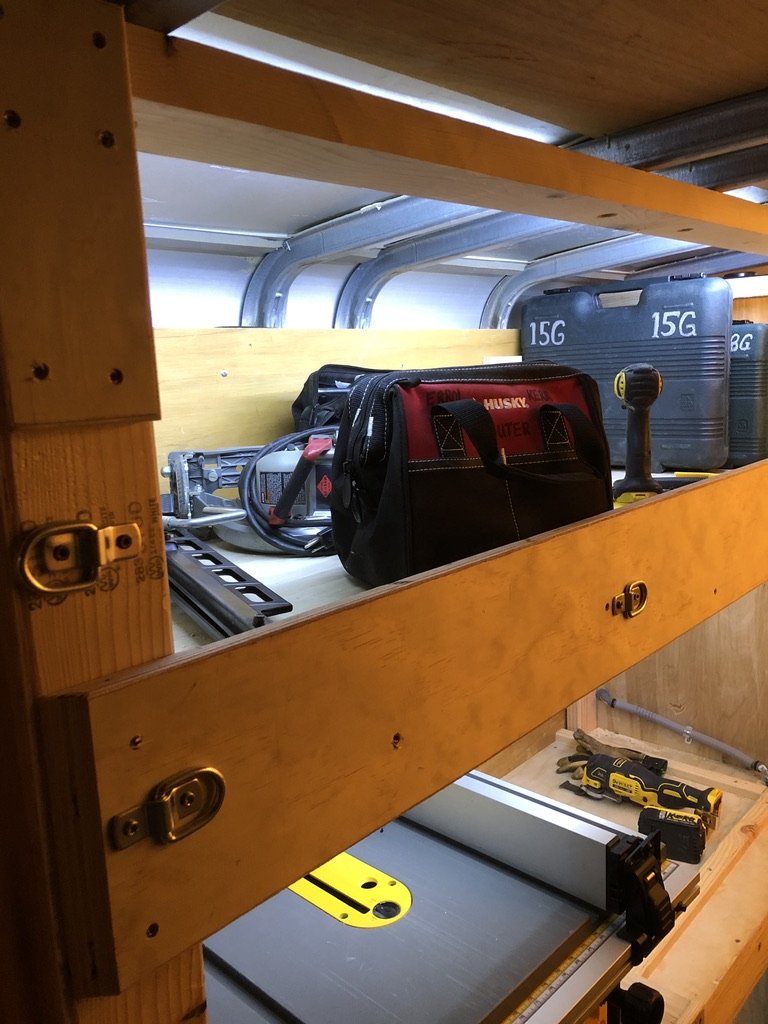

With the wiring in, the lights go up. 12V warm-white LED strip (3000K, ~600 lm/ft) runs along both top headers and above the workbench — even fill across the work area, no shadow under the cabinet face. A second cool-blue accent strip (6500K) behind the cabinet face throws colored wash for the times you need to see what you're doing without flooding the bay. Together they hit a CRI 90+ — finish carpentry colors don't lie under this light.

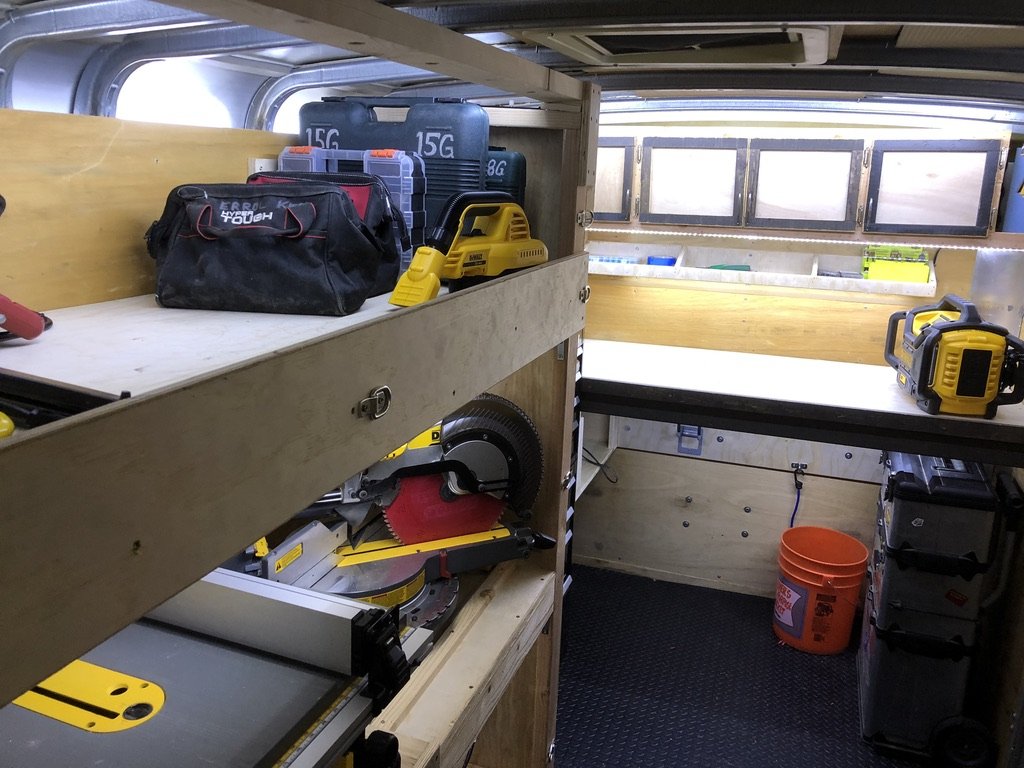

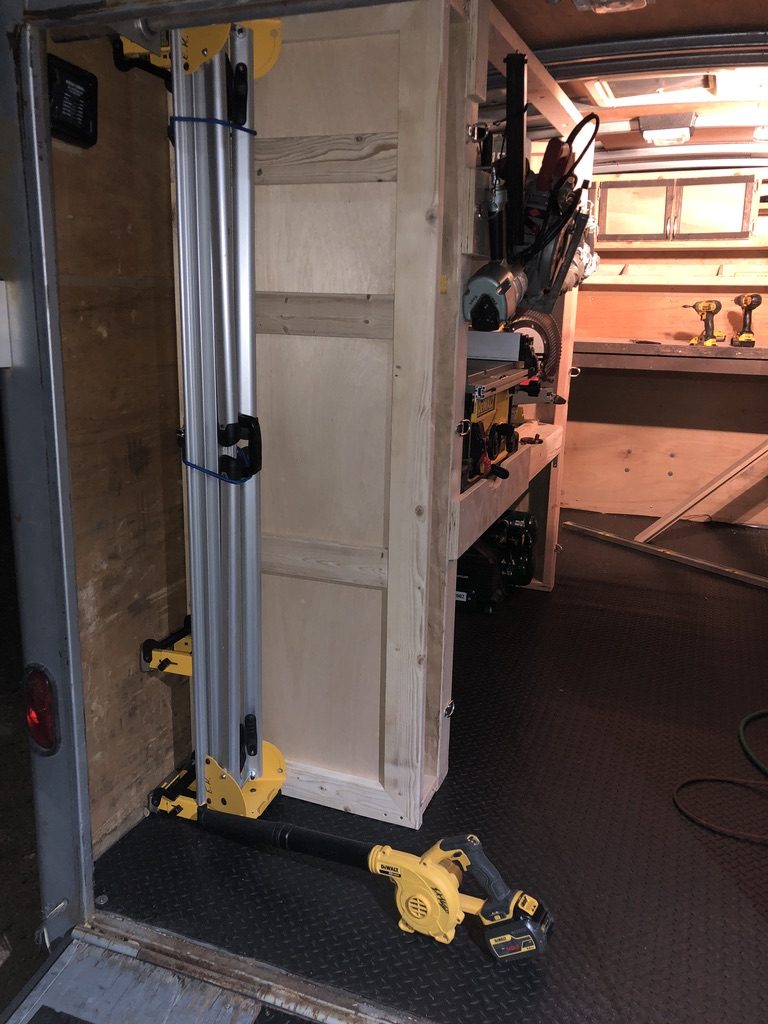

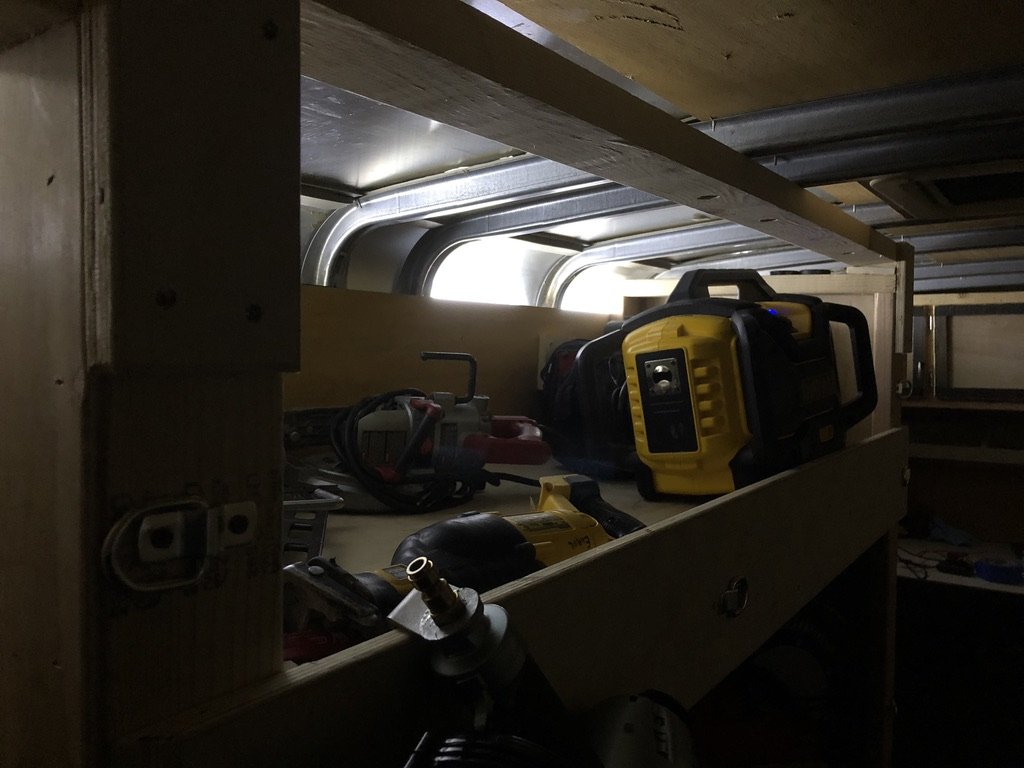

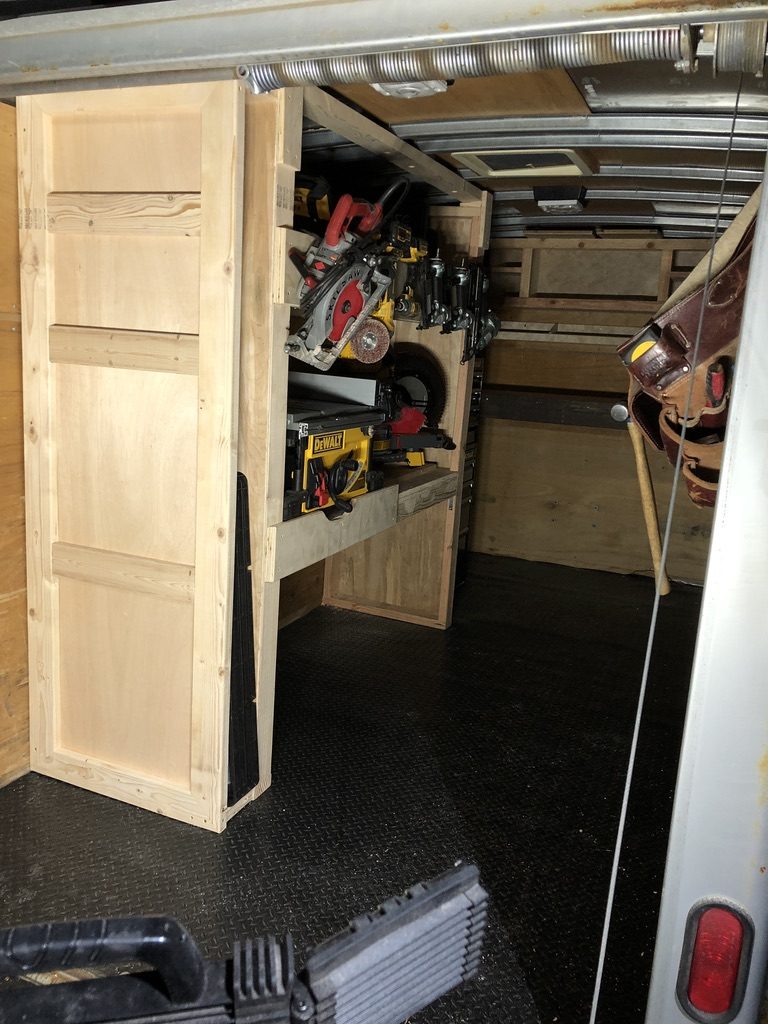

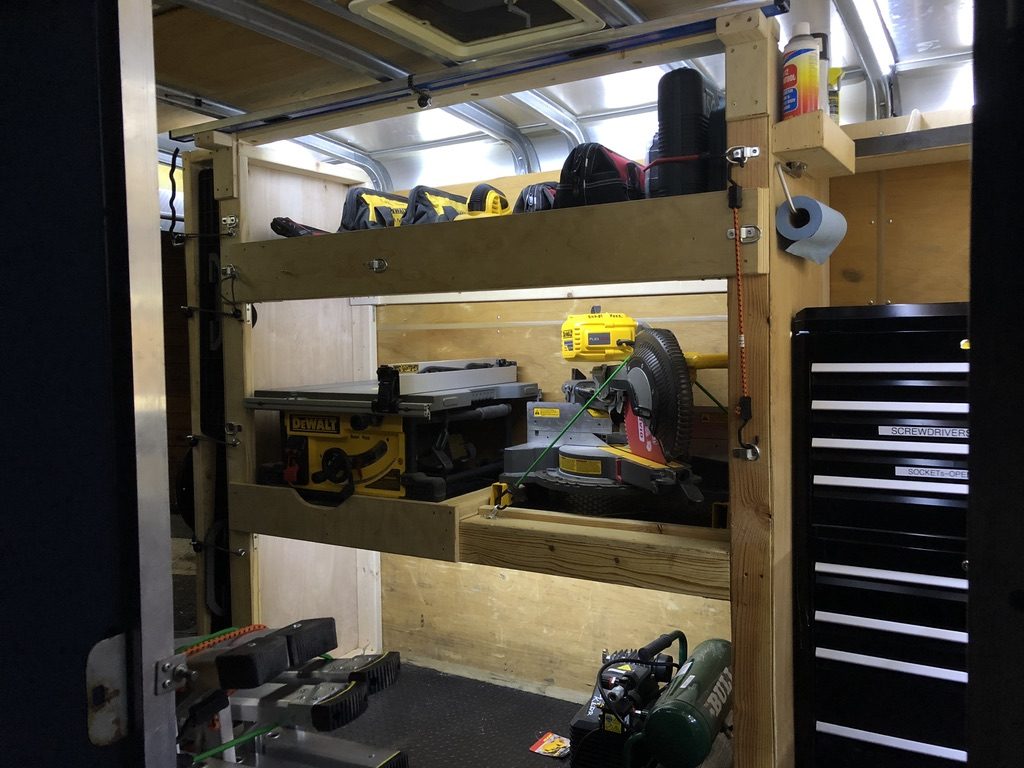

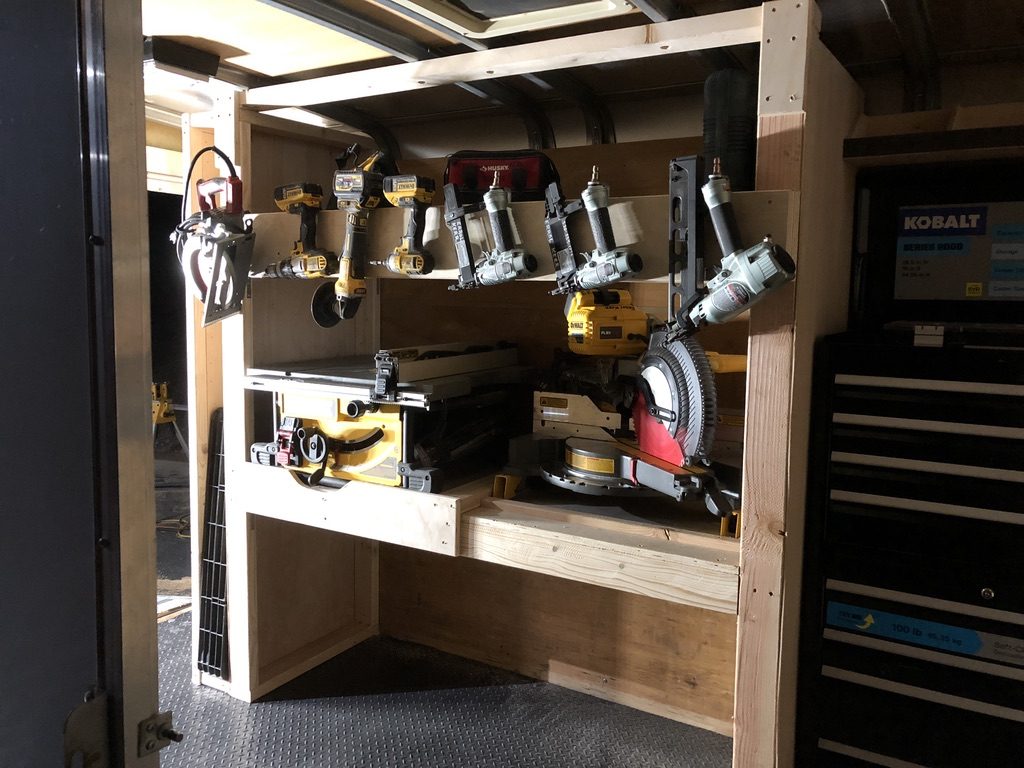

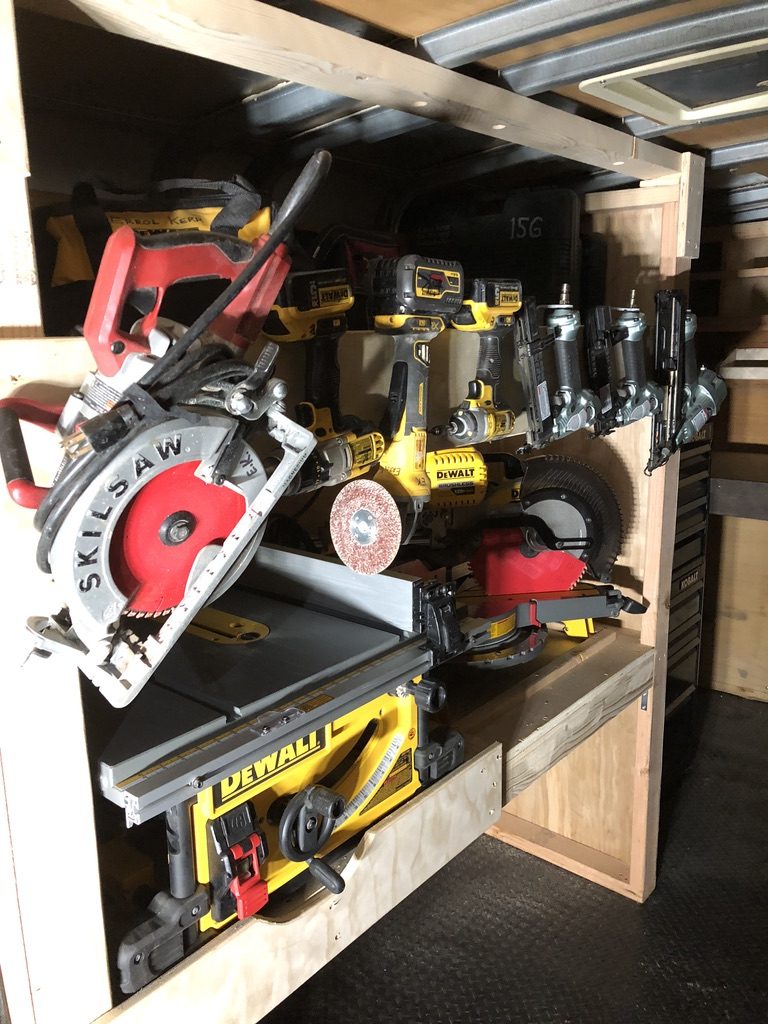

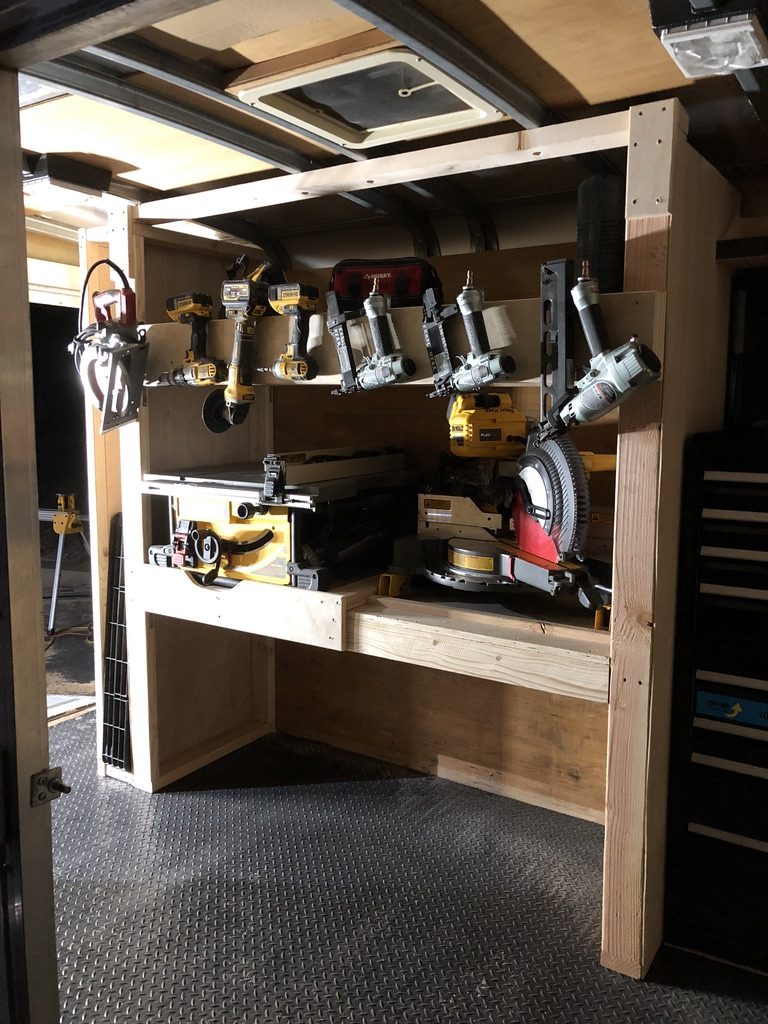

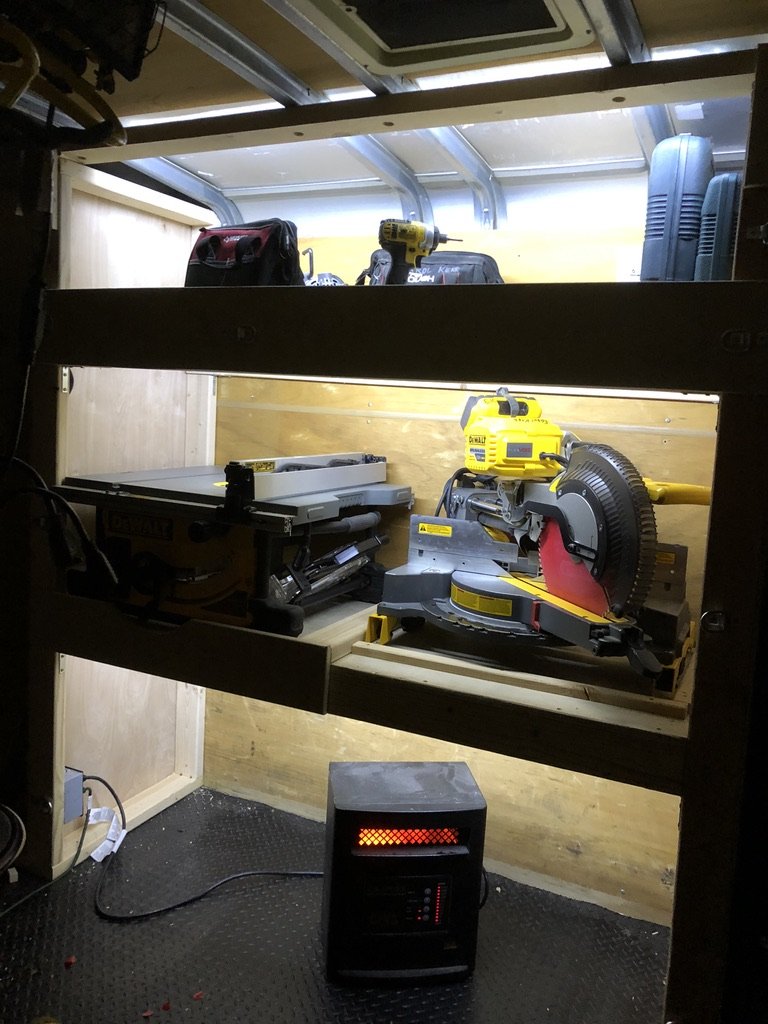

The saws go in next. DeWalt DCS577 8.25" worm-drive + DeWalt DWS779 12" sliding miter, both mounted on dedicated 2×4 + 3/4" plywood saw platforms on the passenger side, with feeder rails that aim straight out the open ramp door. You can cut 16-foot stock without taking the saw outside. That's the design constraint that drove the whole layout — saws aimed out the ramp.

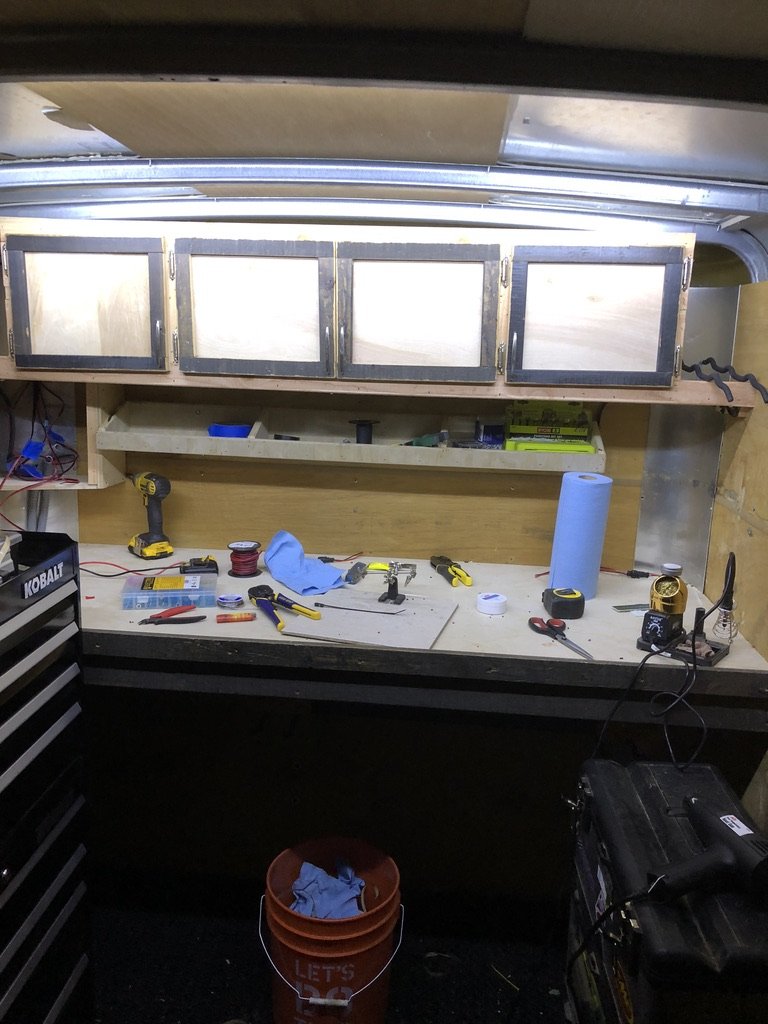

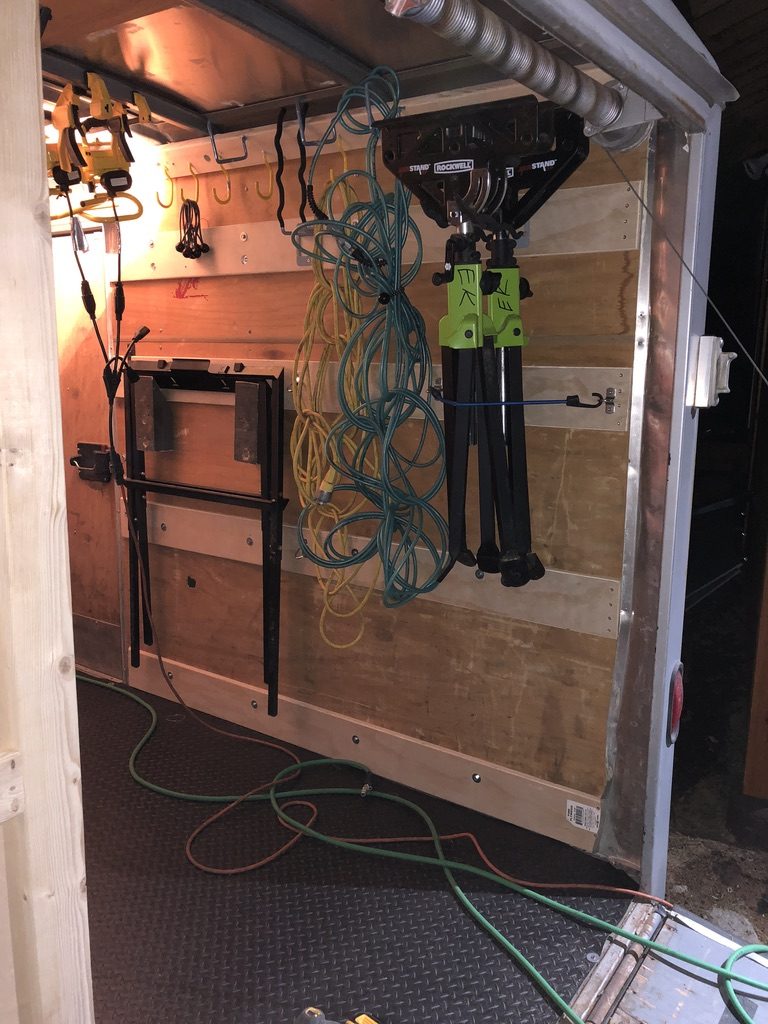

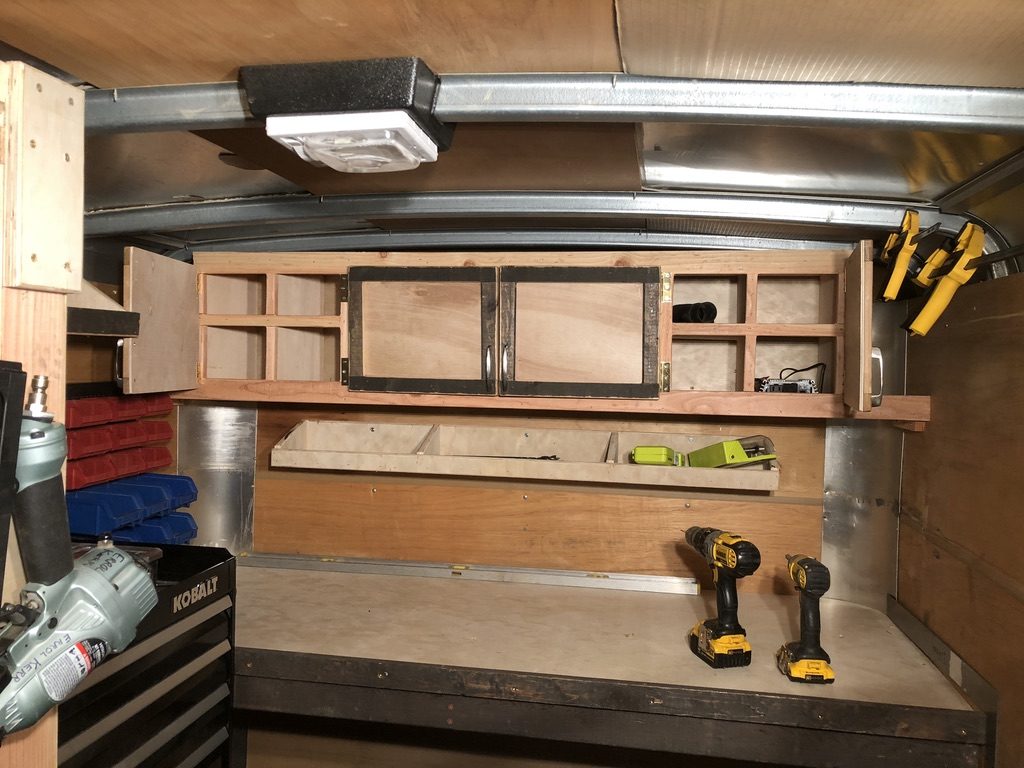

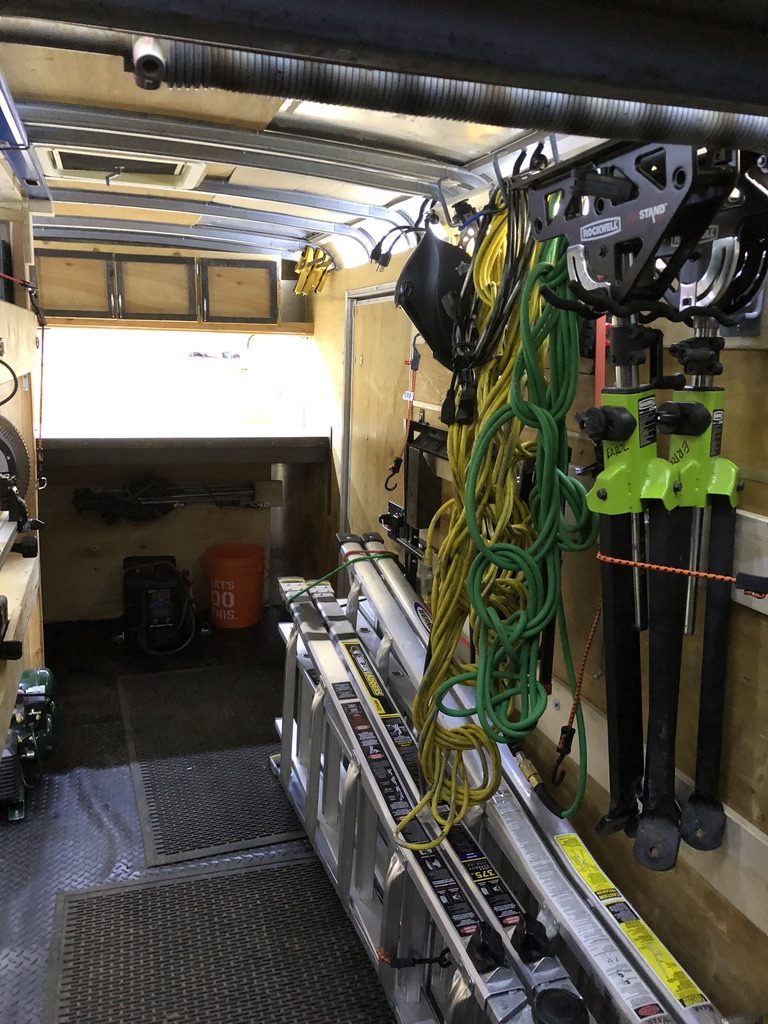

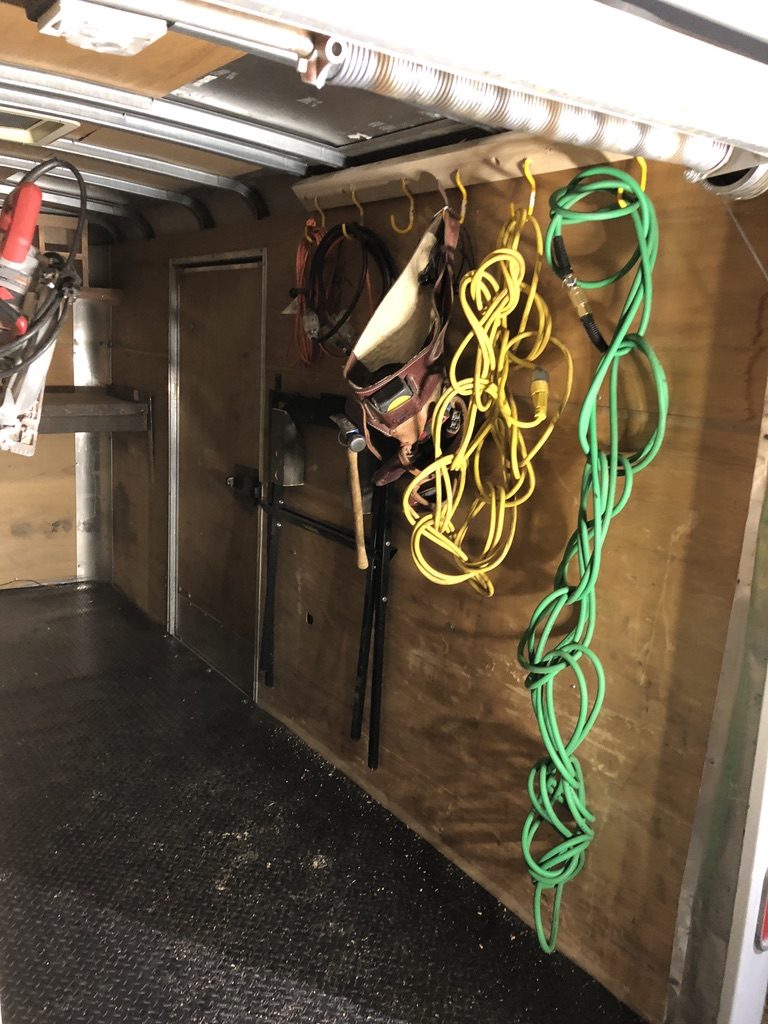

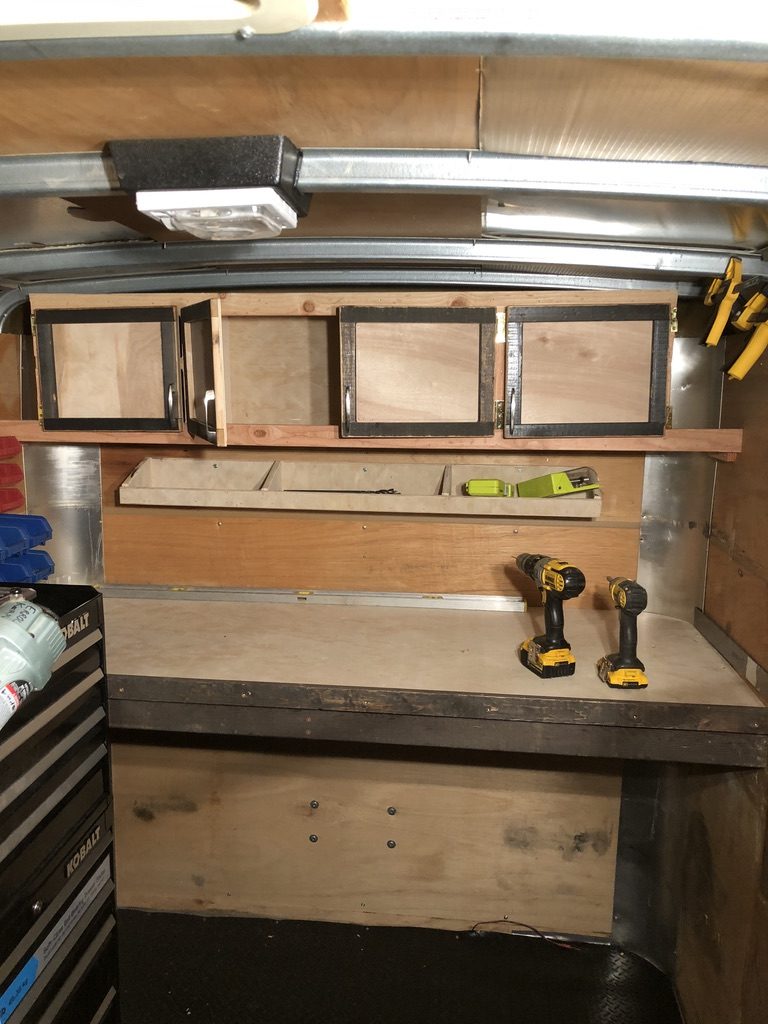

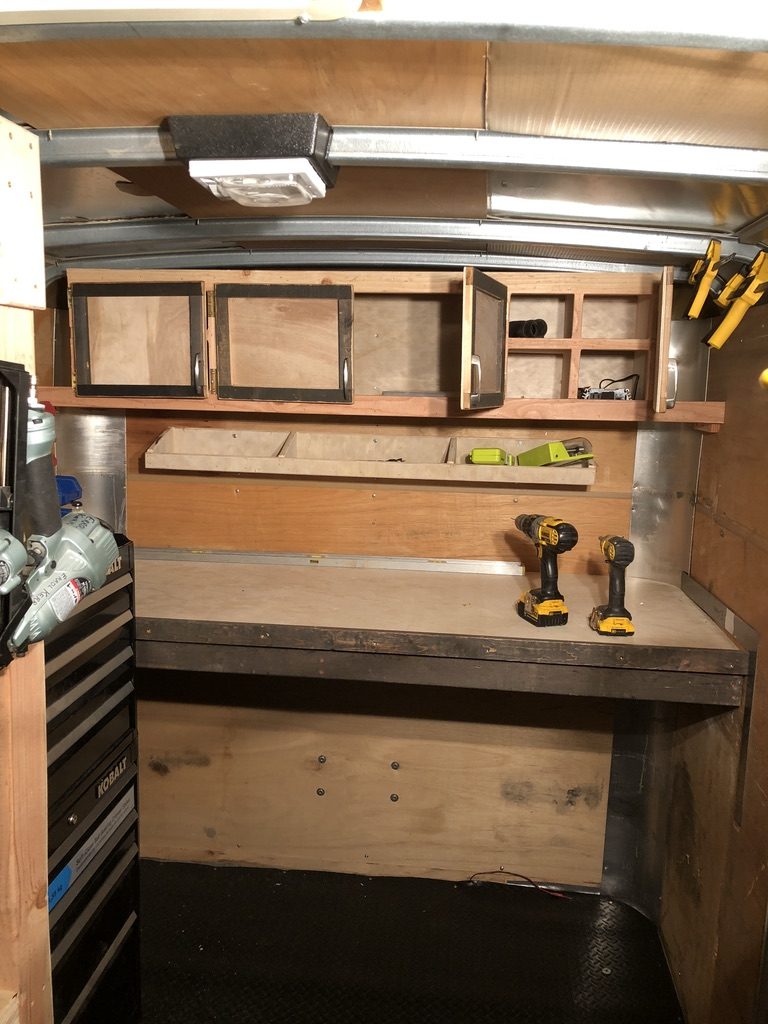

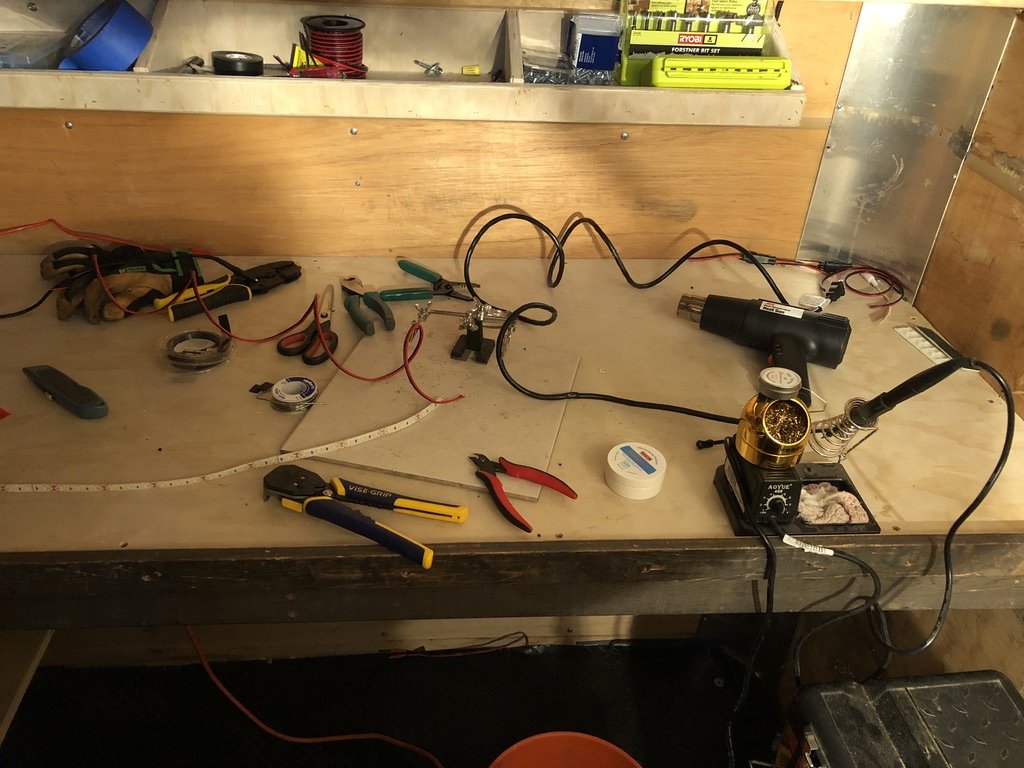

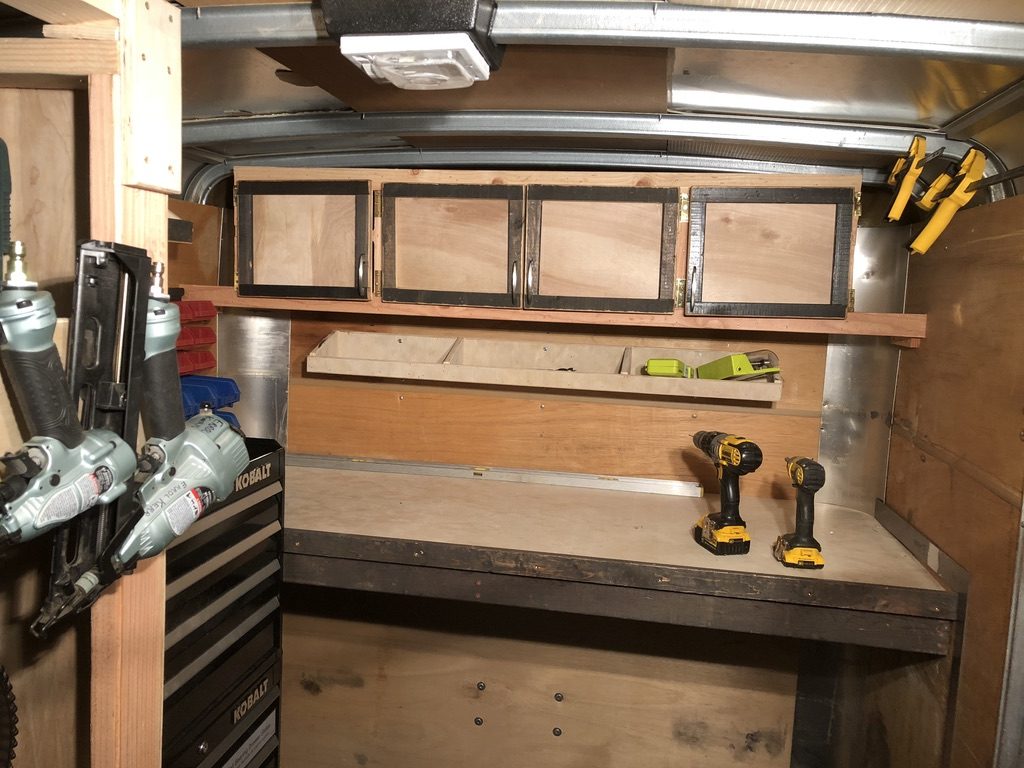

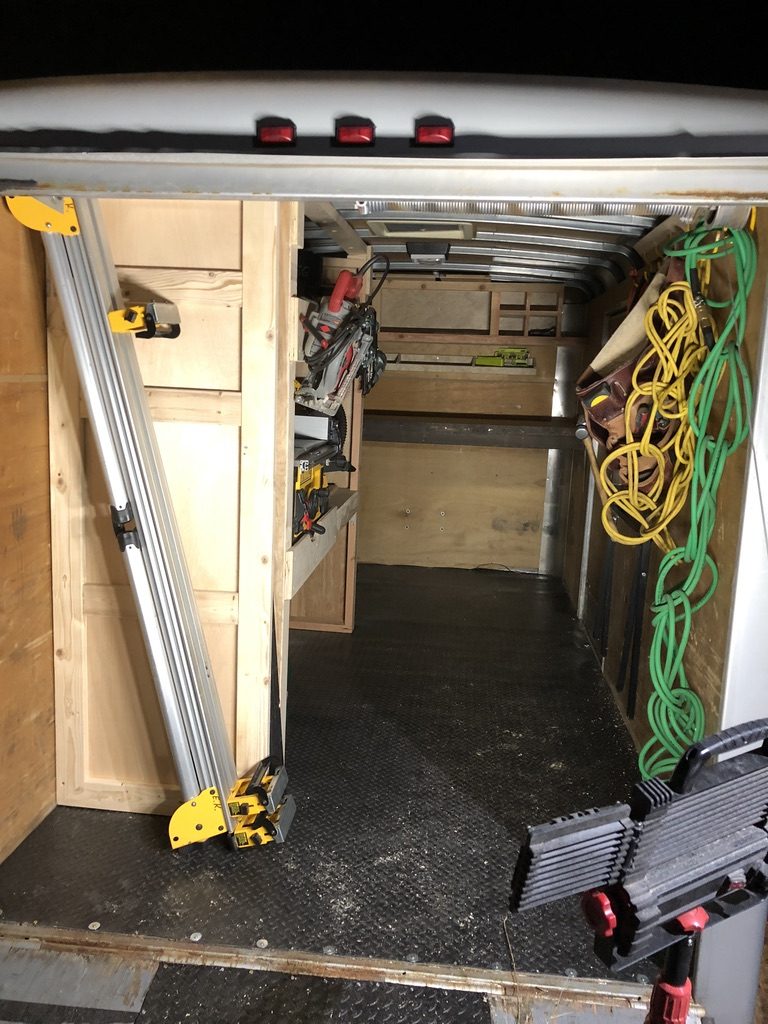

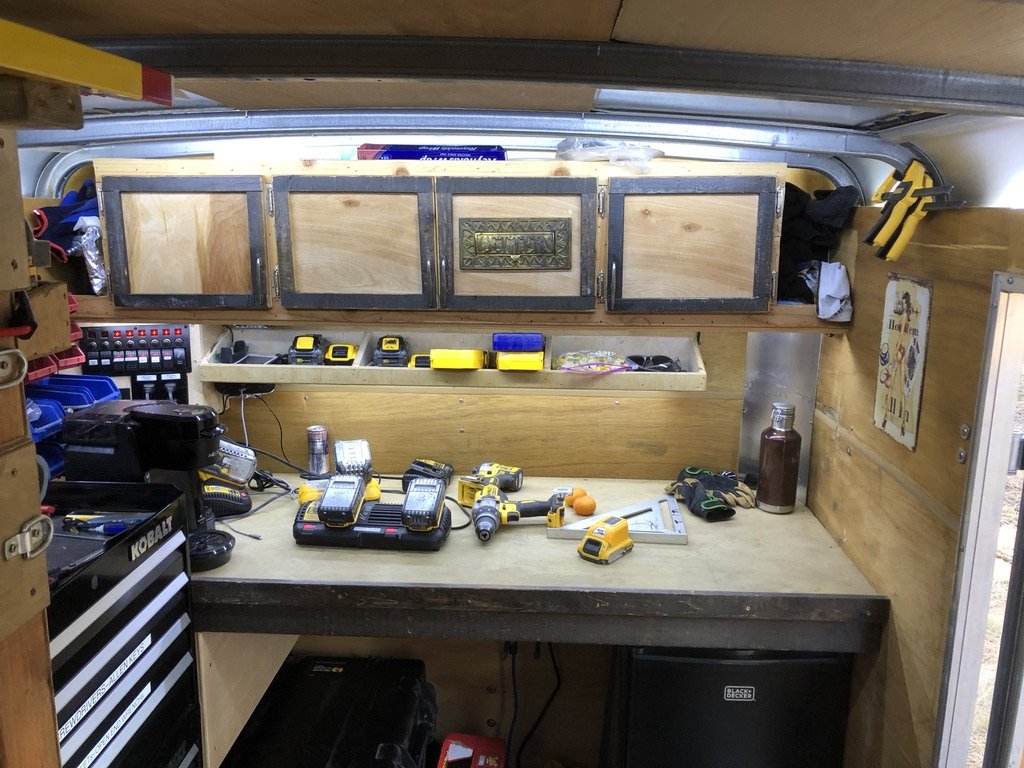

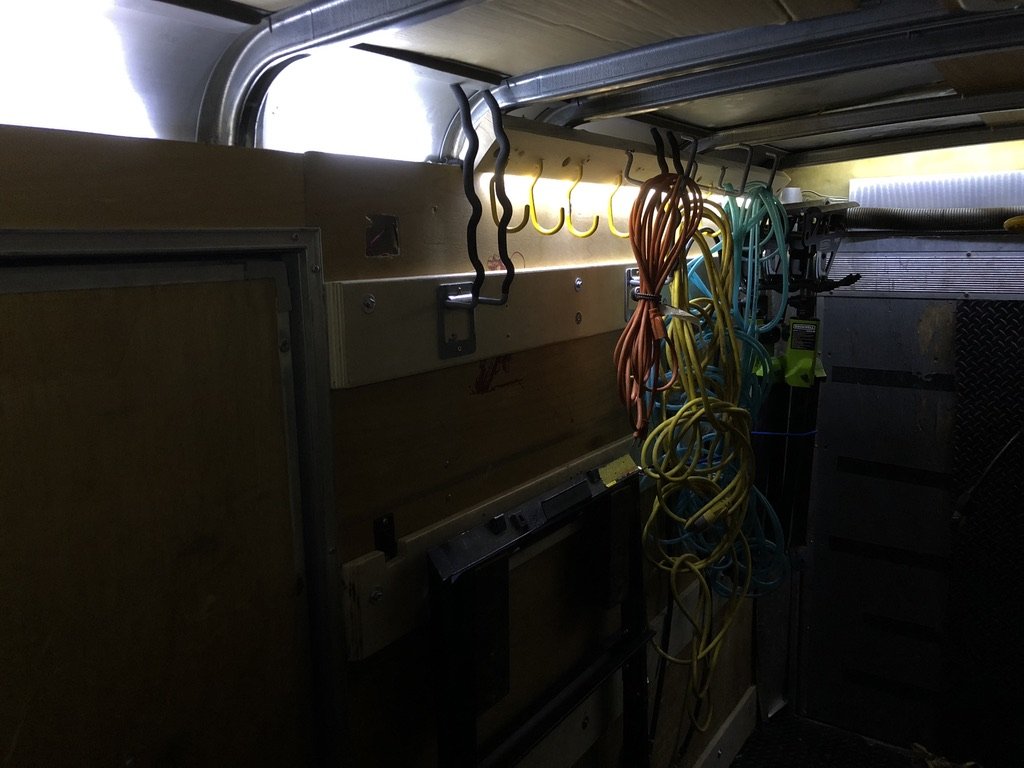

Workbench top: 2×4 frame, 3/4" plywood, mounted into the side studs at standing-cut height (36" off the floor). Aluminum L-trim around the front edge so the plywood face doesn't splinter. Cable management at the roof — extension cords (orange · yellow · blue, color-coded by length) hang on bent rebar hooks above the workbench.

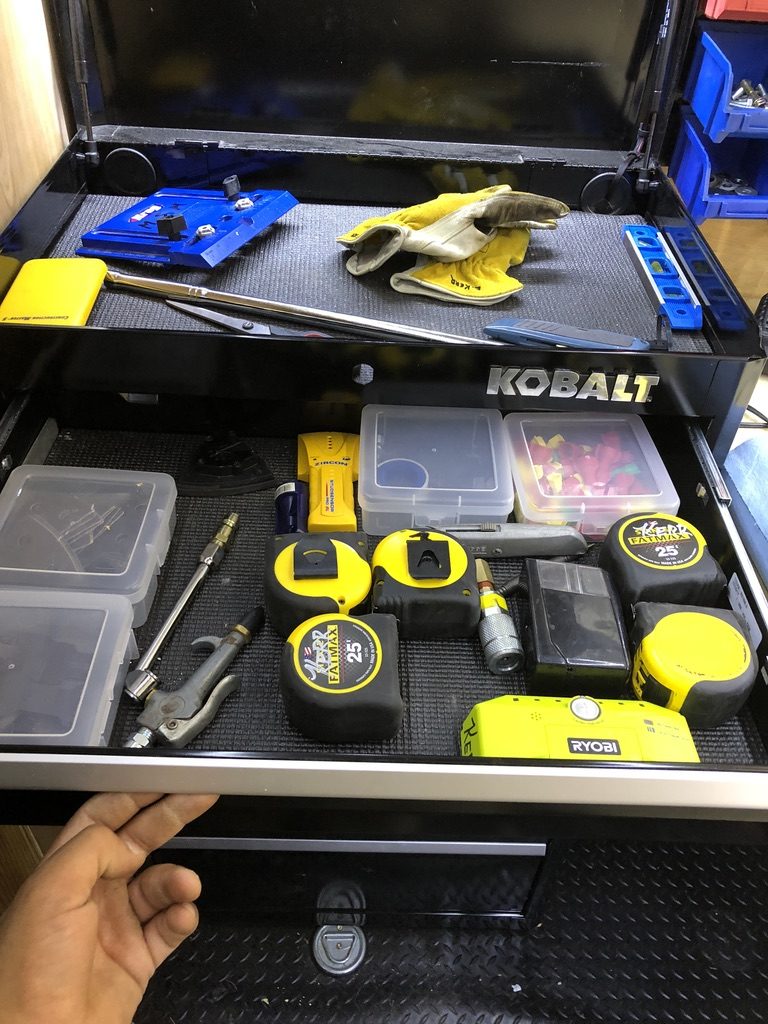

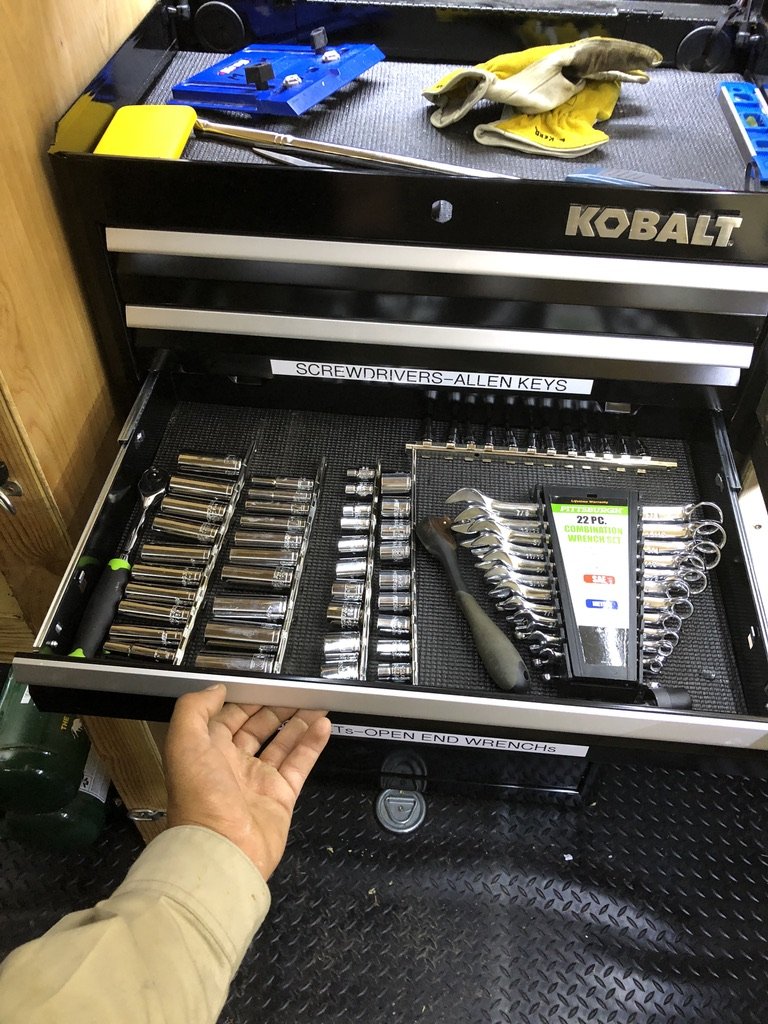

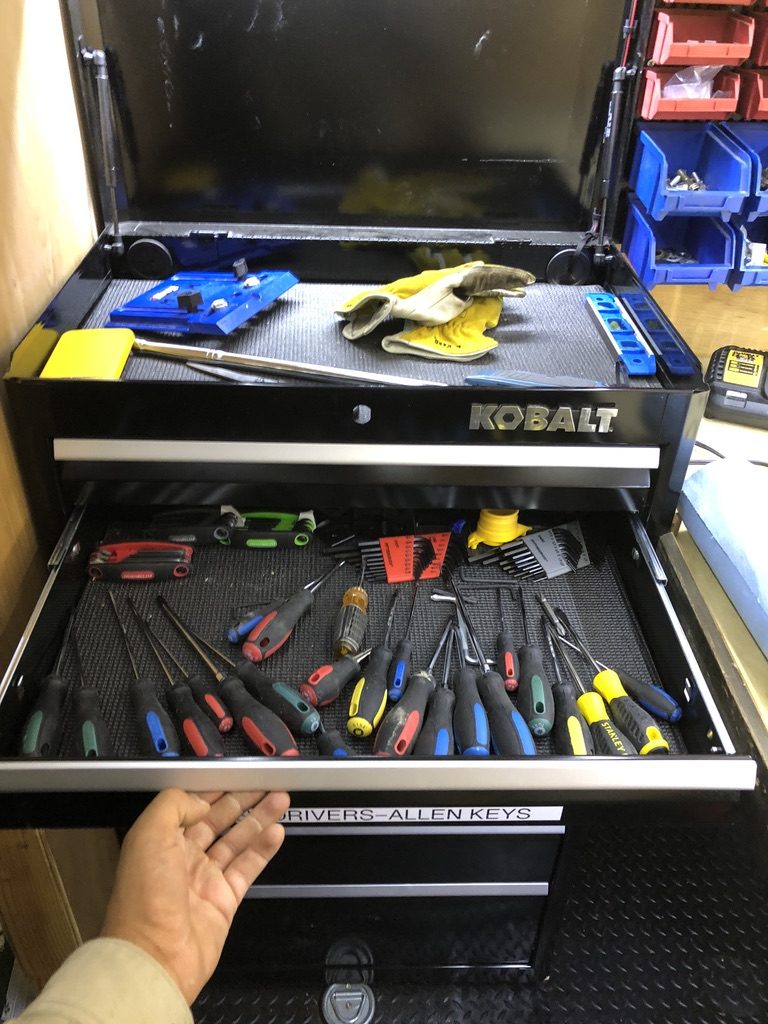

The tool wall. Pegboard panels mount on every spare cabinet face with custom hooks for the DeWalt 20V Max line — impacts (DCF887, DCF889), drills (DCD996), multi-tools (DCS356), sanders (DCW210), the cordless circular saw (DCS577 in cordless trim too). Drawer-by-drawer the Kobalt chest populates with sockets, screwdrivers, hand tools, all sorted by use frequency.

The pegboard logic: highest-use tools (impacts, drills) live at chest height. Lowest-use tools (specialty saws, oddball attachments) live high or low. Sharp objects always live in drawers, never on pegboard, because pegboard hooks fail and sharp things falling is bad. Every tool has a Sharpie-traced silhouette on the pegboard so you can see at a glance what's missing from a site — and what got walked off with.

Aluminum + diamond-plate trim around the workbench front edges. This is the polish that earns the "real shop" feel — not the price, the polish. Diamond plate corners cost $40 and add fifty IQ points to the build.

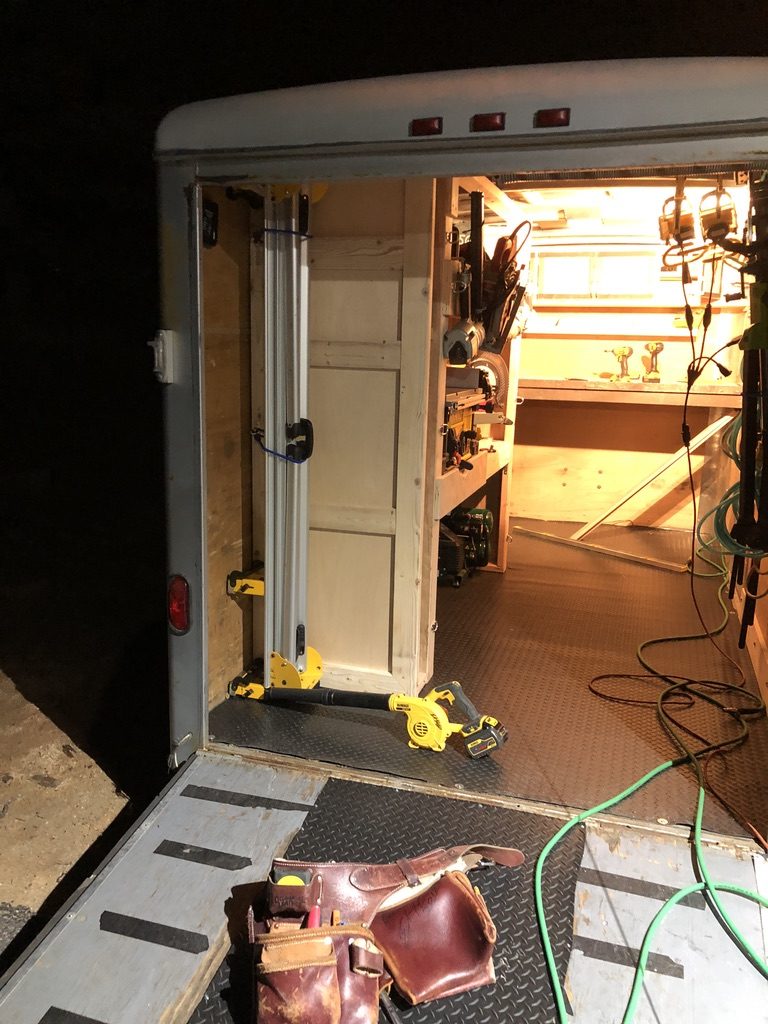

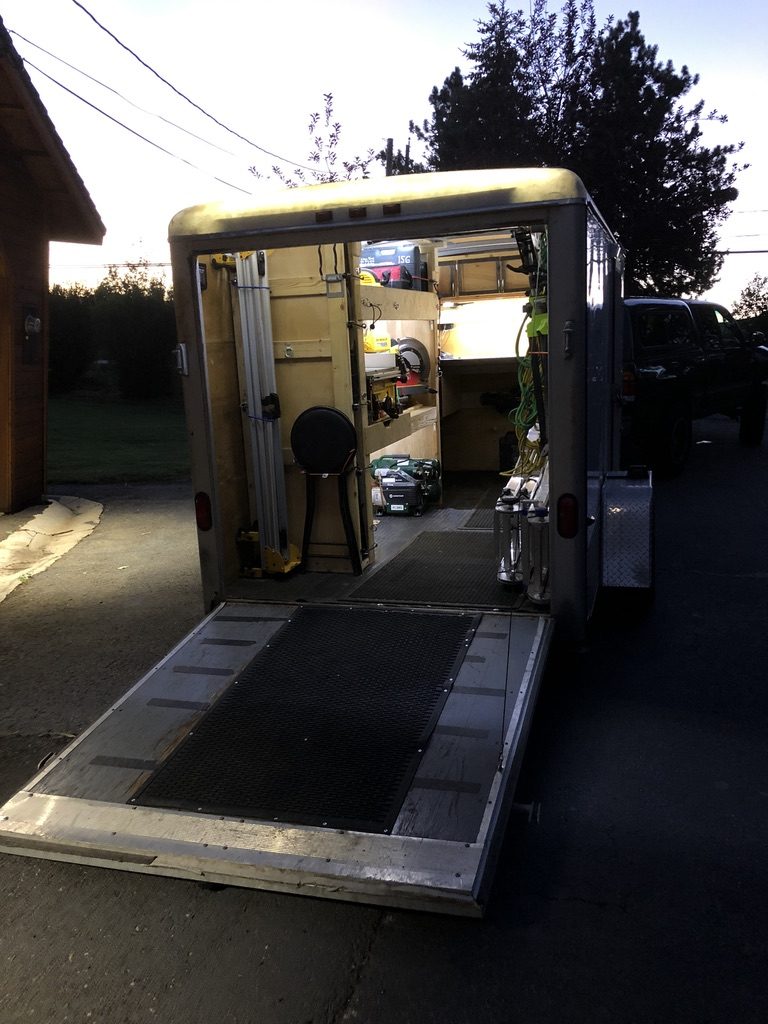

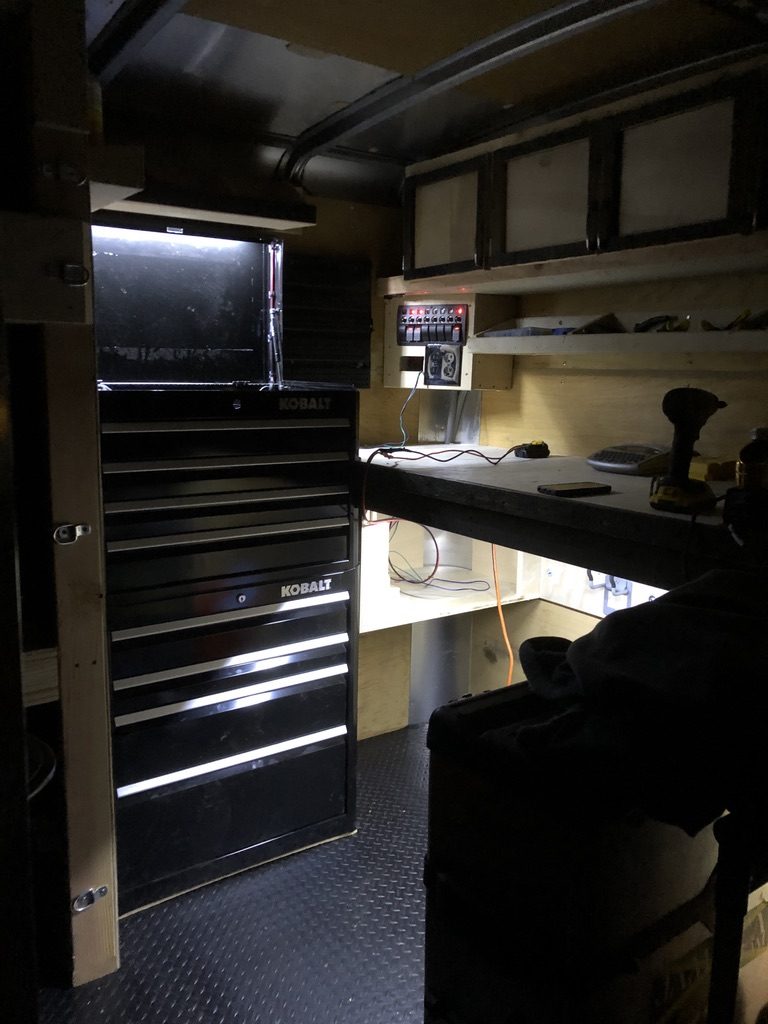

V1 reveal — three weeks of nights + weekends. Master switch up front lights the panel red, same muscle memory as a truck dashboard. Saws ready. Pegboard organized. Workbench at standing-cut height. Battery monitor reading 12.8V. The shop drives.

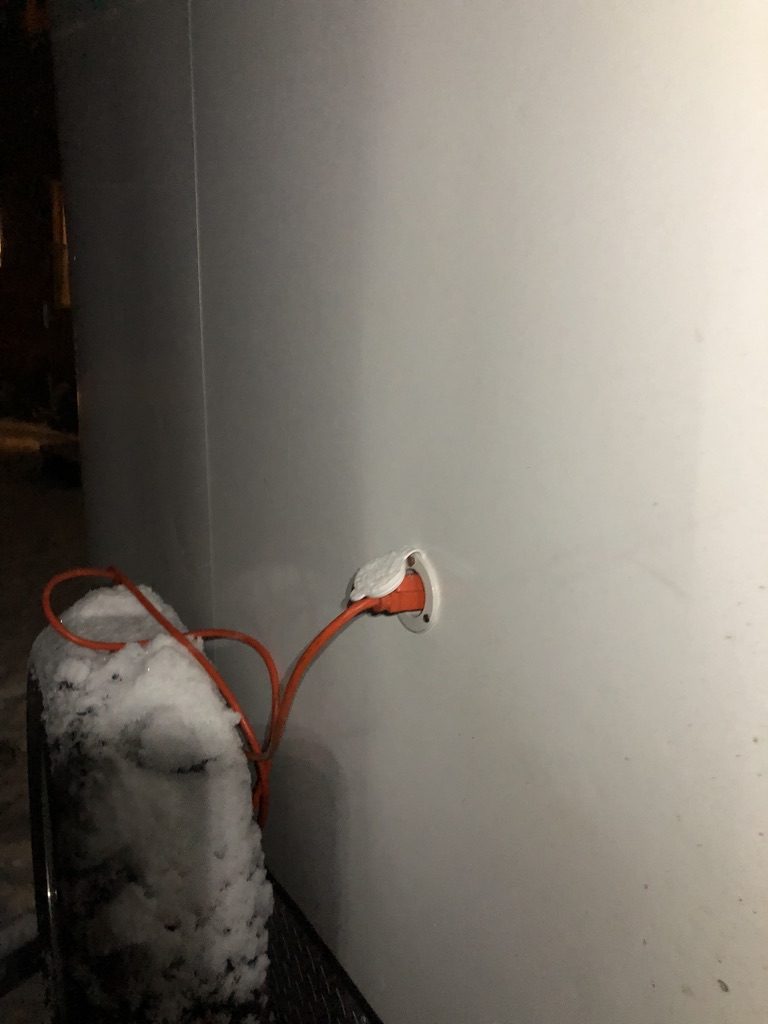

Hitch up in the morning. Drive to the site. Plug in shore power if it's there. Run off the battery if it isn't. Cut, route, drill, mount, sand. Pack up. Drive home. That's the design.

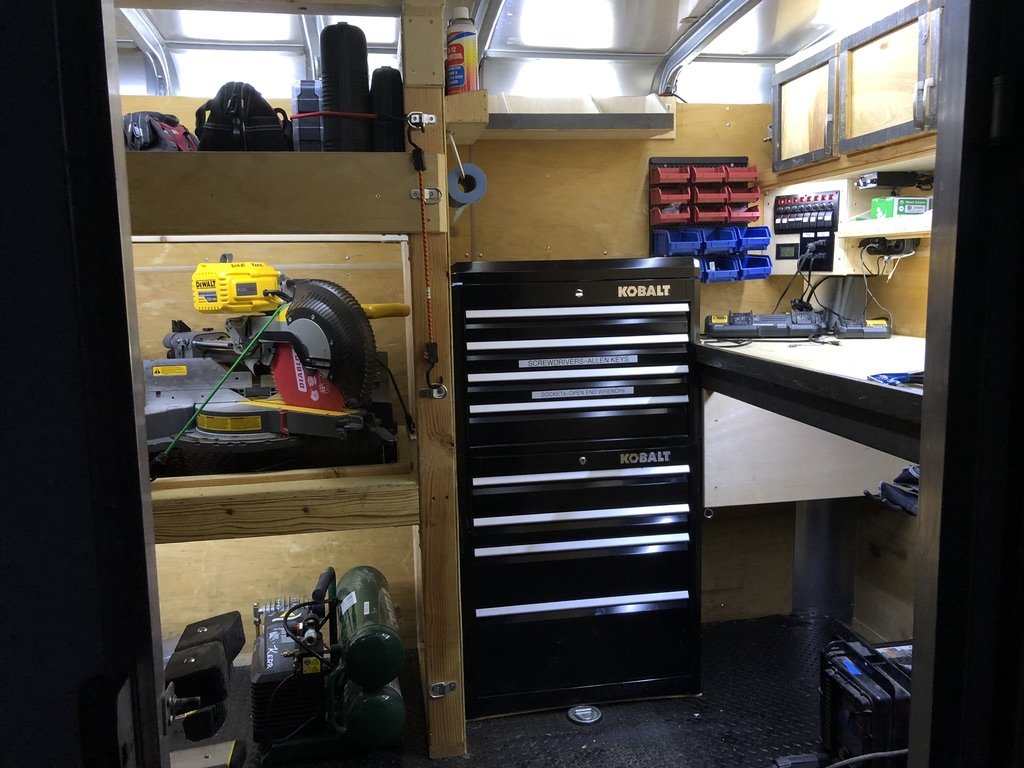

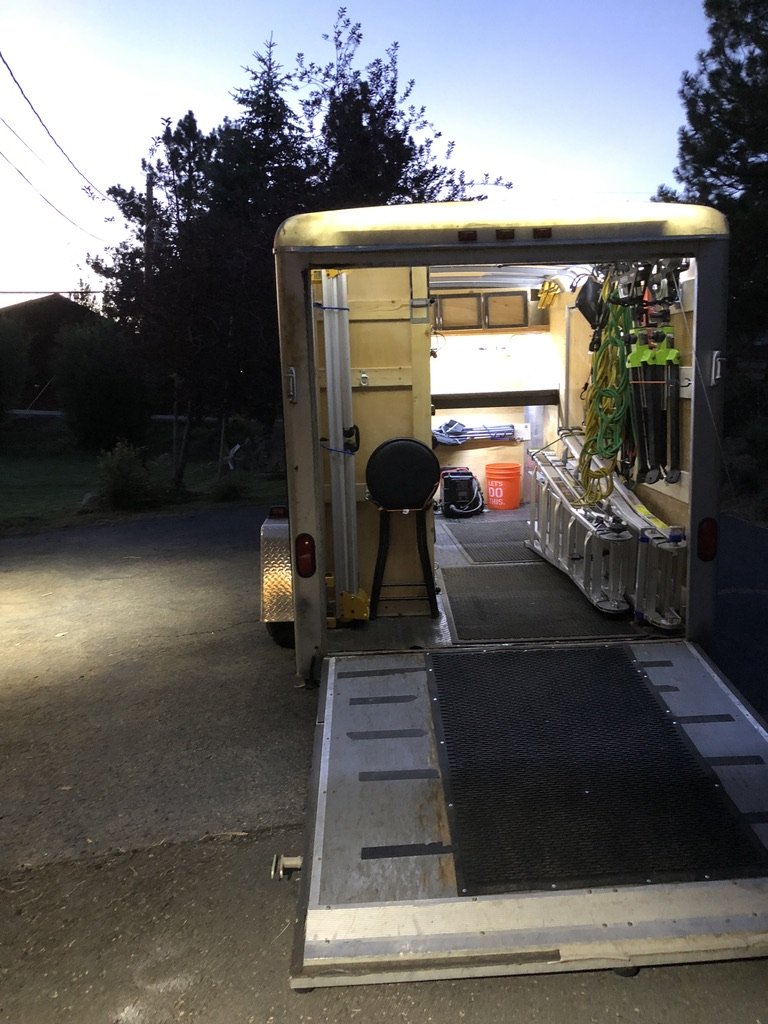

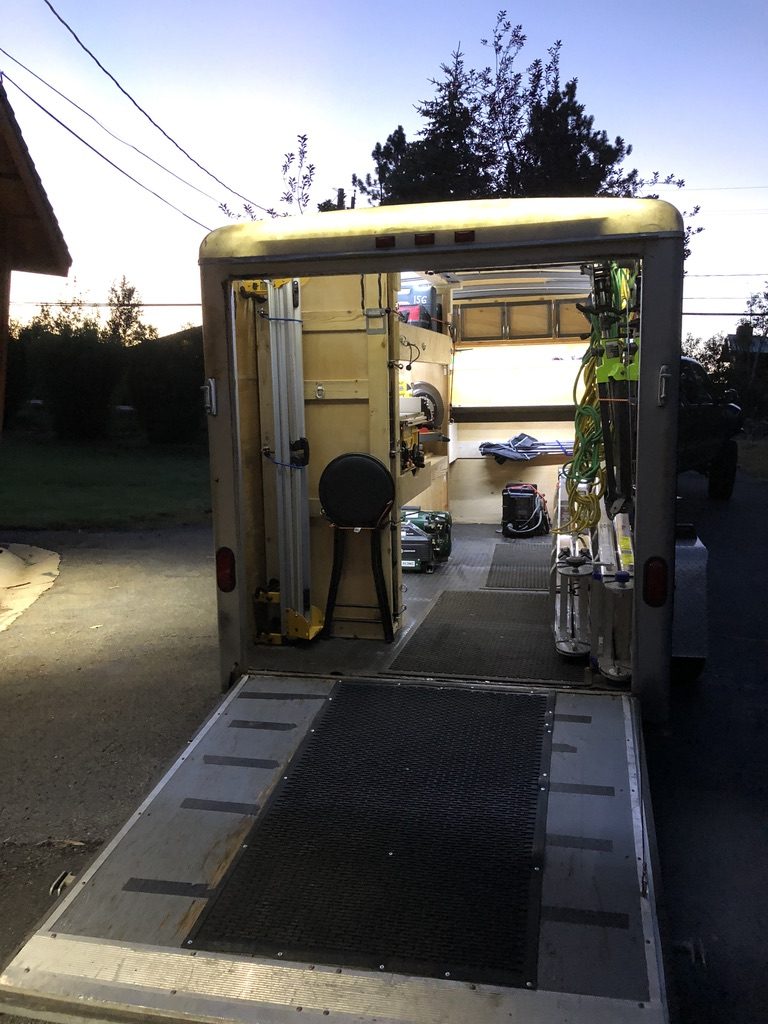

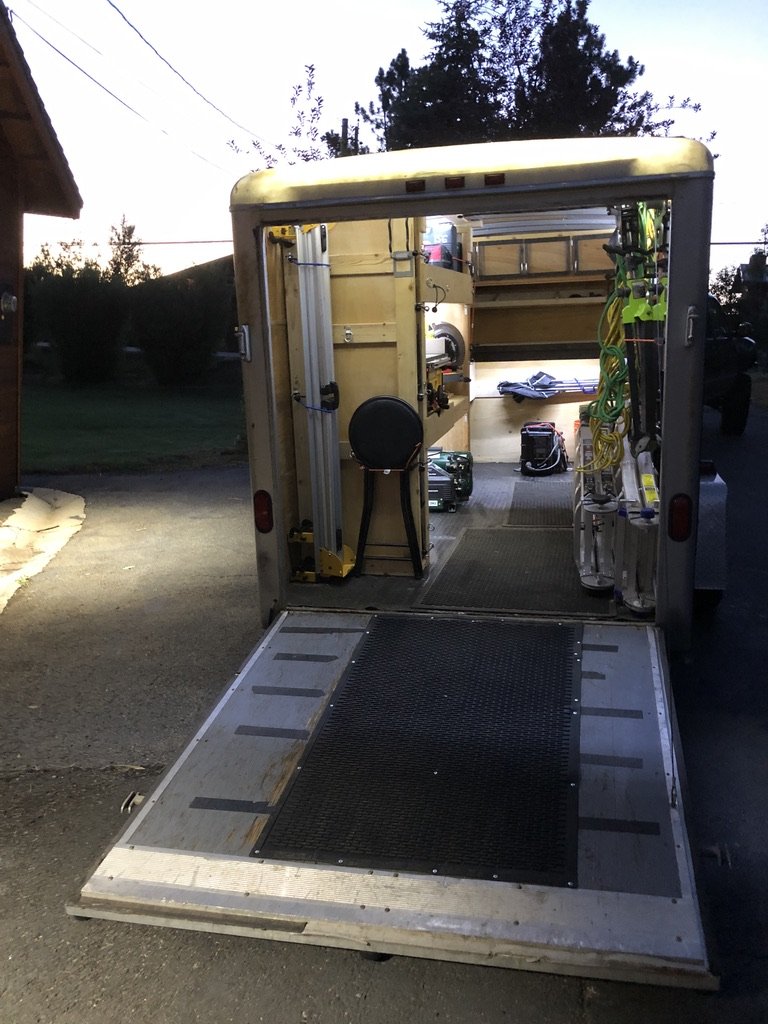

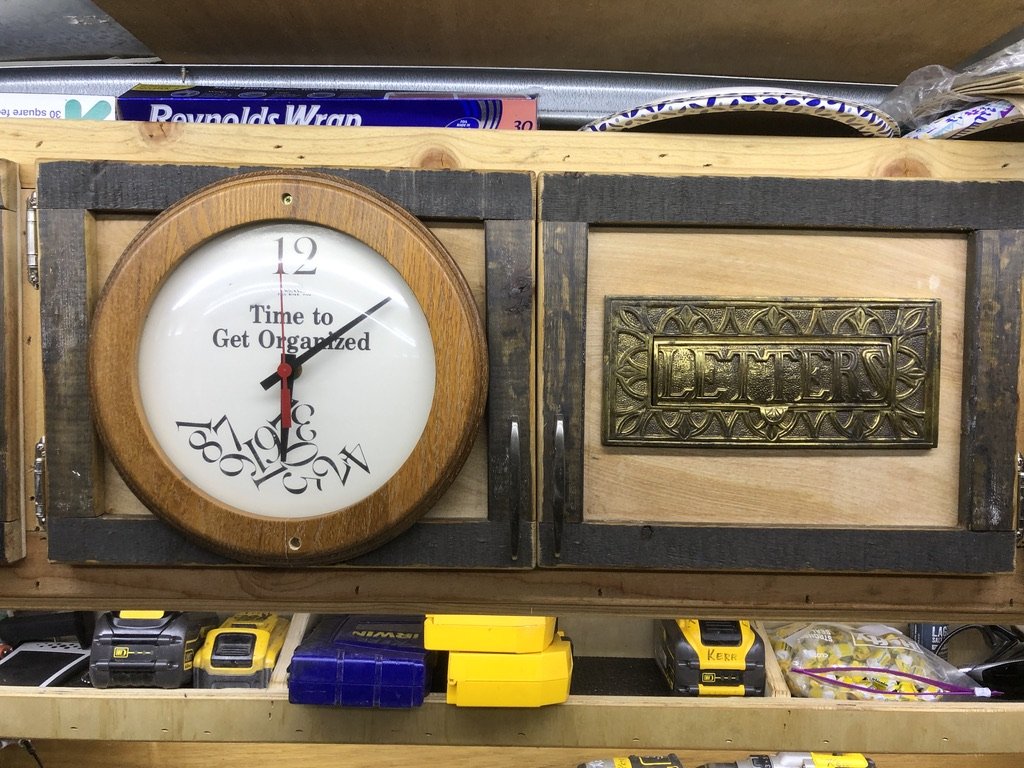

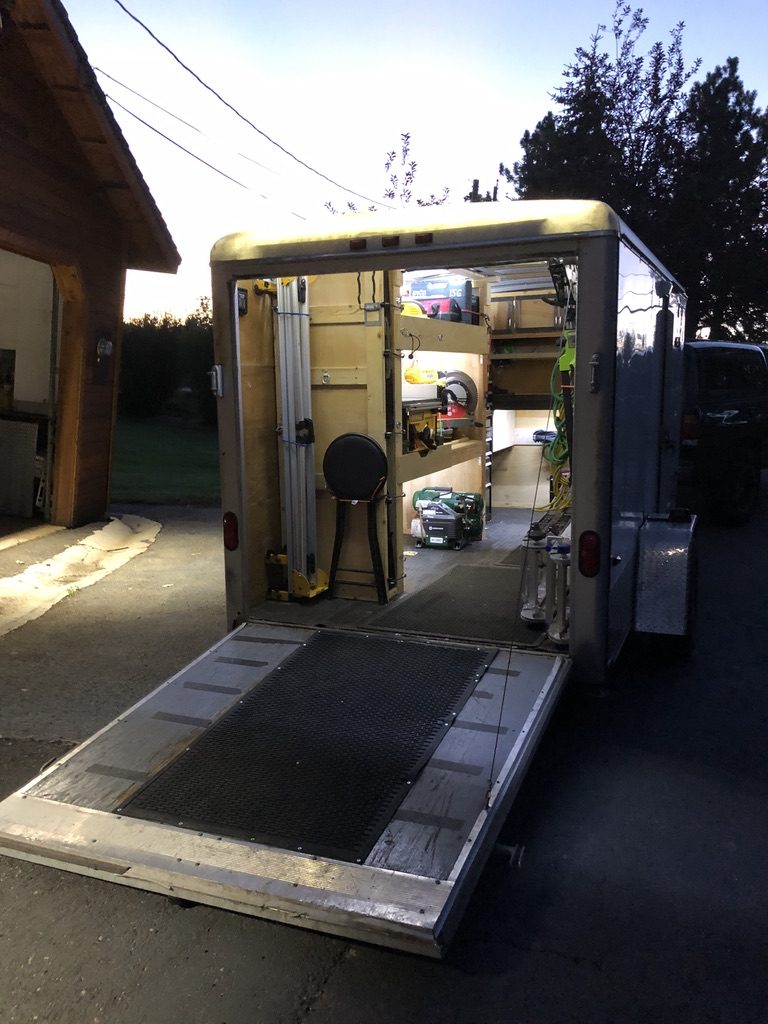

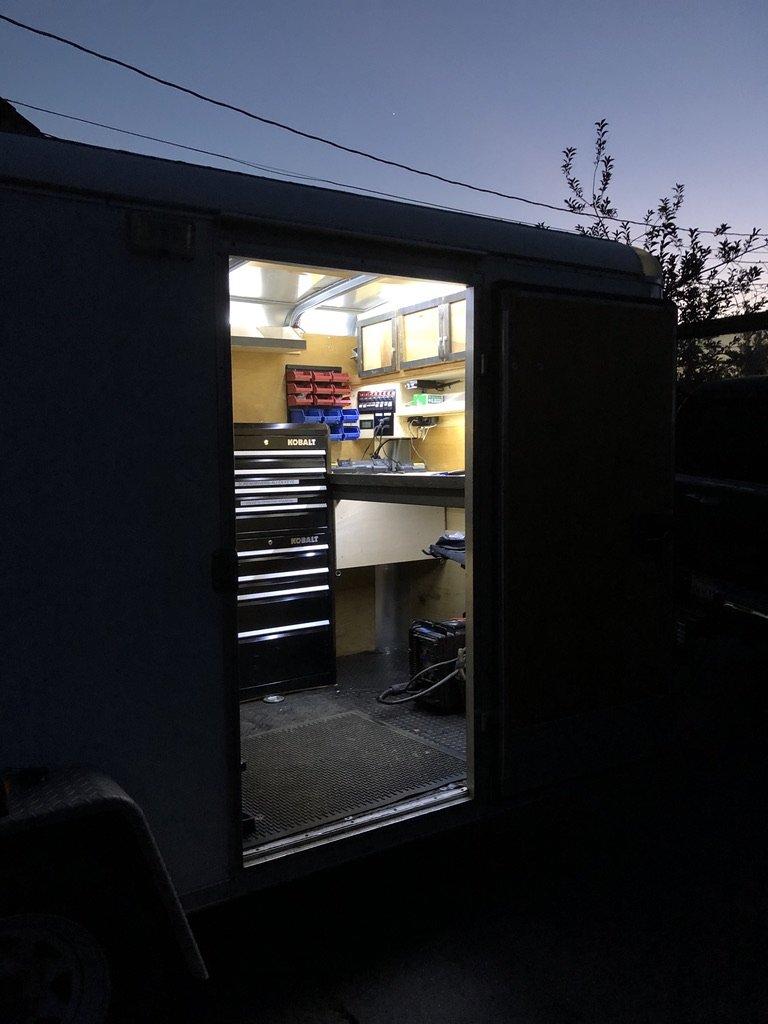

Summer 2018, six months in the field — and the trailer earned a V2. New wall art (Royal Way Co. pyramid), a clock above the workbench, repositioned drill chargers, refined drawer organization. The golden-hour reveal photo became the brand shot.

By December 2018 it was just part of the truck — the way crews carry tools is the same way pros carry their craft. Eight years on the road now. This thing has cut every two-by-four on every Ruppert site between 2018 and today.
